5-2 Adjusting/Debugging Online
5
5
92 SYSMAC CP1L Getting Started Guide
Transferring and Debugging Programs

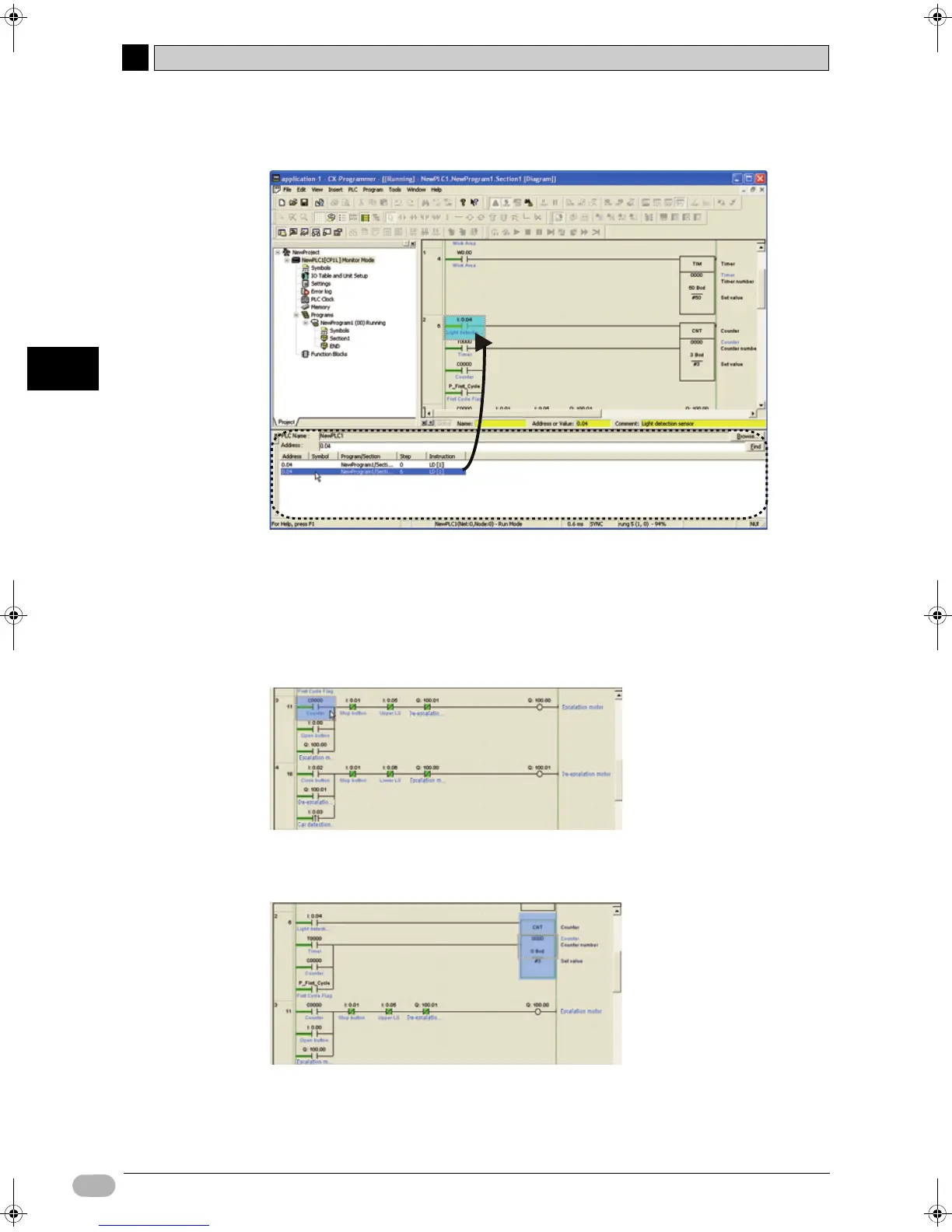

A list of used addresses will be displayed. Click an address to display the program
being used.
Ladder Backtracking
This function is used to backtrack the ladder, to determine why a contact does not
turn ON, for example.
1. Place the cursor on the contact being investigated.
2. Press the [Space] key.
The cursor will be moved to the source output for the contact.
W07E-EN-02+CP1L+GettingStartedGuide.book Seite 92 Montag, 15. September 2008 11:15 11
