Devices in a CompoNet Network Section 1-3
■ Flat Cable II
Note Although this product is called a Flat Connector Plug, it can be
used as a connector to connect a Master Unit, Slave Unit, or Re-
peater Unit.
Multi-wiring Connector

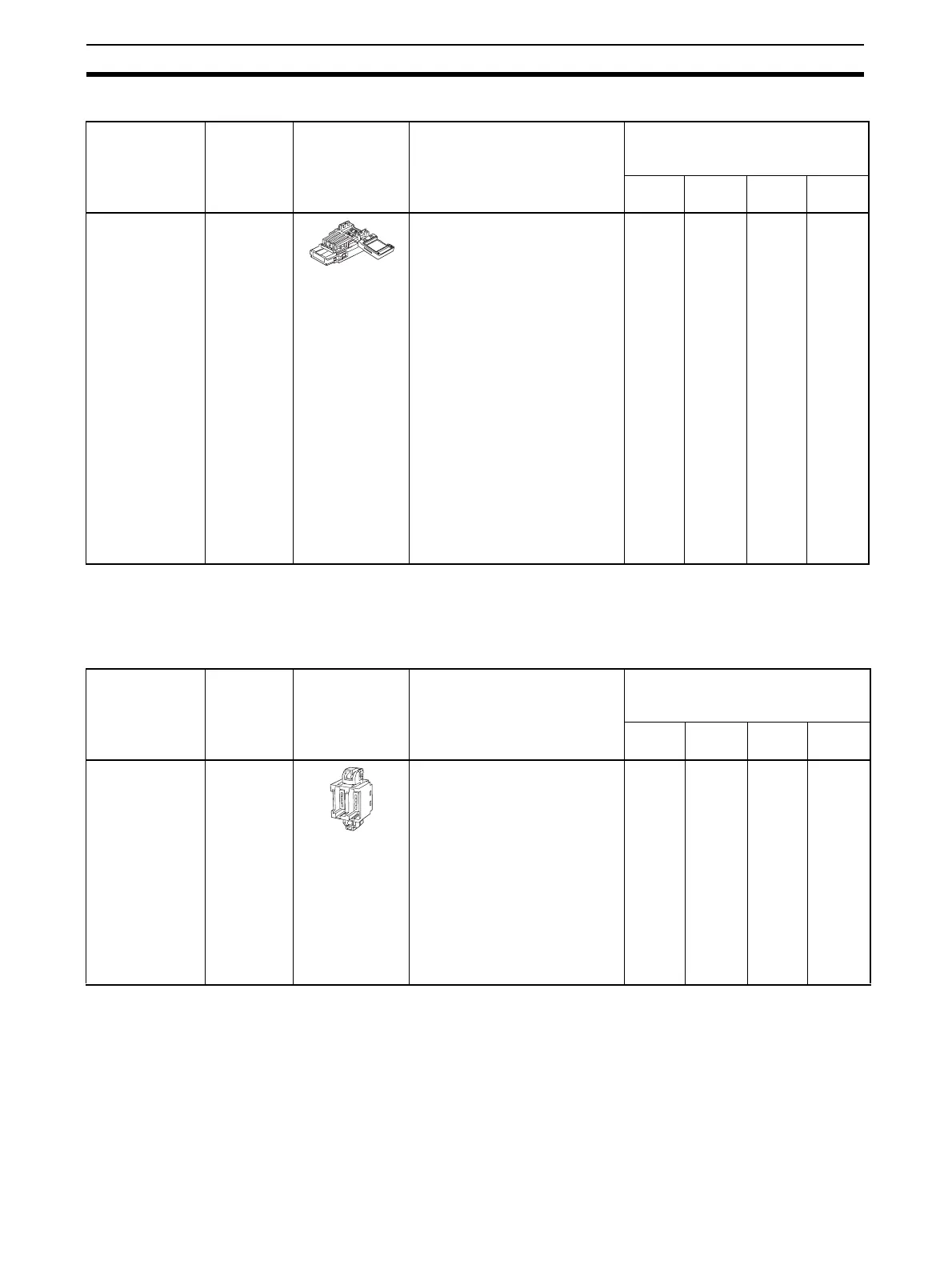

Name Model Appearance Application
Communications Cables
(Yes: Can be used.
No: Cannot be used.)
Round
Cable I
Round
Cable II
Flat
Cable I
Flat
Cable II
Flat Connector
Plug
DCN5-BR4 a. Use this Connector in a set
with a DCN5-TR4 Flat Con-
nector Socket for the following
applications.
• Extending the trunk line or a
sub-trunk line
• T-branching from the trunk line
or a sub-trunk line
• T-branching a sub-branch line
from a branch line
b. Use this Connector indepen-
dently for the following appli-
cations.
• Connecting Communications
Cable to a Master Unit, Word
Slave Unit, or Repeater Unit
• Connecting Communications
Cable to connectors for wiring
Note Use for connecting IP54
Bit Slave Units.
No No No Yes
Name Model Appearance Application
Communications Cables
(Yes: Can be used.
No: Cannot be used.)
Round
Cable I
Round
Cable II
Flat
Cable I
Flat
Cable II
Multi-wiring Con-
nector
DCN4-MD4 This Connector connects two
Flat Connector Plugs to two
ports.
Use Multi-wiring Connectors for
multi-drop wiring of Master
Units, Slave Units, or Repeater
Units to trunk lines, sub-trunk
lines, or branch lines.
Note When the baud rate is 4
Mbps (mainly when Flat
Cable is used), use this
Connector to connect to
Word Slave Units only.
No No Yes No
