50
CompoNet Network Wiring Section 3-2

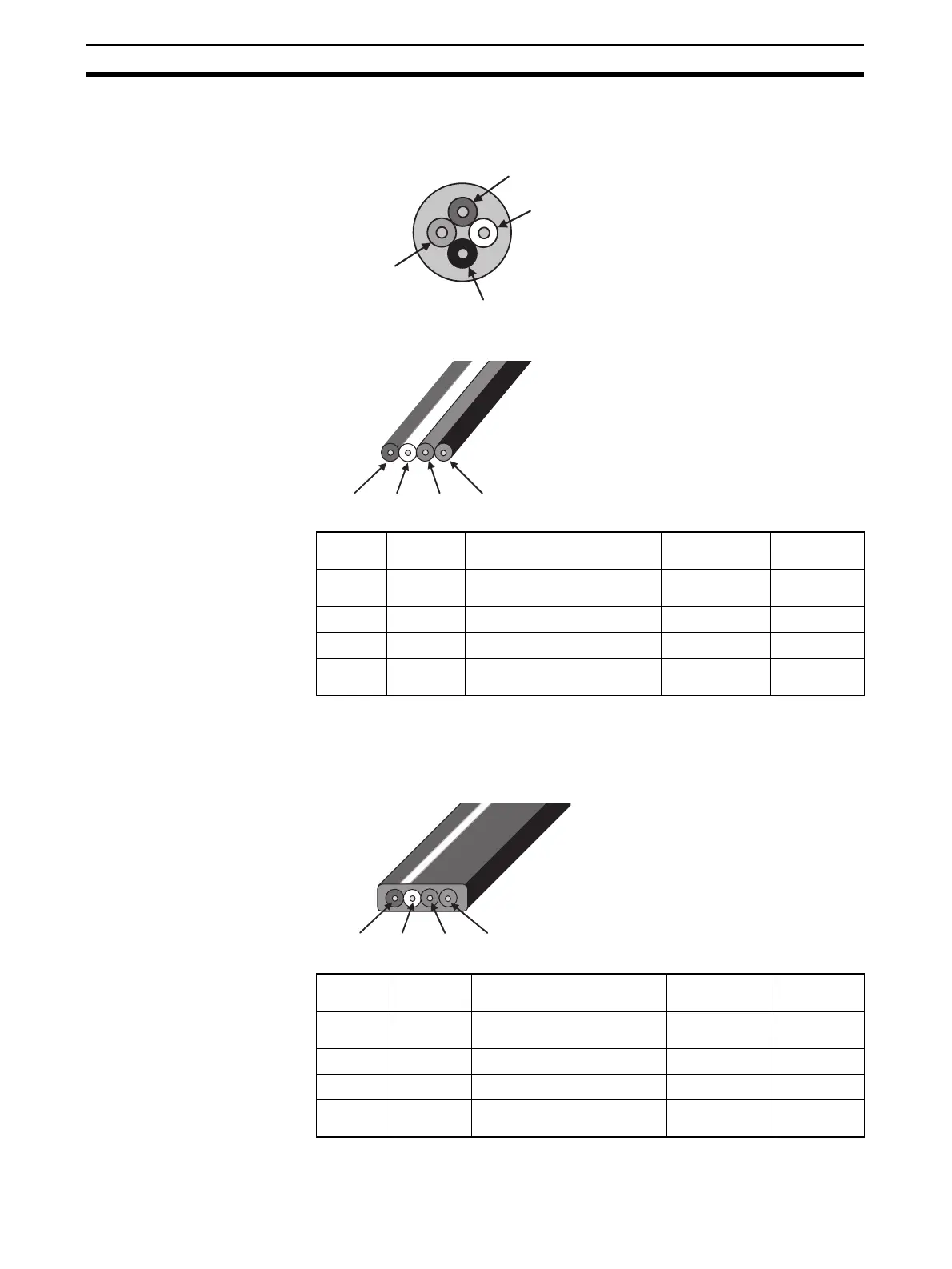

Round Cable II Use a commercially available VCTF cable with four 0.75-mm
2
conductors (JIS
C3306) that meets CompoNet specifications. Ask the cable manufacturer for
products applicable to CompoNet.
DCA4-4F10 Flat Cable I
Models other than the DCA4-4F10 can also be used as long as they conform
to CompoNet specifications. Ask the cable manufacturer for applicable prod-
ucts.
DCA5-4F10 Flat Cable II
Red: BS+
White: BDH
Black: BS−
Green or Blue: BDL
Conduc-
tor No.
Insula-
tion color
Application Nominal
cross-section
Allowable
current (A)
1 Red BS+ (communications power
supply positive side)
0.75 mm
2
5 max.
2 White BDH (signal high)
0.5 mm
2
---
3 Blue BDL (signal low)
0.5 mm
2
---
4BlackBS− (communications power
supply negative side)
0.75 mm
2
5 max.
Black: BS−
Red: BS+
White: BDH
Blue: BDL
Conduc-
tor No.
Insulation
color
Application Nominal
cross-section
Allowable
current (A)
1 Red BS+ (communications power
supply positive side)
0.75 mm
2
5 max.
2 White BDH (signal high)
0.5 mm
2
---
3 Blue BDL (signal low)
0.5 mm
2
---
4BlackBS− (communications power
supply negative side)
0.75 mm
2
5 max.
Black: BS−
Red: BS+
White: BDH
Blue: BDL
