Connecting Cables Section 4-2
■ Connecting Procedure
Connect the cable wires to the Terminating Resistor, and tighten the screws.
The Terminating Resistor has no polarity. Either wire can be connected to
either terminal regardless of their colors.
Note Attach a M3 crimp terminal to the cable wire before you connect the wire to a
Terminal Resistor.
Round Cable II A DCN4-TR4 Flat Connector Socket is mounted on the Round Cable II cable.
Then a DCN4-TM4 Terminating Resistor is attached to the Socket.
■ Mounting Procedure
Press the Terminating Resistor into the Socket until it clicks into place.
Note To remove a Terminal Resistor Plug which has been attached, hold the
latches on both sides of the Resistor, and pull it out.
Flat Cable I A DCN4-TR4 Flat Connector Socket is mounted at the end of the communica-
tions cable. Then a DCN4-TM4 Terminating Resistor is attached to the
Socket.
■ Mounting Procedure
Press the Terminating Resistor into the Socket until it clicks into place.

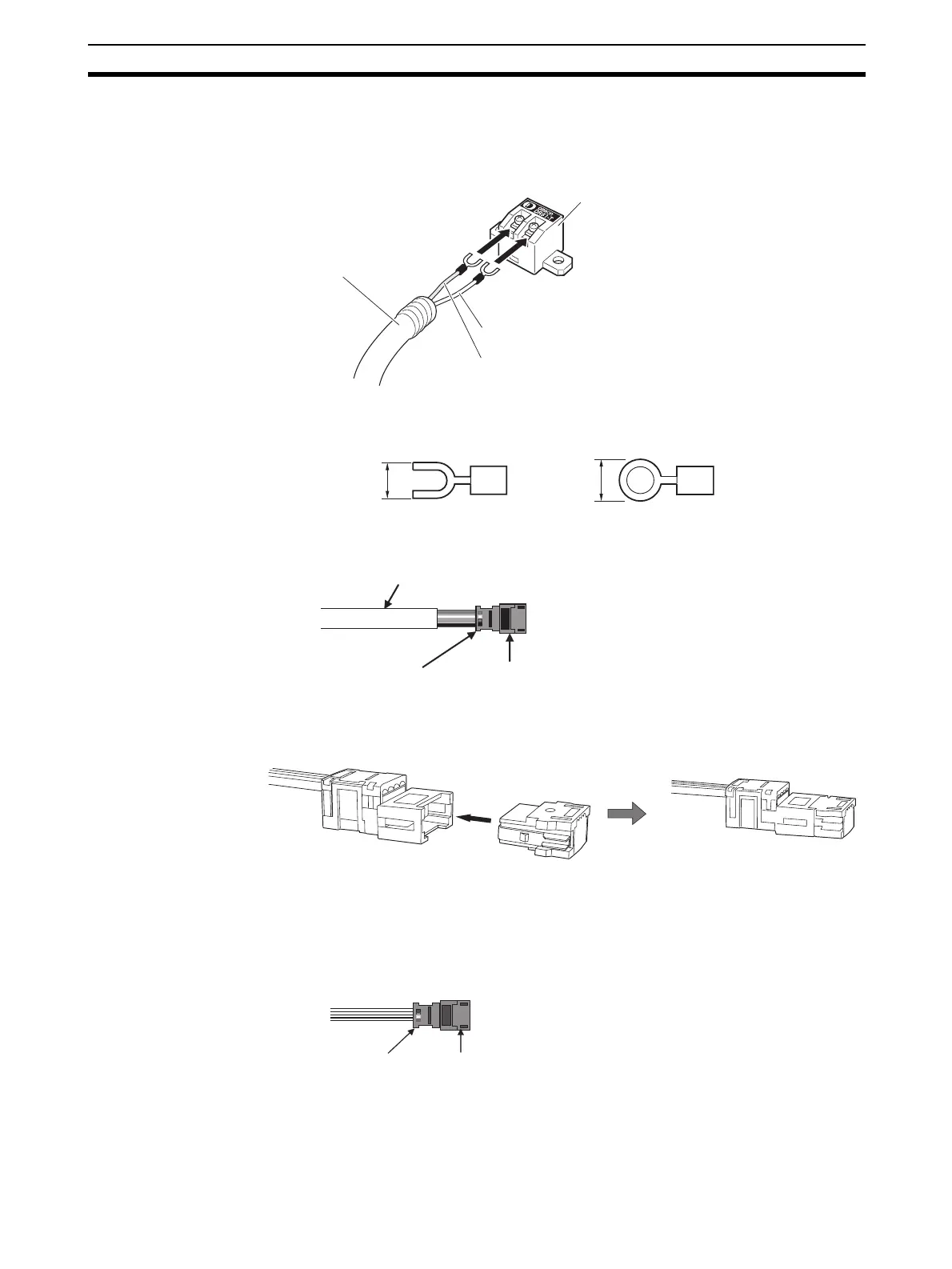

BDH (black) or BDL (white)
BDL (white) or BDH (black)
Round cable I
Terminating Resisto
r
6.0 mm max.
6.0 mm max.
DCN4-TM4
Terminating Resistor
DCN4-TR4
Flat Connector Socket
Round Cable II
Terminating Resisto
r
Flat Connector Socket
