Connecting Cables Section 4-2
Note To remove a Terminal Resistor which has been attached, hold the latches on
both sides of the Resistor, and pull it out.
When a Slave Unit or a Repeater Unit has a multidrop connection, the Termi-
nal Resistor can be directly attached to the Multidrop Connector that is
mounted on the Unit. This is only applicable with Flat Cable I cables.
Flat Cable II A DCN4-TR4 Flat Connector Socket is mounted on the communications
cable. Then a DCN4-TM4 Terminating Resistor is attached to the Socket.
■ Mounting Procedure
Press the Terminating Resistor into the Socket until it clicks into place.
Note To remove a Terminal Resistor which has been attached, hold the latches on
both sides of the Resistor, and pull it out.

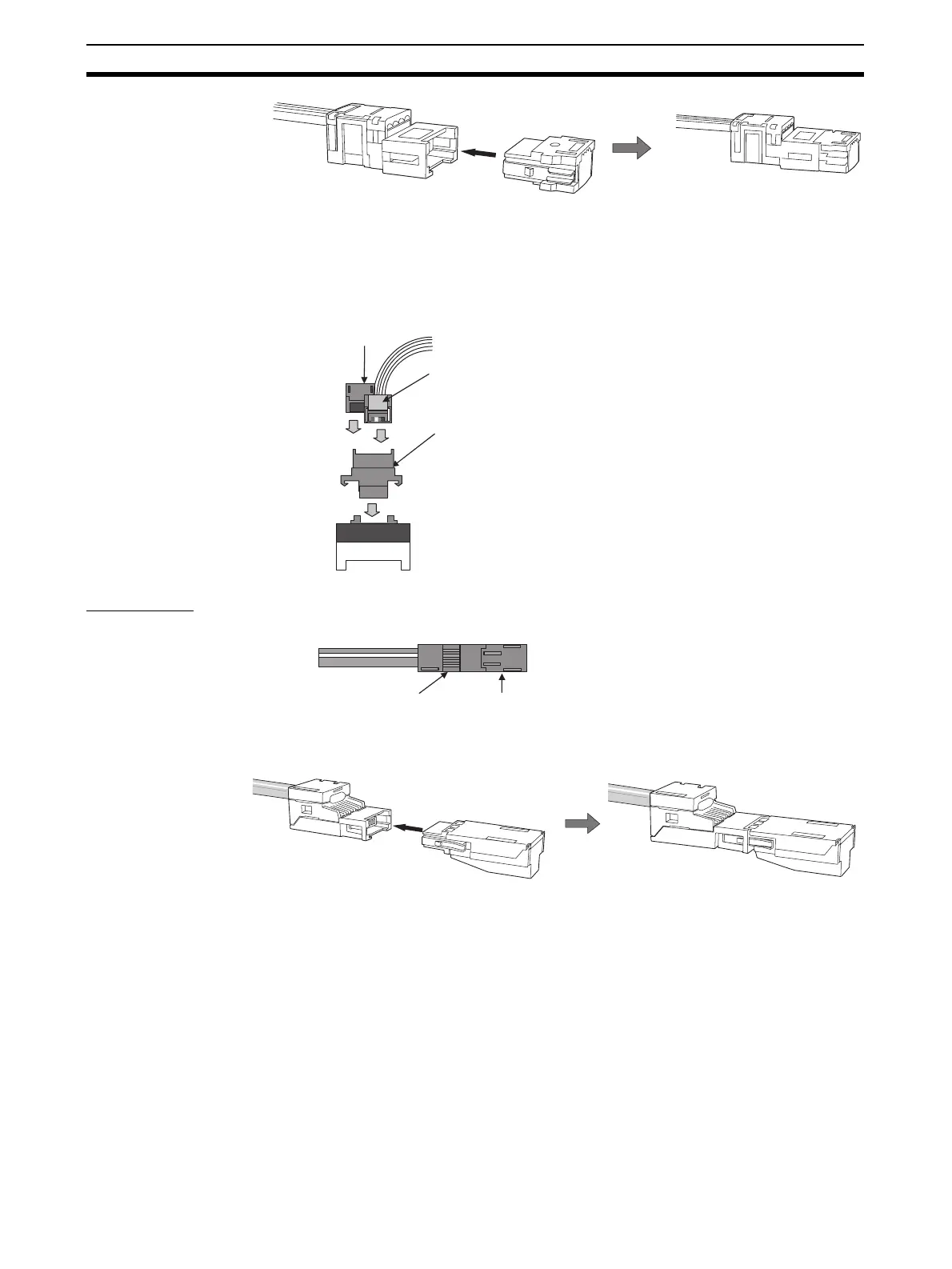

Multidrop Connecto
Flat Connector Plug
Terminal Resistor
Slave Unit or
Repeater Unit
Flat Connector Socket
Terminating Resistor
