2 Preparations
2 - 16
Digital Temperature Controllers (Simple Type) User’s Manual (H211)

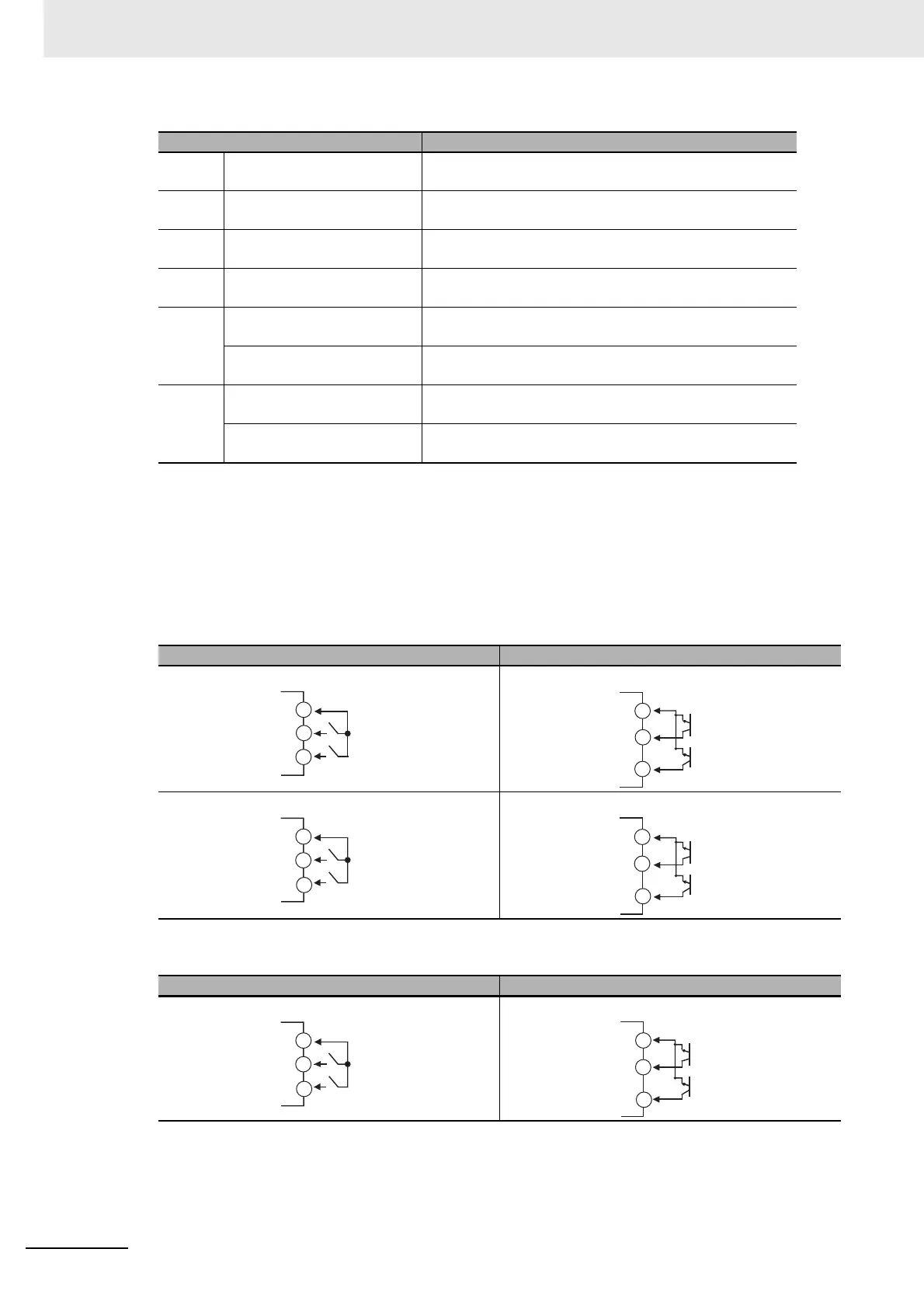

z Auxiliary Outputs 1 and 2
When heating/cooling control is used on the E5CC/E5EC, auxiliary output 2 is the control output for cooling.
z Event Inputs
E5CC/E5EC models with an option number of 801, 804, 808, or 810 have event inputs.
E5CC
E5EC
Output type Specification
RX Relay output SPST-NO, 250 VAC, 5 A (resistive load),
Electrical durability: 100,000 operations
QX Voltage output (for driving
SSR)
PNP, 12 VDC ±20%, 40 mA (with short-circuit protection)
CX Current output 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max.,
Resolution: Approx. 10,000
RR 2 relay outputs SPST-NO, 250 VAC, 5 A (resistive load),
Electrical durability: 100,000 operations
QR Voltage output (for driving
SSRs) (control output 1)
PNP, 12 VDC ±20%, 21 mA (with short-circuit protection)
Relay output (control output
2)
SPST-NO, 250 VAC, 5 A (resistive load),
Electrical durability: 100,000 operations
CR Current output 4 to 20 or 0 to 20 mA DC, Load: 500 Ω max.,
Resolution: Approx. 10,000
Relay output SPST-NO, 250 VAC, 5 A (resistive load),
Electrical durability: 100,000 operations
Contact inputs Non-contact inputs
Option number: 801
Option number: 804
Contact inputs Non-contact inputs
Option number: 804, 808
EV1
EV2
15
13
14
EV1
+
+
EV2
−
15
13
14
EV3
EV4
18
16
17
EV3
EV4
+
+
−
18
16
17
EV1
EV2
18
16
17
EV1
EV2
+
+
−
18
16
17

Omron E5CC-800 Specifications

General

Communication	RS-485 (optional)
Protection Rating	IP66 (front panel)
Input Type	Thermocouple, RTD, analog input
Output Type	Relay, voltage, current
Supply Voltage	100-240 VAC, 24 VAC/VDC
Size	48 x 48 mm
Control Output	Relay, voltage, current
Ambient Operating Temperature	55 °C
Control Method	ON/OFF, 2-PID
Ambient Operating Humidity	35 to 85% RH (non-condensing)
Mounting	Panel mount
