Omron E5CN User Manual

212
Advanced Function Setting Level Section 5-8
■ Related Parameters
PV stable band (advanced function setting level): Page 212

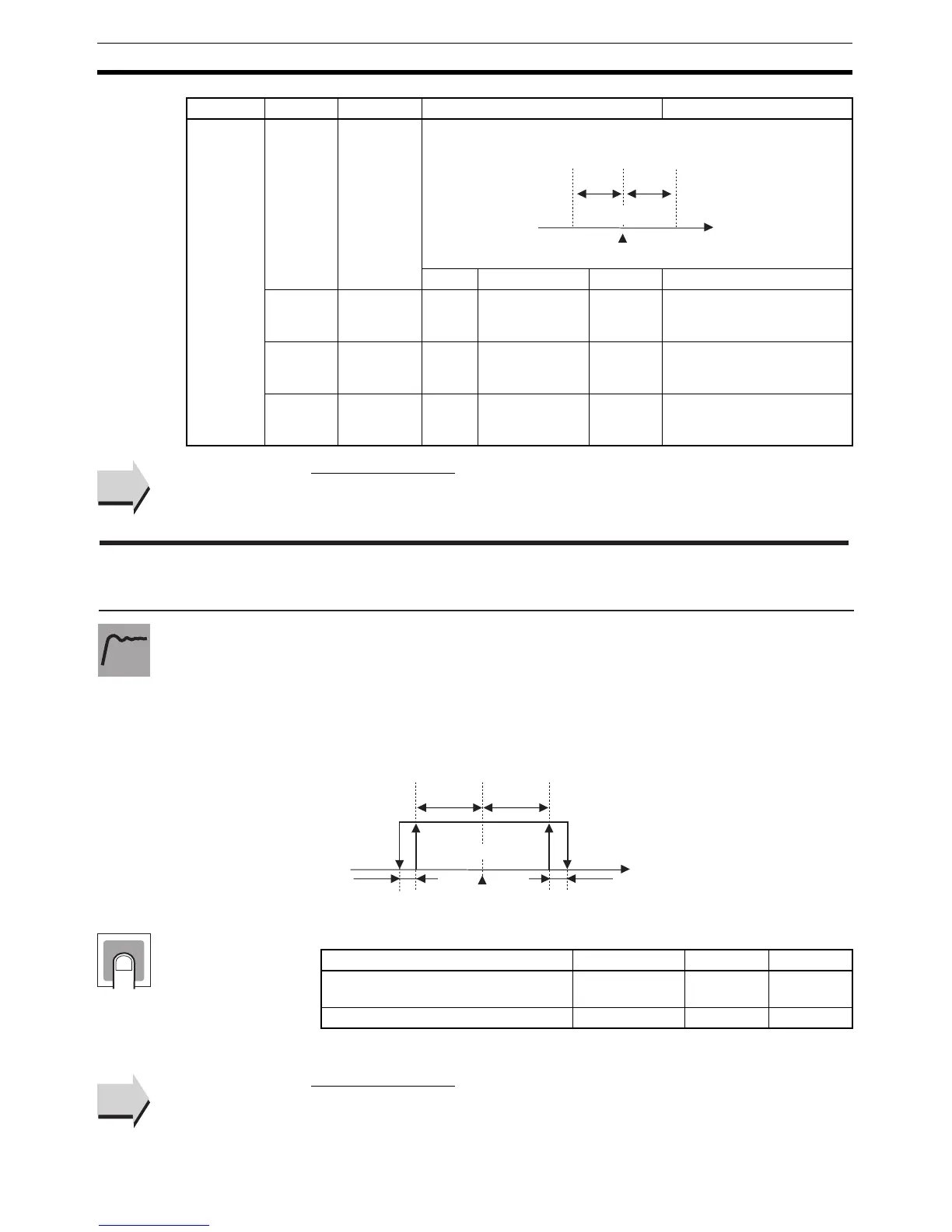

This parameter sets the PV stable band width within which the PV display
color is changed.
• When the mode to link to the PV stable band is selected with the PV
Change Color parameter, the PV display color will change according to
whether the present value (PV) is lower than, within, or higher than the PV
stable band, as shown in the following figure.
• There is a hysteresis of 0.2 (
°C or °F).
Note Set “None” as the unit for Controllers with Analog Inputs.
■ Related Parameters
PV change color (advanced function setting level): Page 211
Linked to
PV stable
band
Low PV stable band High Application example
r-g.r Red to
Green to
Red
Red Green Red To display stable status
g-o.r Green to
Orange to
Red
Green Orange Red To display stable status
o-g.r Orange to
Green to
Red
Orange Green Red To display stable status
Mode Setting Function PV change color Application example
PV
SP
Within
PV stable
band
Within
PV stable
band
Low High
Within
See
See
pv-b PV Stable Band
Models Setting range Unit Default
Controllers with Thermocouple/Resis-
tance Thermometer Universal Inputs
0.1 to 999.9 °C or °F
(See note.)
5.0
Controllers with Analog Inputs 0.01 to 99.99 %FS 5.00
Function
PV
0.2 (°C or °F)0.2 (°C or °F)
SP
PV stable
band
PV stable
band
Low High
When analog inputs are used: 0.02 (%FS)
Within
Setting
See
See

Omron E5CN Specifications

General

Communication	RS-485 (optional)
Mounting	Panel Mount
Control Method	ON/OFF
Input Type	Thermocouple, RTD
Supply Voltage	100 to 240 VAC
Output Type	Relay, Voltage (for driving SSR), Current
Display Type	7-segment LED
Size	48 x 48 mm
Control Output	Relay, Voltage (for driving SSR), Current
Alarm Output	1 or 2 outputs
Dimensions	48 x 48 x 78 mm
Ambient Operating Temperature	-10 to 55°C
Protection Rating	IP66
