Chapter2 Description of Functions
F3SJ-E/B
User’s Manual
System Configuration and Functions
Auxiliary Output Function

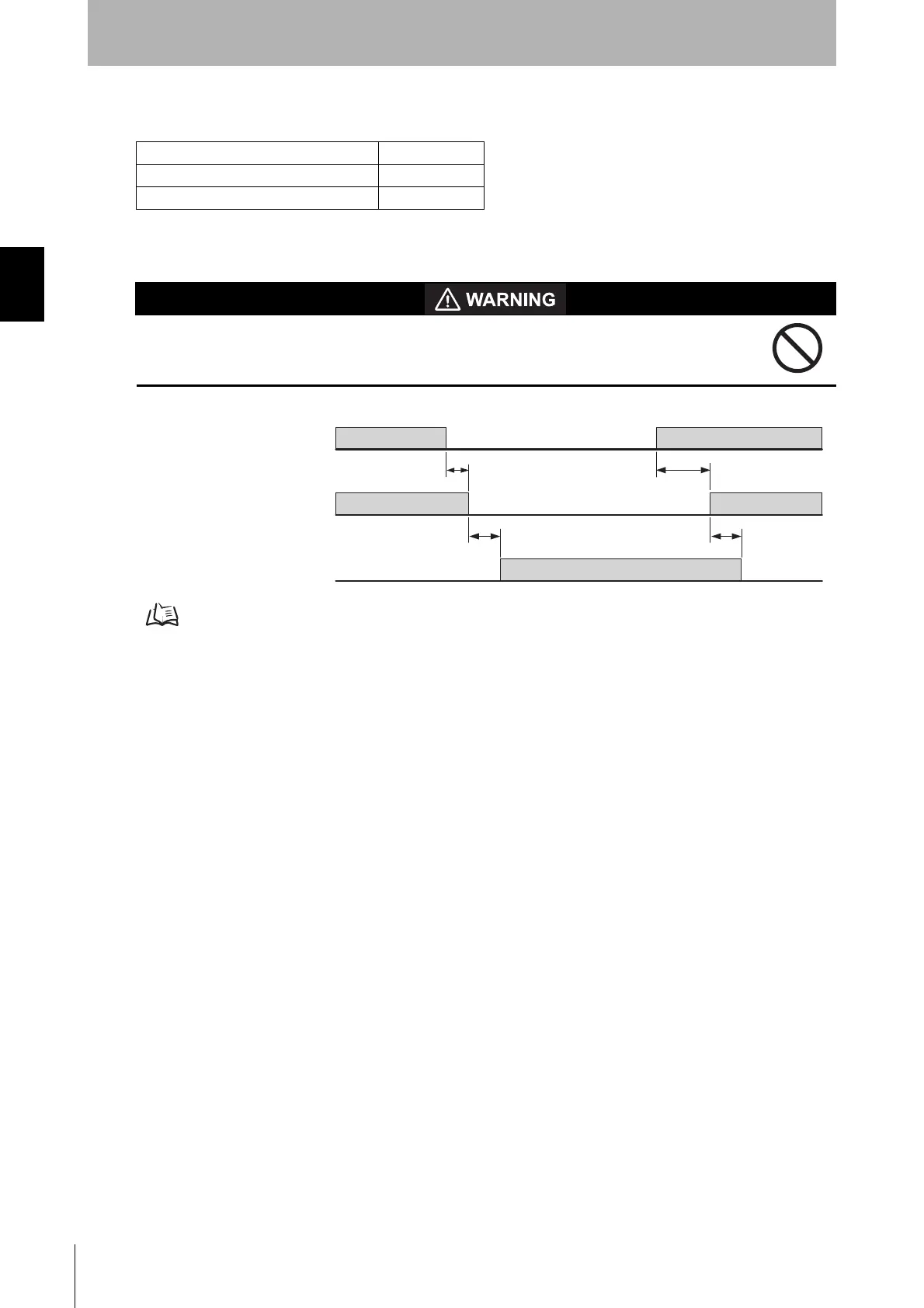

The auxiliary output is used to monitor the status of the F3SJ-B. This output can be connected to a
device such as programmable controller.
Do not use the auxiliary output for safety applications.
Human body may not be detected when F3SJ-B fails, resulting in serious injury.
For details on operations when muting function is used, see the timing chart on page 24 .
Easy Type
Basic Type (basic system)
Basic Type (muting system)
Unblocked
/Blocked
Unblocked
Blocked
Safety output
Auxiliary output
ON
OFF
ON
OFF
15 ms
30 ms max. 30 ms max.
70 ms
