Chapter4 Wiring Examples
F3SJ-E/B
User’s Manual
Input/Output Circuit and Applications

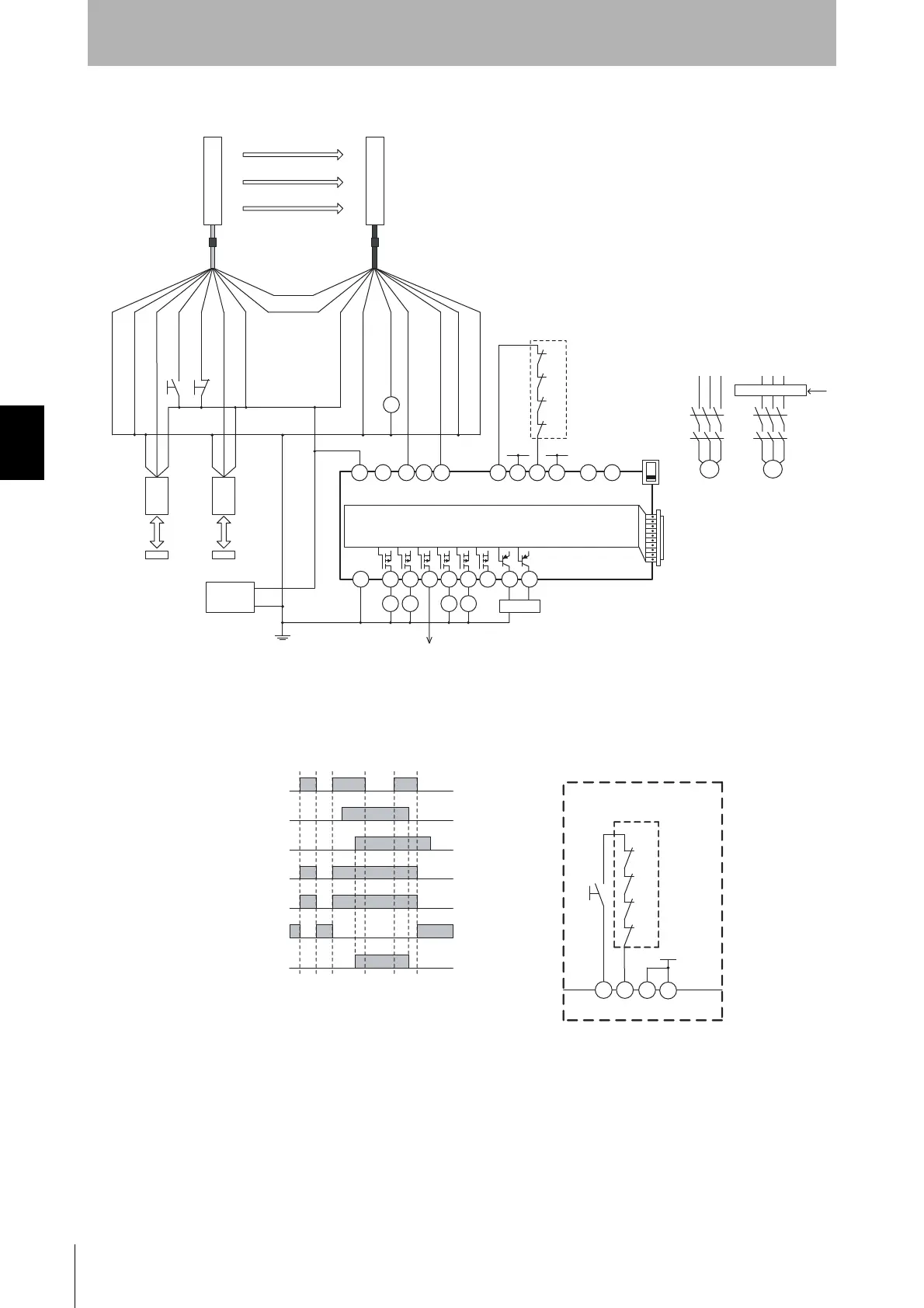

 Connecting a F3SJ-B to Two Muting Sensors
F39-JDA-L
F39-JDA-D
A1
A2
S14 S24
KM1 KM2
S34 S44 S54
KM3 KM4
L1 X1 X2
T11
KM1
KM2
KM3
KM4
+24 V +24 V
T12 T21 T22 T31 T32 T33 Y1 T41 T42
M1 M2
PLC, etc.
Motor controller
Motor controller
(operation command)
Open
Model G9SX-AD322-T15
Open Open Open
OFF
AND
KM1
KM2
KM3
S34
KM4
Control circuit
S1 : External test switch (connect to 0 V if a switch is not required)
S2 : Lockout reset switch (connect to 24 V if a switch is not required)
KM1 to KM4 : Safety relay with force-guided contact (G7SA) or magnetic contactor
M1, M2 : 3-phase motor
ML : External indicator
PLC : Programmable controller
(Used for monitoring -- not related to safety system)
- F3SJ-B settings
- Muting system
- Does not use external device monitoring function
- G9SX-AD322-T15 settings
- Auto reset mode
- Using feedback loop
S1
Muting
sensor
(PNP output)
Reflector
S2
Muting input 1 (White)
+24 VDC
0 V
Power
Supply
Muting input 2 (Red)
+24 V
T32 T33
Y1
KM3
KM4
T31
KM1
KM2
S3
Wiring for manual reset mode
Feedback loop
S3 : Reset switch
ML
Unblocked
Blocked
Muting input 1
Muting input 2
Safety output
KM1, KM2, KM3, KM4 N.O. contact
KM1, KM2, KM3, KM4 N.C. contact
External indicator
Emitter
Receiver
Communication
line (+) (Gray)
Communication
line (-) (Pink)
Shield
*1 *1 *2
0 V (Blue)
Test input (Black)
Reset input (Yellow)
+24 V (Brown)
+24 V (Brown)
External device
monitoring input (Red)
Auxiliary output
(Yellow)
Safety output 1
(Black)
Safety output 2
(White)
0 V (Blue)
Shield
Feedback loop
*1. Also used for override input.
*2. Under muting system, connect to 0 V as the external device monitoring cannot be used.
