F3SJ-E/B
User’s Manual
Chapter3 Dimensions
Wiring/Installation
E

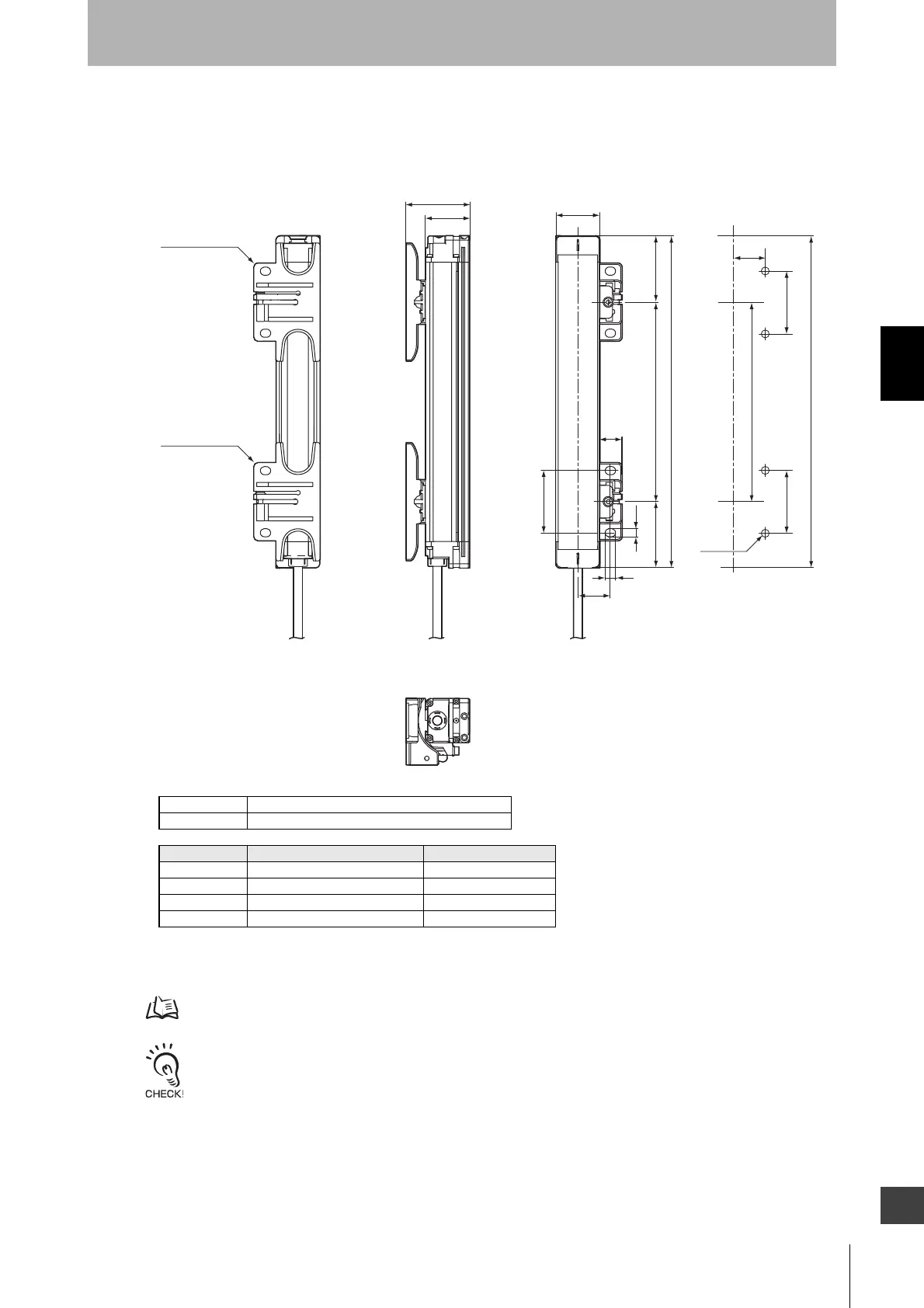

 When Using Intermediate Brackets Only (Free-Location Mounting)
 Backside mounting
Bracket mounting procedure (Mounting) p.67
The alignment range of the Intermediate Bracket must be ±30°.
[ Unit : mm ]
15
22
7
F
42
5.5
275 max 275 max
C (Protective height)
43
30 30
Intermediate Bracket
(F39-LJB2)
Intermediate Bracket
(F39-LJB2)
22
42
4-M5
42
F
C
Dimensions C and F
Dimensions F
C 4-digit number of the type name (protective height)
F Depends on the protective height. See the table below.
Protective height Number of Intermediate Brackets Dimensions F
0185 to 0225 1 -
0305 to 1105 2 555 mm max.
1185 to 1585 3 555 mm max.
1665 to 2065 4 555 mm max.
