Chapter2 Description of Functions
System Configuration and Functions
E
 Override end conditions
When either of the following conditions is satisfied, the function is released.
•When 60 seconds has elapsed under the override status
•All muting sensors are turned OFF
•When the reset input is turns from OFF to ON and/or the test input turns from ON to OFF
Override state can be also released when the sensor enters lockout.

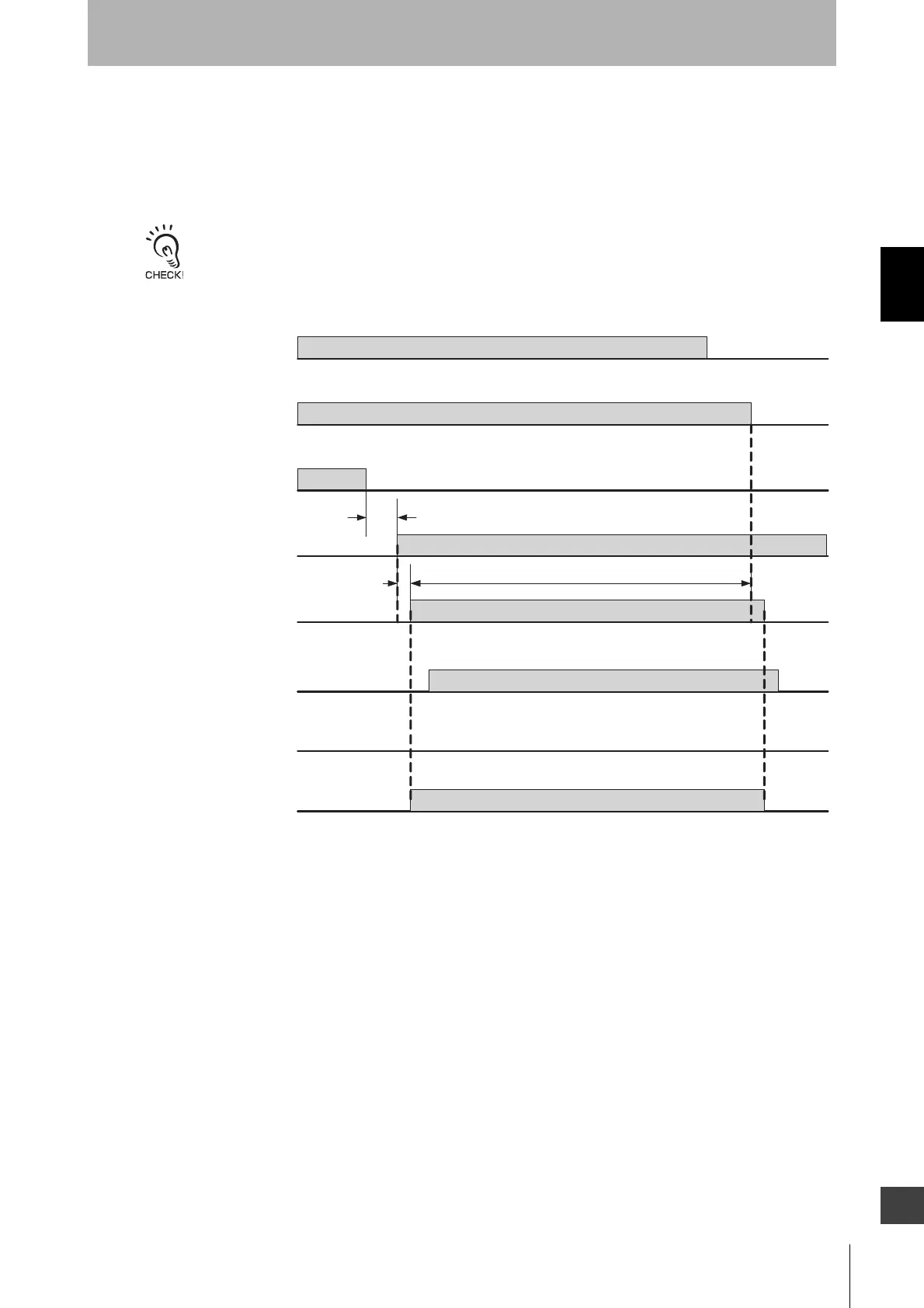

<Timing chart>
Muting input 2
Reset input
ON
OFF
Test input
Override state
Unblocked
/Blocked
Unblocked
Blocked
ON
OFF
ON
OFF
Enabled
Disabled
T1
T1 : Override Input Time Limit : 0.3 s
T2 : Override Time Limit : 60 s
Muting input 1
ON
OFF
T2 max.
Safety output
ON
OFF
0.1 s max.
1 Hz Blinking
Auxiliary output
blinking
OFF
