F3SJ-E/B
User’s Manual
Chapter3 Dimensions
Wiring/Installation
E

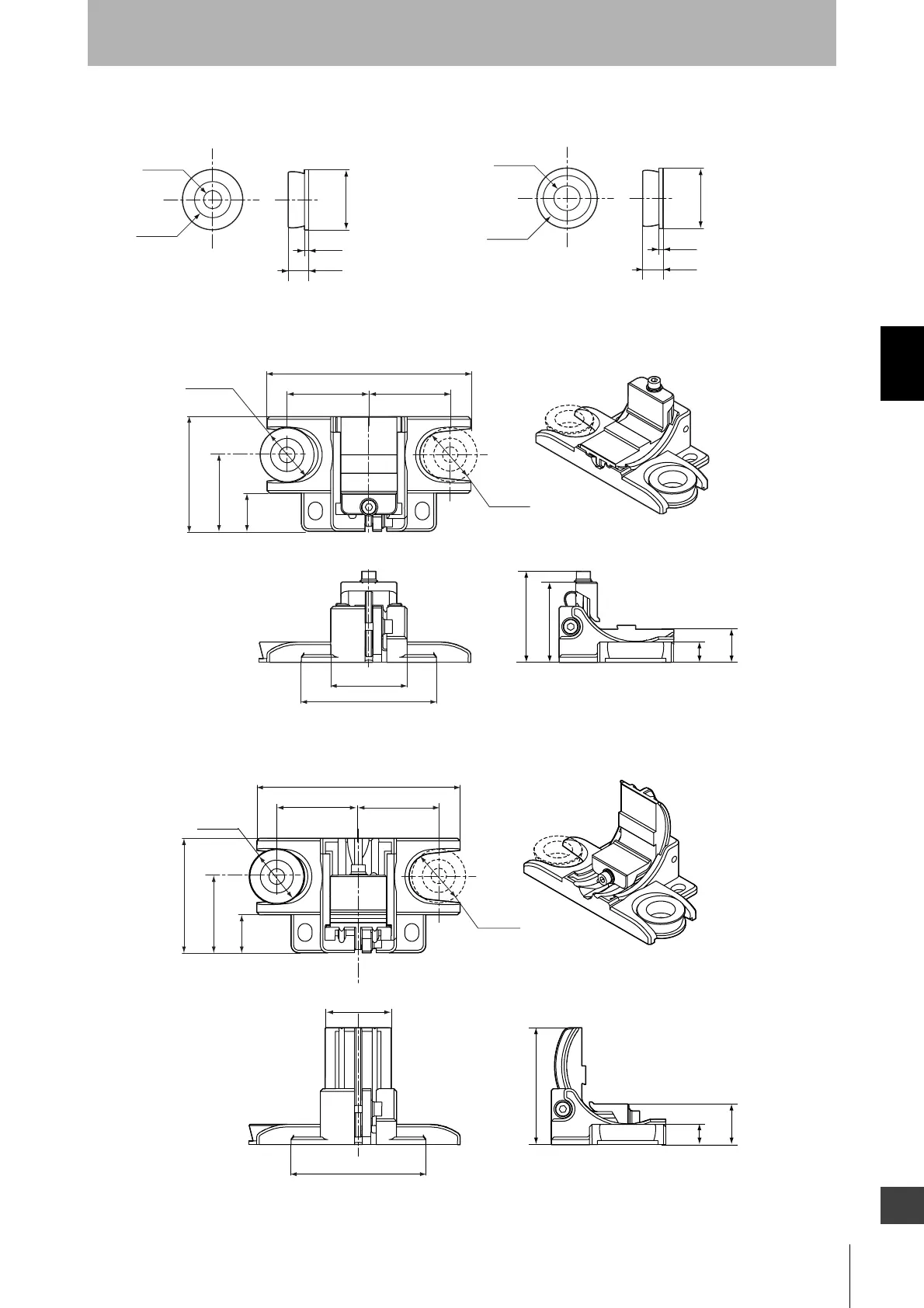

 Dimensions of Intermediate Bracket + One-touch Bracket (backside mounting)
 Dimensions of Intermediate Bracket + One-touch Bracket (side mounting)
Dimensions of One-touch M6 Bracket Dimensions of One-touch M8 Bracket
22
1.5
8
dia.6.2
dia.13
Material : Stainless
22
1.5
8
dia.8.2
dia.17
Material : Stainless
80
(32.1) (32.1)
45
15
30
dia.22
dia.22
[ Unit : mm ]
30
53
8
(13)
(31.5)
(35.7)
Material : Zinc die-cast
45
15
30
8
(46)
(16)
Material : Zinc die-cast
80
(32.1) (32.1)
dia.22
dia.22
[ Unit : mm ]
26
53
