Chapter3 Dimensions
F3SJ-E/B
User’s Manual
Wiring/Installation
 Side mounting
- The protective height of the F3SJ-E/B series that supports the contact mount bracket is limited.
Protective height allowed for mounting: 185 mm to 1,105 mm.
- Brackets of other models such as F39-LJB1 cannot be used simultaneously.
33
D
34.5
30
35
5
22.5
12
10.75 B
7
3.25
30
6.5
A
30
Dia. 9
19
C
B
3.25
2-M8
3.25
C
B
19
4-M5
<M5 screw fixed> <M8 screw fixed>

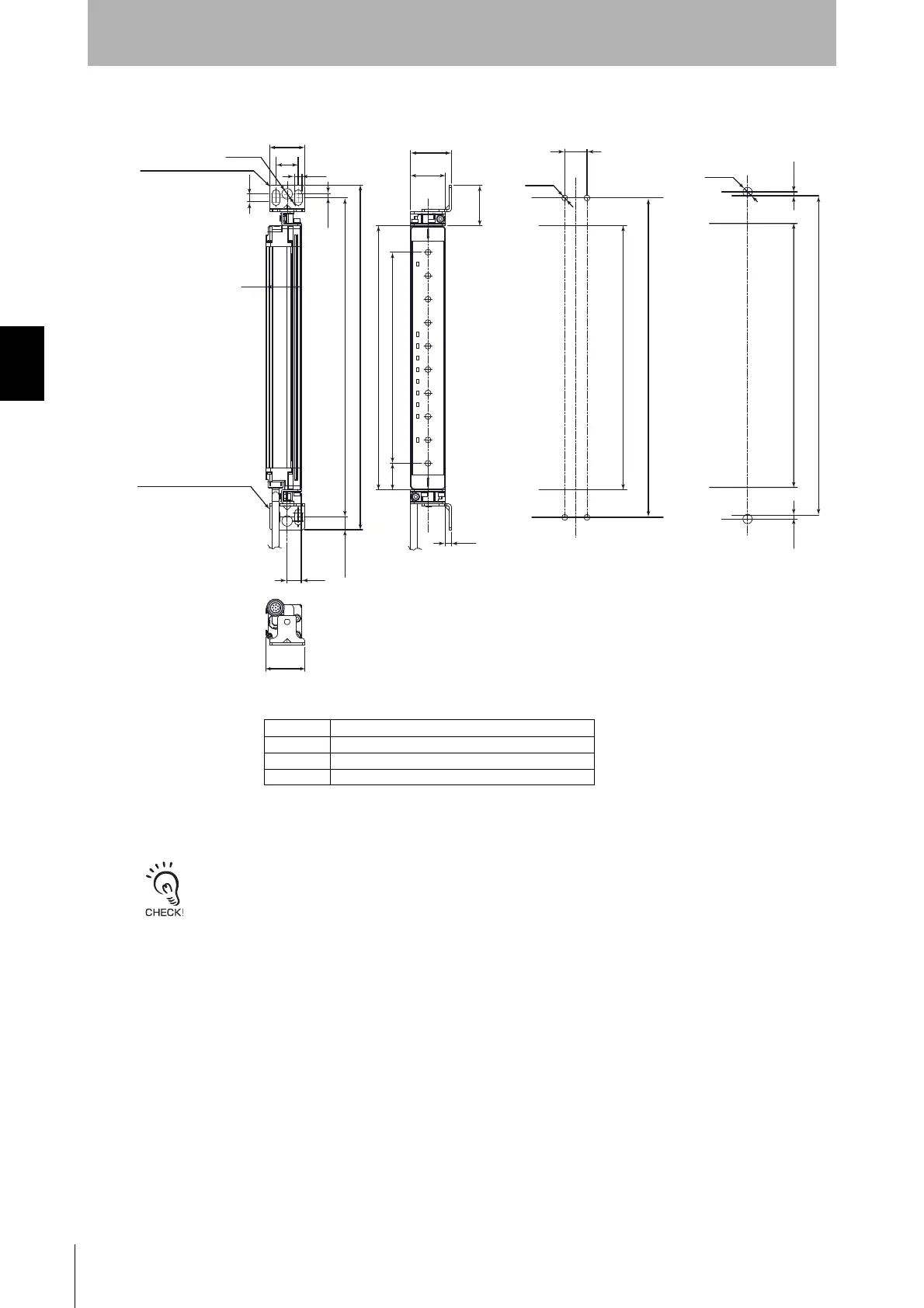

Contact Mount
Bracket
(F39-LJB5)
Contact Mount
Bracket
(F39-LJB5)
Dimensions A to D
A C+69
B C+47.5
C 4-digit number in the Model name (protective height)
DC - 45
