3 Configuration
3 - 50
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
FH-S, FZ-S2M, FZ-S5M2, FZ-SH, and FZ-S are recommended.

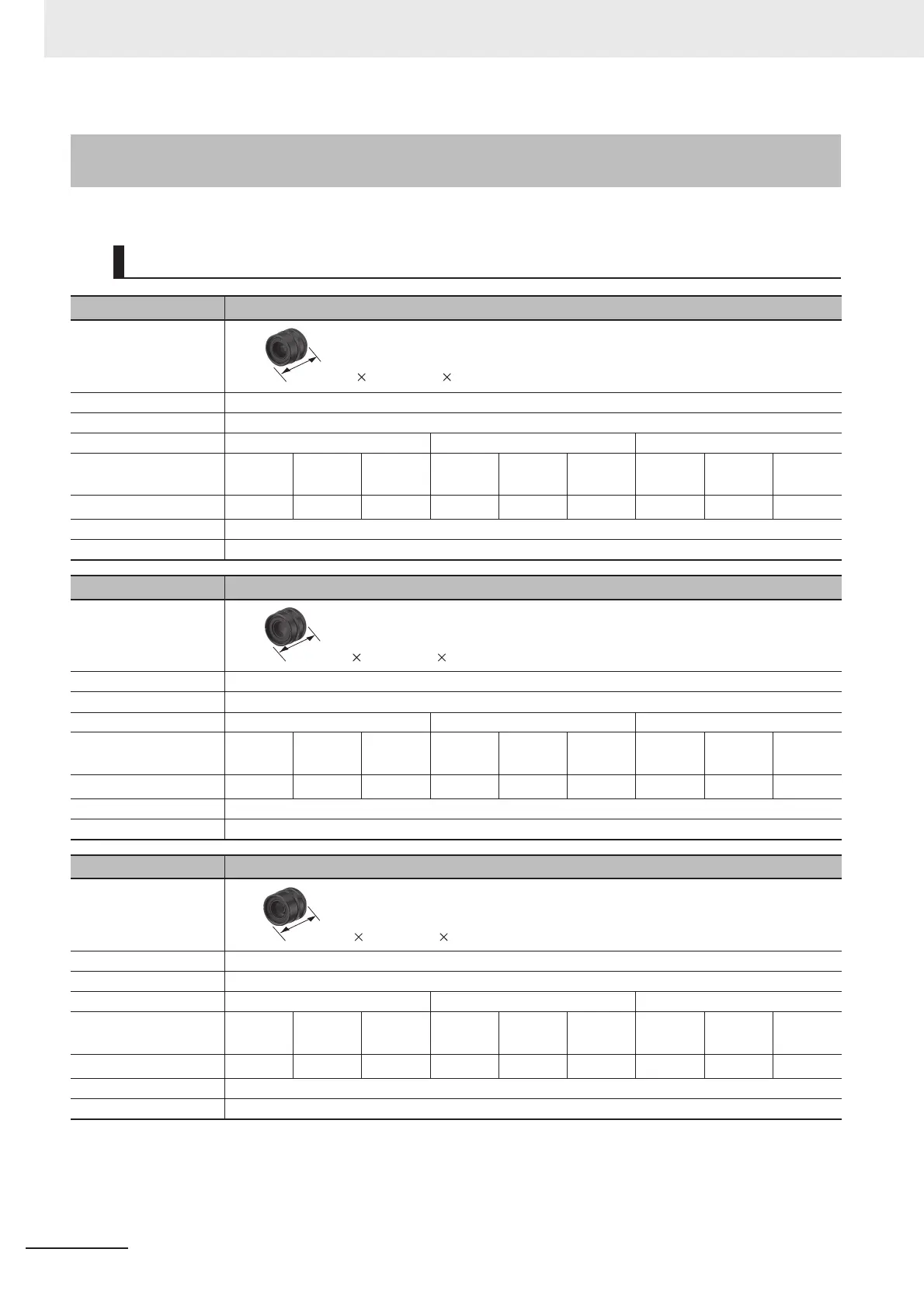

3-4-6 Vibration and Shock Resistant C-mount Lens for 2/3-inch
Image Sensor
Specification
Model
3Z4S-LE VS-MC15-

*1
Appearance/Dimen-
sions (mm)
Focal length 15 mm
Filter size M27.0 P0.5
Optical magnification 0.03 × 0.2 × 0.3 ×
Aperture (fixed F
No.)
*2
25.6825.6825.68
Depth of field (mm)
*3
183.1 512.7 732.4 4.8 13.4 19.2 2.3 6.5 9.2
Maximum sensor size 2/3 inch
Mount C Mount
Model
3Z4S-LE VS-MC20-

*1
Appearance/Dimen-
sions (mm)
Focal length 20 mm
Filter size M27.0 P0.5
Optical magnification 0.04 × 0.25 × 0.4 ×
Aperture (fixed F
No.)
*2
25.6825.6825.68
Depth of field (mm)
*3
110.8 291.2 416.0 3.4 9.0 12.8 1.5 3.9 5.6
Maximum sensor size 2/3 inch
Mount C Mount
Model
3Z4S-LE VS-MC25N-

*1
Appearance/Dimen-
sions (mm)
Focal length 25 mm
Filter size M27.0 P0.5
Optical magnification 0.05 × 0.25 × 0.5 ×
Aperture (fixed F
No.)
*2
25.6825.6825.68
Depth of field (mm)
*3
67.2 188.2 268.8 3.2 9.0 12.8 1.0 2.7 3.8
Maximum sensor size 2/3 inch
Mount C Mount
25.4[0.03 ] to 29.5[0.3 ]
31 dia.
31 dia.
23.0[0.04 ] to 30.5[0.4 ]
26.5[0.05 ] to 38.0[0.5 ]
31 dia.

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
