4 Handling and Installation Environment
4 - 6
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
4-4 FZ5 Series
Precautions for Correct Use
Ambient Temperature
• Install and store the product in a location that meets the following conditions:
• Surrounding temperature of 0 to 50°C (-20 to +65°C in storage)
• Relative humidity of between 35 to 85%RH
• Do not let the ambient temperature exceed 50°C (122°F).
• Provide a forced-air fan cooling or air conditioning if the ambient temperature is near 50°C
(122°F) so that the ambient temperature never exceeds 50°C (122°F).
Precautions for Correct Use
Although the LCD panel is manufactured with precision technology, there are cases where
some products are shipped with traces of pixel defects. This is due to the structural reason of
LCD and is not a failure.

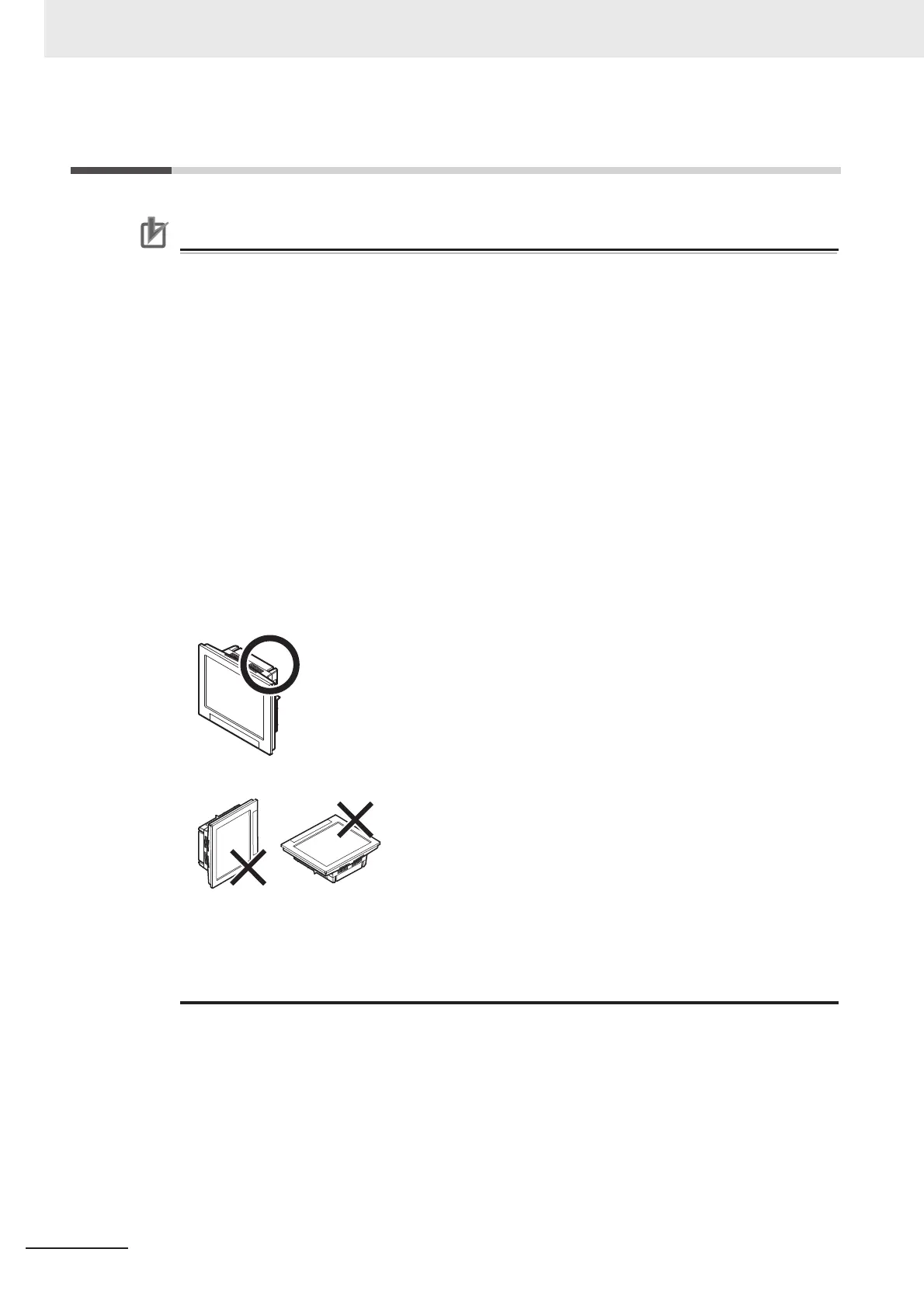

Installation method
• For good heat dissipation, install the product only in the position shown below so as not to
block the ventilation holes.
• Do not install the product in the following positions.
• Maintain a minimum clearance of 50 mm above and below the Controller to improve air circu-
lation. A minimum clearance of 10 mm between other devices must also be maintained on
the right and left sides of the product. However, if the adjacent devices do not generate heat,
provide at least 50 mm of clearance from the top of the Controller. For the clearance at the
bottom and sides, follow the mounting method.
