3 Configuration
3 - 46
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

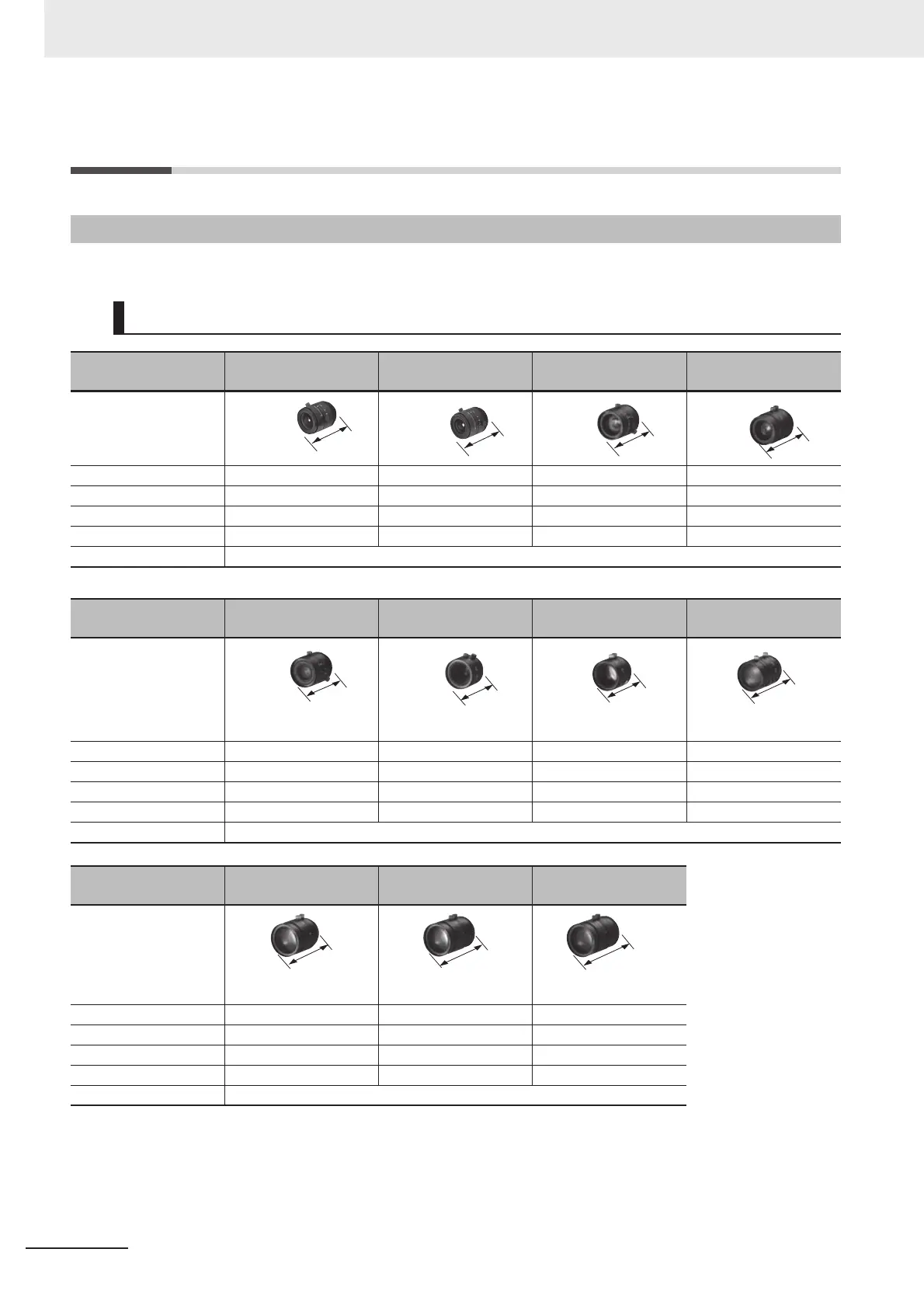

3-4 Lens
FH-S, FZ-SH, and FZ-S are recommended.
3-4-1 C-mount Lens for 1/3-inch Image Sensor
Specification
Model
3Z4S-LE
SV-03514V
3Z4S-LE
SV-04514V
3Z4S-LE
SV-0614V
3Z4S-LE
SV-0813V
Appearance/Dimen-
sions (mm)
Focal length 3.5 mm 4.5 mm 6 mm 8 mm
Aperture (F No.) 1.4 to Close 1.4 to Close 1.4 to Close 1.3 to Close
Filter size --- --- M27.0 P0.5 M25.5 P0.5
Maximum sensor size 1/3 inch 1/3 inch 1/3 inch 1/3 inch
Mount C mount
Model
3Z4S-LE
SV-1214V
3Z4S-LE
SV-1614V
3Z4S-LE
SV-2514V
3Z4S-LE
SV-3518V
Appearance/Dimen-
sions (mm)
Focal length 12 mm 16 mm 25 mm 35 mm
Aperture (F No.) 1.4 to Close 1.4 to Close 1.4 to Close 1.8 to Close
Filter size M27.0 P0.5 M27.0 P0.5 M27.0 P0.5 M27.0 P0.5
Maximum sensor size 1/3 inch 1/3 inch 1/3 inch 1/3 inch
Mount C mount
Model
3Z4S-LE
SV-5018V
3Z4S-LE
SV-7527V
3Z4S-LE
SV-10035V
Appearance/Dimen-
sions (mm)
Focal length 50 mm 75 mm 100 mm
Aperture (F No.) 1.8 to Close 2.7 to Close 3.5 to Close
Filter size M30.5 P0.5 M30.5 P0.5 M30.5 P0.5
Maximum sensor size 1/3 inch 1/3 inch 1/3 inch
Mount C mount
30.4
29.5 dia.
29.5
29.5 dia.
30.0
29 dia.
34.0
28 dia.
29.5
29 dia.
24.0
29 dia.
24.5
29 dia.
33.5 [WD: ∞] to
37.5 [WD: 300]
29 dia.
37.0 [WD: ∞] to
39.4 [WD: 1000]
32 dia.
42.0 [WD: ∞] to
44.4 [WD: 1000]
32 dia.
32 dia.
43.9 [WD: ∞] to
46.3 [WD: 1000]
