2 - 9
2 Overview of FH/FZ5 series
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

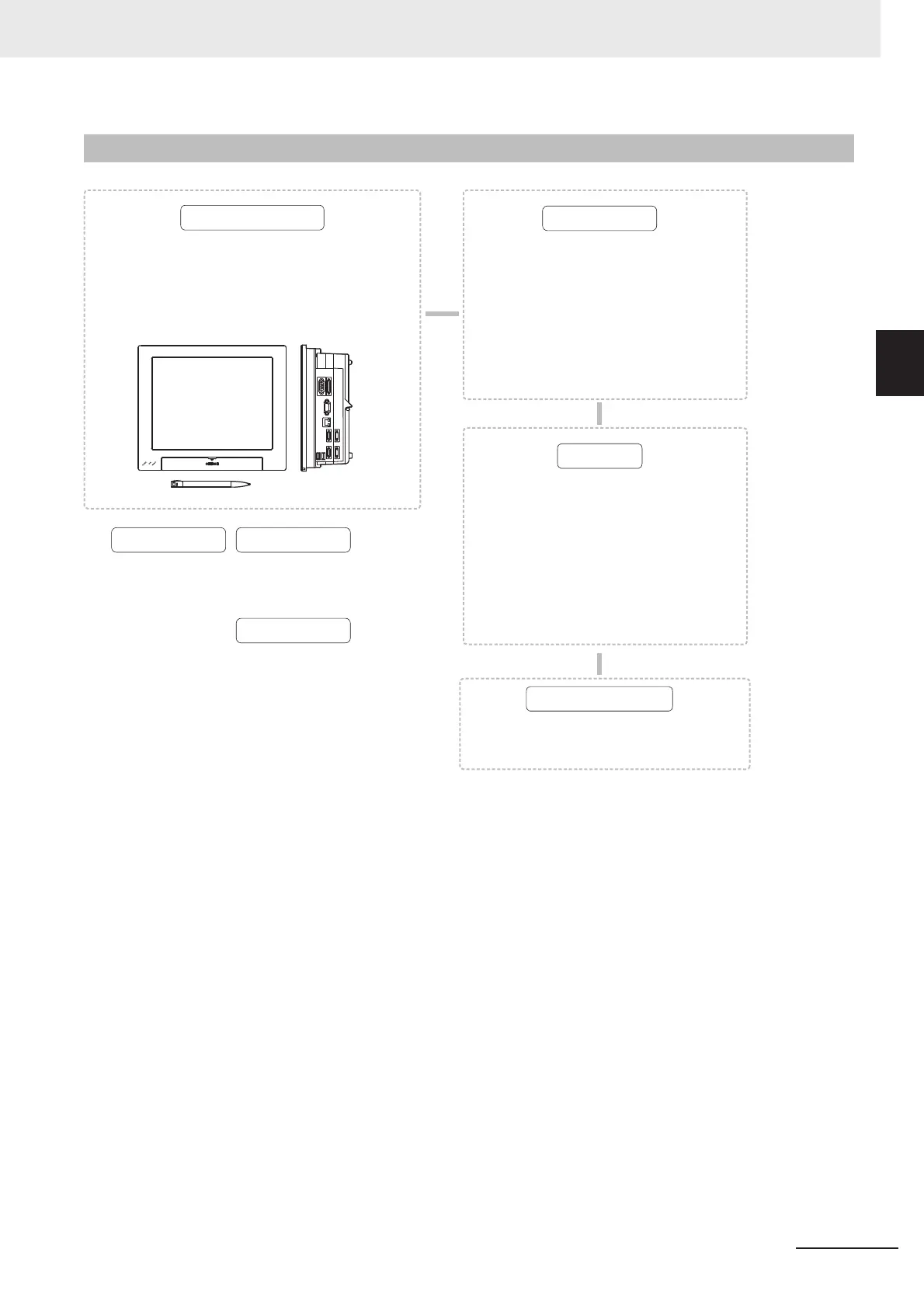

2-2 System Configuration
2
2-2-3 FZ5-600/FZ5-1100 Series
2-2-3 FZ5-600/FZ5-1100 Series
* USB memory
FZ-MEM2G
FZ-MEM8G
The Controller performs the image processing specified
by the user settings and outputs the measurement results.
Front view
Lighting controller
FLV-TCC1/FLV-TCC4
FL-TCC1
* Items indicated with an asterisk are dedicated items, and cannot be substituted.
*
*
*
*
Sensor controller Camera cable
Camera
Power SupplyPeripheral Device
Power Supply
Recommended Model by OMRON:
S8VS-18024
Mouse, track ball
(Commercially available USB devices)
Camera 4ch type
FZ5-110-10
FZ5-60-10
Camera 2ch type
FZ5-110
FZ5-60
Touch pen (standard accessory)
Right-side view
Camera with Lighting
Camera cable
FZ-VS3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Bend resistant camera cable
FZ-VSB3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Right-angle camera cable
FZ-VSL3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Bend resistant Right-angle camera cable
FZ-VSLB3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Long-distance camera cable
FZ-VS4 (15 m, min. bending radius: 78 mm)
Long-distance Right-angle camera cable
FZ-VSL4 (15 m, min. bending radius: 78 mm)
Detects workpieces as images.
Standalone camera
FZ-SC/FZ-S/
FZ-SC2M/FZ-S2M/
FZ-SFC/FZ-SF/
FZ-SPC/FZ-SP/
FZ-SHC/FZ-SH
FZ-SC5M2/FZ-S5M2
Intelligent Compact Digital Camera
FZ-SQ010F/FZ-SQ050F/
FZ-SQ100F/FZ-SQ100N

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
