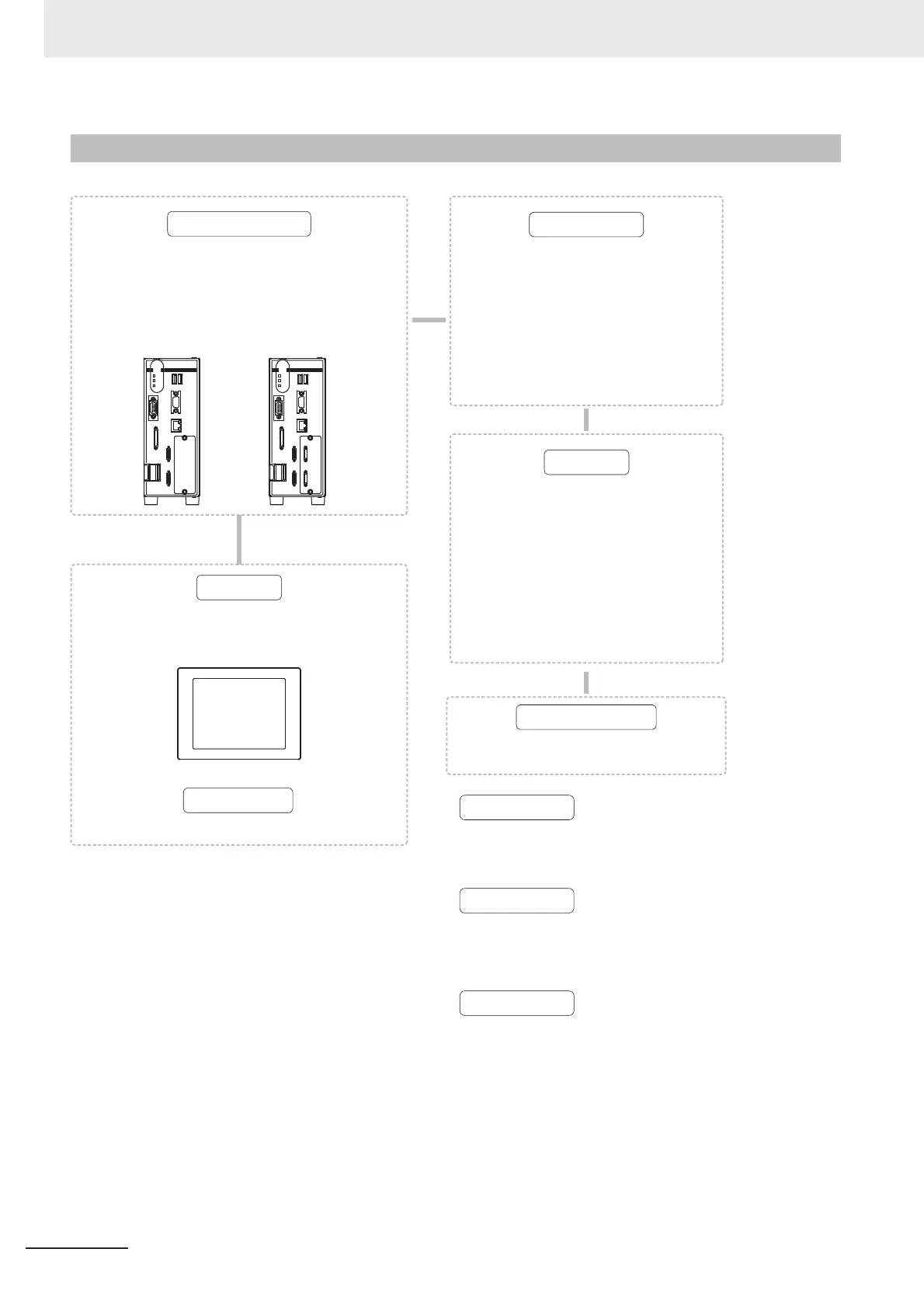

Vision System FH/FZ5 series Hardware Setup Manual (Z366)
2-2-4 FZ5-L Series
Use the monitor to check images and
display the condition-setting menus.
FZ-VM (2m, 5m, bending radius: 75m)
FZ-M08 (8.4 inch)
LCD monitor
*
Monitor cable
*
Mouse, Keyboard
(Commercially available USB devices)
OMRON Recomendation
S8VS-12024 (FZ5-L35
)
S8VS-18024 (FZ5-L35
-10)
Standalone camera
FZ-SC/FZ-S/
FZ-SC2M/FZ-S2M/
FZ-SC5M2/FZ-S5M2/
FZ-SFC/FZ-SF/
FZ-SPC/FZ-SP/
FZ-SHC/FZ-SH
Intelligent Compact Digital Camera
FZ-SQ010F/FZ-SQ050F/
FZ-SQ100F/FZ-SQ100N
Detects workpieces as images.
* Items indicated with an asterisk are dedicated items, and cannot be substituted.
The Controller performs the image processing specified
by the user settings and outputs the measurement results.
Sensor controller
*
*
*
*
Camera 4ch type
FZ5-L350-10
FZ5-L355-10
Camera 2ch type
FZ5-L350
FZ5-L355
Input Device
Power Supply
Peripheral Device
* USB memory
FZ-MEM2G
FZ-MEM8G
Camera cable
FZ-VS3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Bend resistant camera cable
FZ-VSB3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Right-angle camera cable
FZ-VSL3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Bend resistant Right-angle camera cable
FZ-VSLB3 (2 m, 3 m, 5 m, 10 m, min. bending radius: 69 mm)
Long-distance camera cable
FZ-VS4 (15 m, min. bending radius: 78 mm)
Long-distance Right-angle camera cable
FZ-VSL4 (15 m, min. bending radius: 78 mm)
Camera cable
Camera
FLV-TCC1/FLV-TCC4/
FLV-TCC1EP/FLV-TCC3HB
Camera with Lighting
