Vision System FH/FZ5 series Hardware Setup Manual (Z366)
Precautions for Correct Use
Ambient Temperature
• Install and store the product in a location that meets the following conditions:
• Surrounding temperature of 0 to 50
°C (-20 to +65°C in storage)
• Relative humidity of between 35 to 85%RH
• Do not let the ambient temperature exceed 50
°C (122°F).
• Provide a forced-air fan cooling or air conditioning if the ambient temperature is near 50
°C
(122°F) so that the ambient temperature never exceeds 50°C (122° F).
Orientation of Product

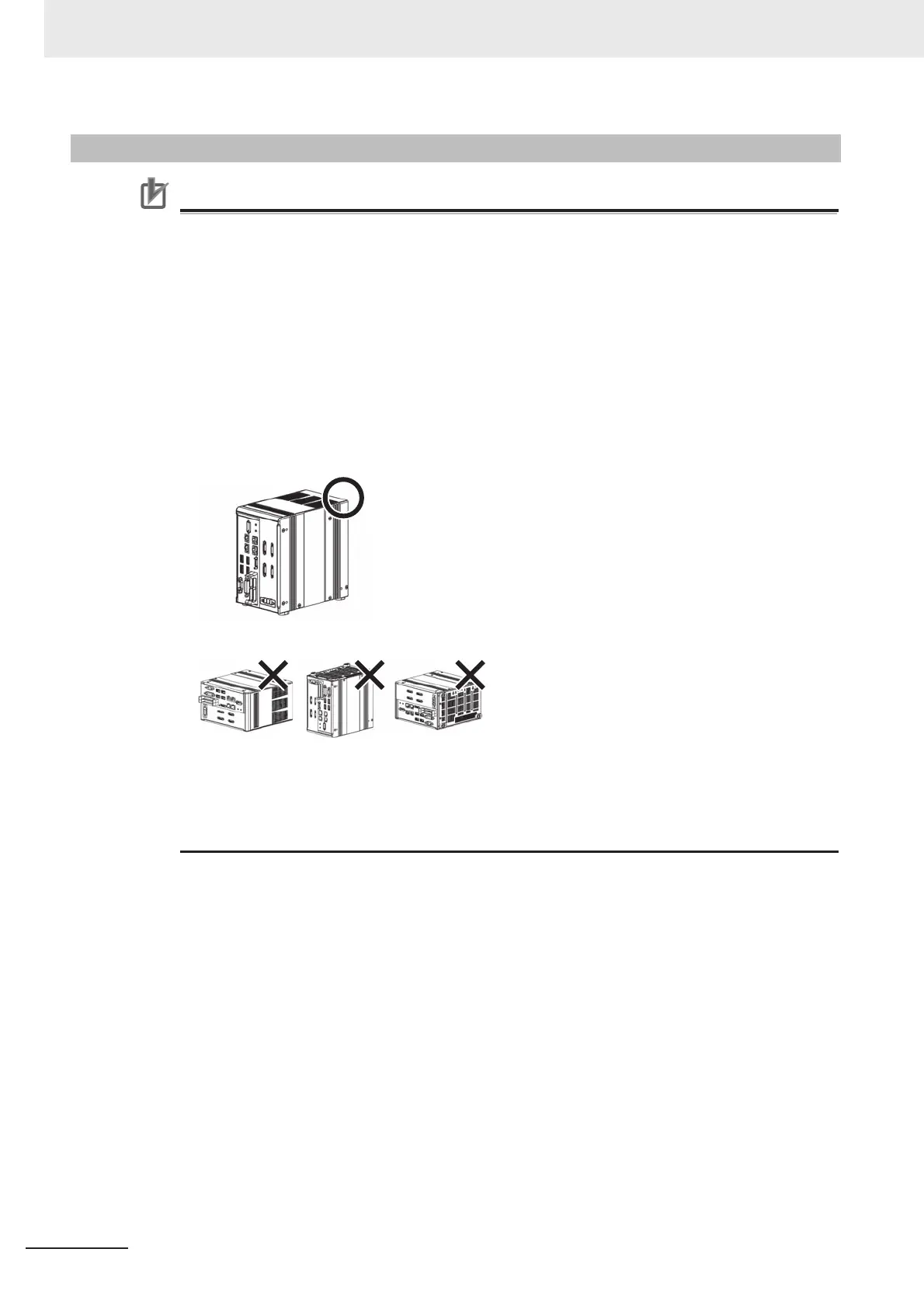

• For good heat dissipation, install the product only in the position shown below so as not to
block the ventilation holes.
• Do not install the product in the following positions.
• For good ventilation, provide a clearance of 50 mm or more above the Sensor Controller
away from other devices in the normal floor mounting. For the right and left sides, provide a
clearance of 30 mm or more, and for the back side, 15 mm or more. These clearances are
also required when mounting multiple sensor controllers side by side. For the back mounting,
the back-side clearance of 15 mm is nor required.
5-8-2 FH-1000/FH-3000 Series

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
