5 Setup and Wiring
5 - 36
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
Precautions for Correct Use
Installation and Storage Sites
Install and store the product in a location that meets the following conditions:
• No rapid changes in temperature (place where dew does not form)
• No presence of corrosive or flammable gases
• Place free of dust, salts and iron particles
• Place free of vibration and shock
• Place out of direct sunlight
• Place where it will not come into contact with water, oils or chemicals
• Place where is near no high-voltage instrument or power machine
Ambient Temperature
Do not install the product immediately above significant heat sources, such as heaters, trans-
formers, or large-capacity resistors.
Noise Resistance
• Do not install the product in a cabinet containing high-voltage equipment.

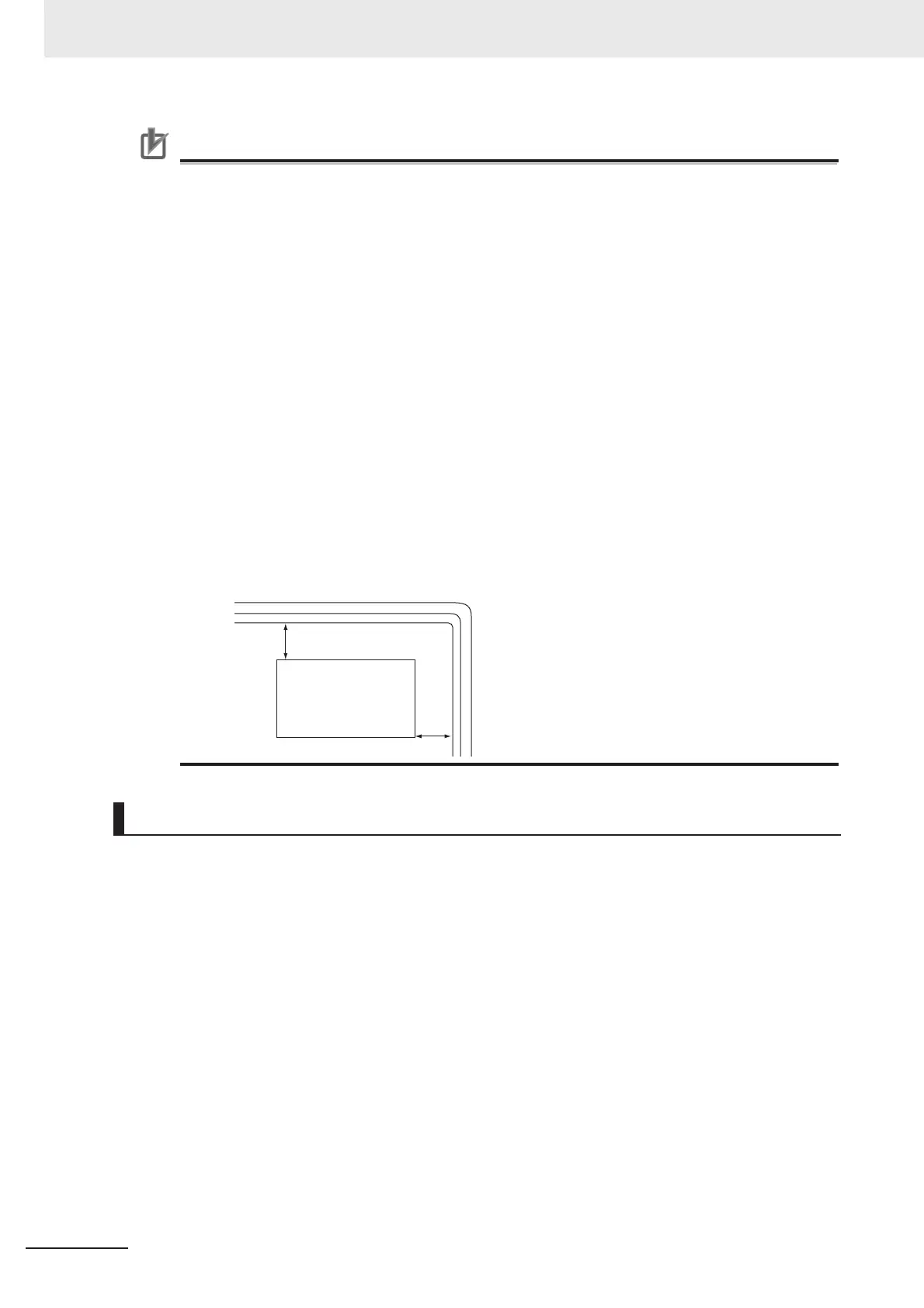

• Do not install the Sensor Controller within 200 mm of power cables.
• Panels have been reduced in size due to space-saving and miniaturization in devices and systems,
and the temperature inside the panel may be at least 10 to 15°C higher than outside the panel. Imple-
ment the following measures against overheating at the installation site and in the panel, and allow a
sufficient margin for the temperature.
• The Controller may not start normally if the temperature is below 0°C when the power is turned ON.
Maintain an air temperature of at least approximately 5°C inside the panel, by implementing mea-
sures such as installing a low-capacity space heater in the panel. Alternatively, leave the Controller
power ON to keep the Controller warm.
• Rapid temperature changes can cause condensation to occur, resulting in malfunctioning due to
short-circuiting. When there is a possibility of this occurring, take measures against condensation,
such as leaving the Controller power ON at night or installing a heater in the control panel to keep it
warmer.
Ambient temperature and humidity
Sensor
Controller
200 mm min.
200 mm min.
Power lines
To Next Page
