5 - 41
5 Setup and Wiring
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
5-8 Installation in a Control Panel
5

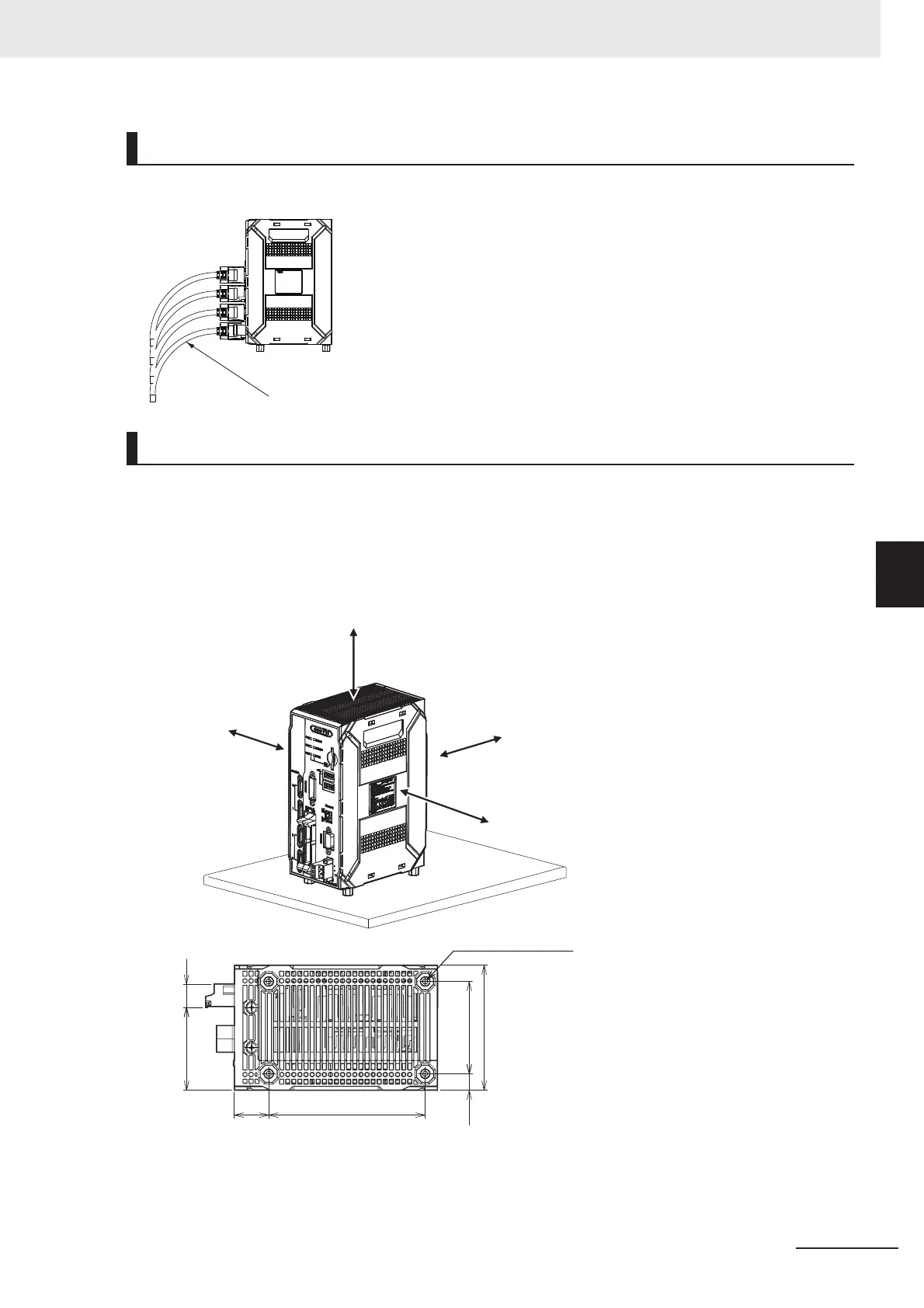

5-8-3 FH-L Series
When you connect the cable to the Sensor Controller, secure the minimum bending radius of the cable
or cable connector.
• Make sure to tighten all installation screws securely.
• To keep proper air flow, keep the top of the FH Sensor Controller 50 mm or more apart from other
devices. Install the FH Sensor Controller with a clearance of 30 mm on the right and left side, and 15
mm for rear planes. The clearance is required for installing multiple units side-by-side. For the back
mounting, the back-side clearance of 15 mm is nor required.
z
Mounting the base of the Sensor Controller (Floor mounting)
• Recommended tightening torque: 0.54 N•m to 0.6 N•m
• The tolerance:
±0.2 mm
Accessibility for Operation and Maintenance
Installation in a Control Panel
Minimum bending radius
Clearance: 50 mm
Clearance: 30 mm
Clearance: 15 mm
Clearance: 30 mm
52.9 15
59
Four, M4 depth 6.5
10.5
80
22 100

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
