Parallel interface is NPN/PNP in common. An appropriate wiring is required according on the external
device.
z
[Input]
Applicable signals/
• No.14 pin:
Connect COMIN1 terminal, when you use this signal.
• No.37 to 46 pins:
Connect the COMIN2 terminal when using these signals.
a) Internal Specification for NPN Connection
b) Internal Specification for PNP Connection
z
[Input]
Applicable signals/
• No.4 to 6, 9 to 11 pins:
Connect the COMIN1 terminal when using these signals.
• No.7, 8, 12, 13 pins:
Connect the COMIN0 terminal when using these signals.
a) Internal Specification for NPN Connection
b) Internal Specification for PNP Connection

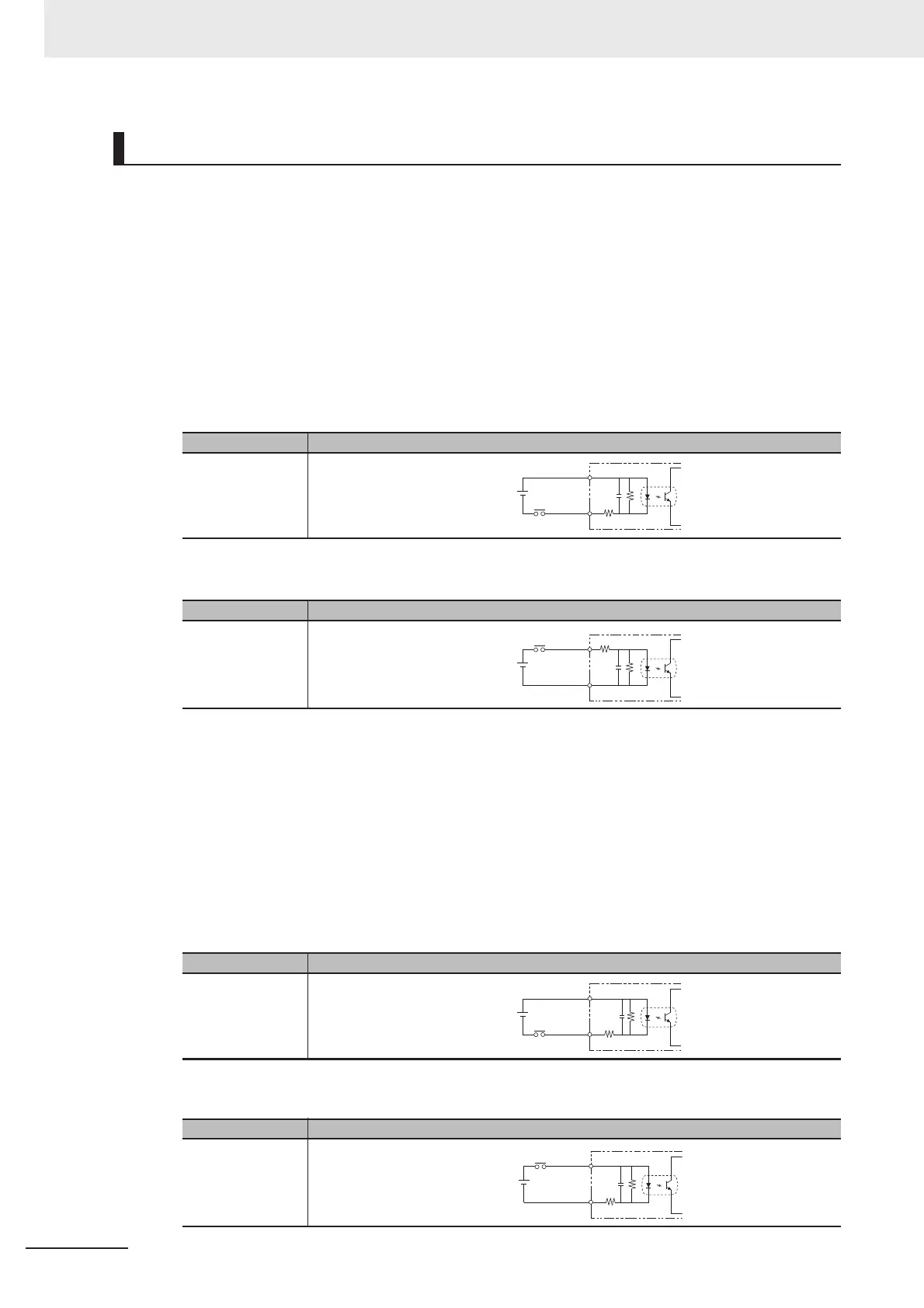

Internal Specifications for Parallel Interface
Item Specifications
Internal circuit
diagram
Item Specifications
Internal circuit
diagram
Item Specifications
Internal circuit
diagram
Item Specifications
Internal circuit
diagram
COM IN
+
Each input terminal
COM IN
+
Each input terminal
COM IN
+
Each input terminal
COM IN
+
Each input terminal
