1 - 7
1 Confirm the Package
Vision System FH/FZ5 series Hardware Setup Manual (Z366)

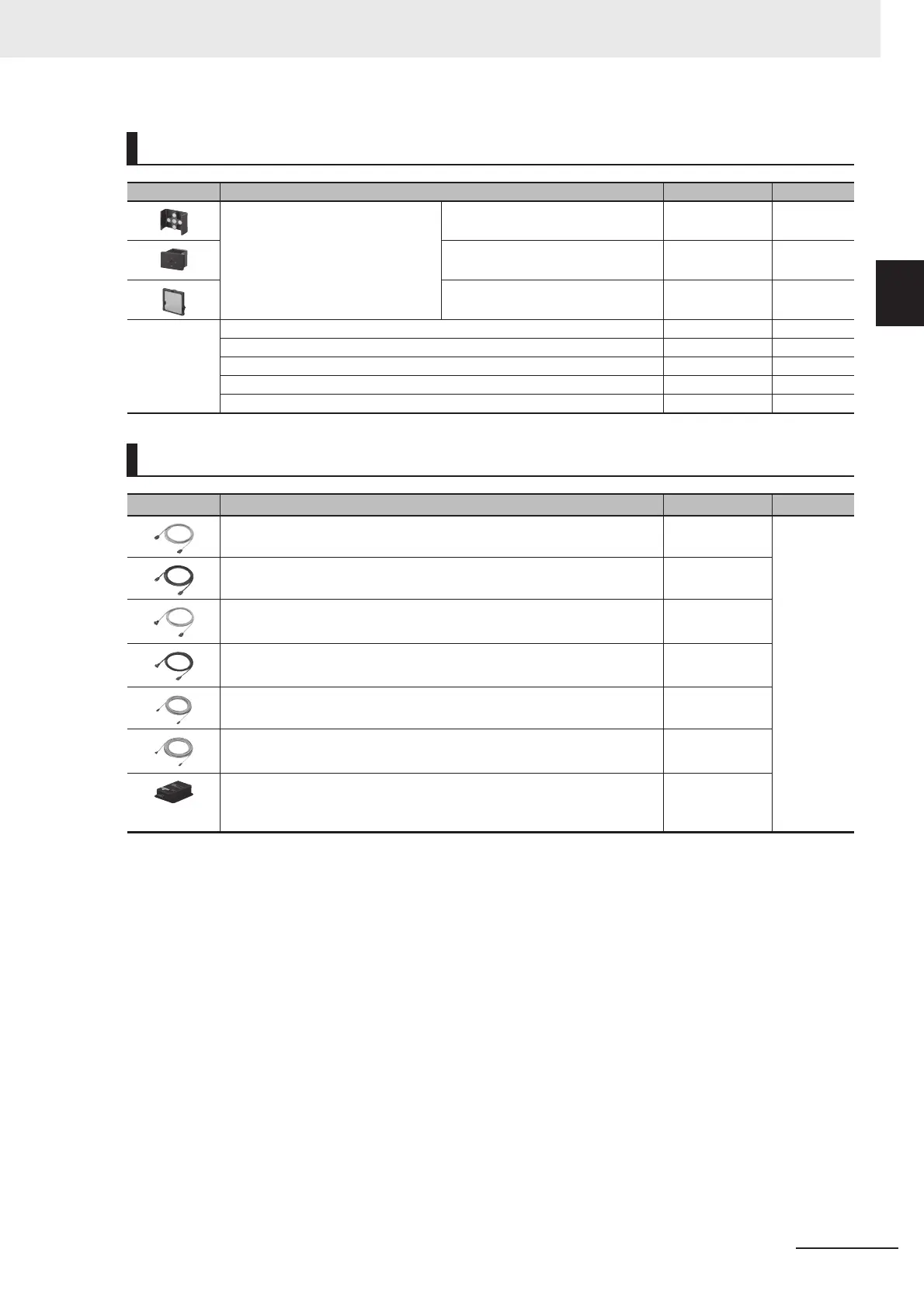

1-2 Sold Separately
1
1-2-1 Cameras and Related
Camera Mounting Fitting
Appearance Description Model Reference
For Intelligent Compact Digital Cam-
era
Mounting Bracket FQ-XL
Precise Mounting Brackets FQ-XL2
Polarizing Filter Attachment (Pack-
aged item)
FQ-XF1
---
Mounting Bracket for FZ-S FZ-S-XLC
Mounting Bracket for FZ-S2M FZ-S2M-XLC
Mounting Bracket for FZ-SH FZ-SH-XLC
Mounting Bracket for FH-S, FZ-S5M2 FH-SM-XLC
Mounting Bracket for FH-S12 FH-SM12-XLC
Camera Cable
Appearance Description
Model
*1
*1. Insert the cables length into  in the model number as follows. 2 m = 2, 3 m = 3, 5 m = 5, 10 m = 10
Reference
Camera Cable
Cable length: 2 m, 3 m, 5m, or 10 m
*2
*2. The maximum cable length depends on the Camera being connected, and the model and length of the Cable
being used. For further information, please refer to 3-3-4 Cable Connection Table on page 3-41 and 3-3-5 Cable
Extension Units on page 3-43.
When a high-speed digital CMOS camera FH-S02/-S04/-S12 is used in the high speed digital mode
of transmission speed, two camera cables are required.
FZ-VS3 M
Bend resistant Camera Cable
Cable length: 2 m, 3 m, 5m, or 10 m
*2
FZ-VSB3 M
Right-angle Camera Cable
*3
Cable length: 2 m, 3 m, 5m, or 10 m
*2
*3. This Cable has an L-shaped connector on the Camera end.
FZ-VSL3 M
Bend resistant Right-angle Camera Cable
*3
Cable length: 2 m, 3 m, 5 m, or 10 m
*2
FZ-VSLB3 M
Long-distance Camera Cable
Cable length: 15 m
*2
FZ-VS4 15M
Long-distance Right-angle Camera Cable
*3
Cable length: 15 m
*2
FZ-VSL4 15M
Cable Extension Unit
Up to two Extension Units and three Cables can be connected.
(Maximum cable length: 45 m
*2
)
FZ-VSJ
