1 Confirm the Package
Vision System FH/FZ5 series Hardware Setup Manual (Z366)
1-2 Sold Separately
1
1-2-5 Cable
Use Straight STP (shielded twisted-pair) cable of category 5 or higher with double shielding (braiding
and aluminum foil tape) for EtherCAT.
Use Straight or cross STP (shielded twisted-pair) cable of category 5 or higher for EtherNet/IP.
Note Please be careful while cable processing, for EtherCAT, connectors on both ends should be shield con-
nected and for EtherNet/IP, connectors on only one end should be shield connected.

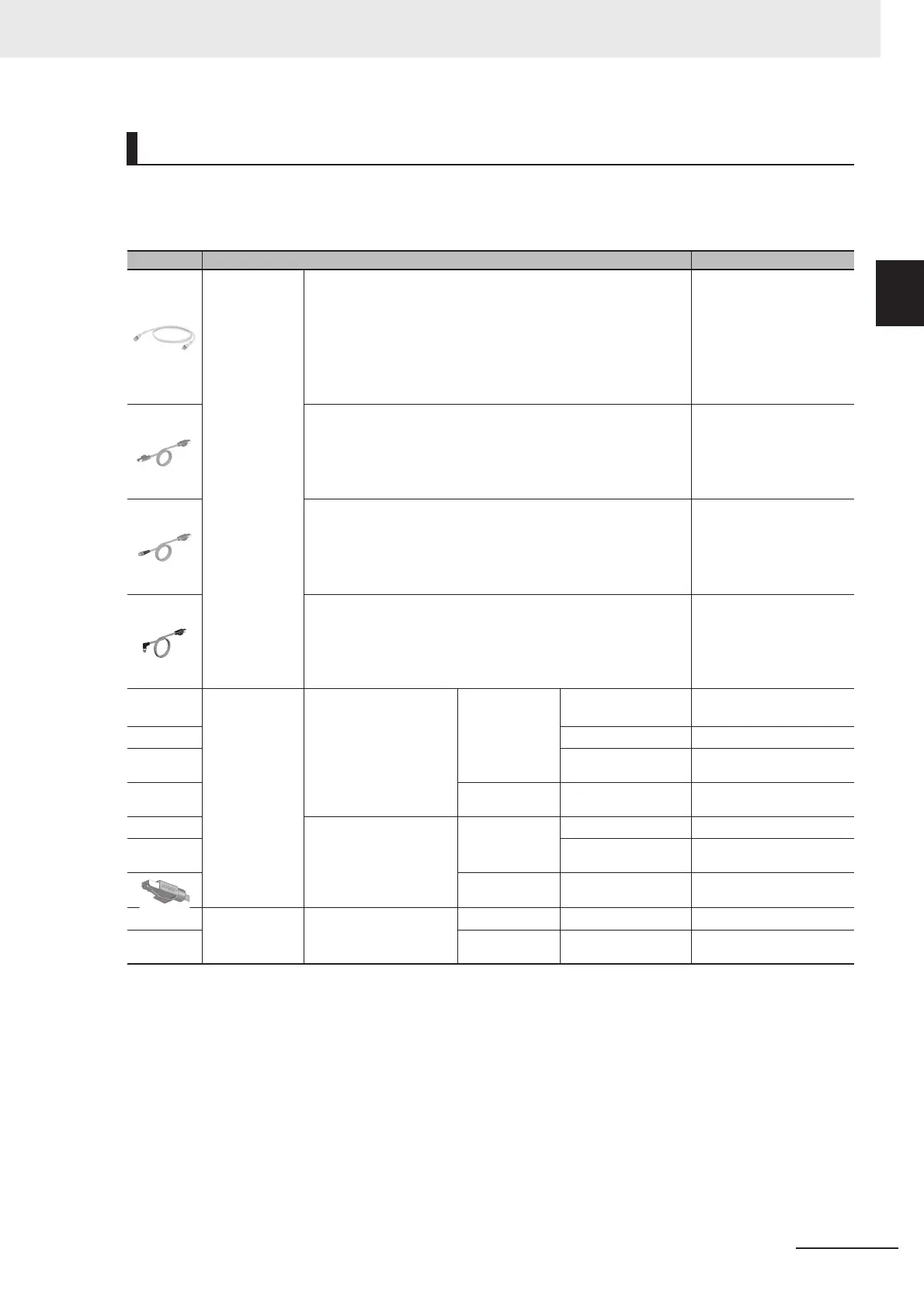

Recommended EtherCAT and EtherNet/IP Communications Cables
Item Description Model
For EtherCAT Standard type Cable with Connectors on Both Ends (RJ45/RJ45)
• Wire Gauge and Number of Pairs:
AWG27, 4-pair Cable, Cable Sheath material: LSZH
*1
•Cable color:
Blue, Yellow, or Green
• Cables length:
0.2m, 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m, 7.5m, 10m, 15m, 20m
*1. The lineup features Low Smoke Zero Halogen cables for in-cabinet use and PUR cables for out-of-cabinet use.
XS6W-6LSZH8SSCM-Y
Rugged type Cable with Connectors on Both Ends (RJ45/RJ45)
• Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
• Cables length:
0.3m, 0.5m, 1m, 2m, 3m, 5m, 10m, 15m
XS5W-T421-MD-K
Rugged type Cable with Connectors on Both Ends (M12/RJ45)
• Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
• Cables length:
0.3m, 0.5m, 1m, 2m, 3m, 5m, 10m, 15m
XS5W-T421-MC-K
Rugged type Cable with Connectors on Both Ends (M12 L/RJ45)
• Wire Gauge and Number of Pairs:
AWG22, 2-pair Cable
• Cables length:
0.3m, 0.5m, 1m, 2m, 3m, 5m, 10m, 15m
XS5W-T422-MC-K
--
For EtherCAT
and EtherNet/IP
Wire Gauge and Number
of Pairs:
AWG24, 4-pair Cable
Cables Hitachi Metals, Ltd. NETSTAR-C5E
SAB 0.5 × 4P
*2
*2. We recommend you to use above cable for EtherCAT and EtherNet/IP, and RJ45 Connector together.
--
Kuramo Electric Co.
KETH-SB
*2
--
SWCC Showa Cable
Systems Co.
FAE-5004
*2
--
RJ45
Connectors
Panduit Corporation
MPS588-C
*2
--
Wire Gauge and Number
of Pairs:
AWG22, 2-pair Cable
Cables Kuramo Electric Co.
KETH-PSB-OMR
*3
*3. We recommend you to use above cable for EtherCAT and EtherNet/IP, and RJ45 Assembly Connector together.
--
Nihon Electric
Wire&Cable Co.,Ltd.
PNET/B
*3
RJ45 Assembly
Connector
OMRON
XS6G-T421-1
*3
--
For EtherNet/IP Wire Gauge and Number
of Pairs:
0.5 mm, 4-pair Cable
Cables Fujikura Ltd.
F-LINK-E 0.5mm × 4P
*4
*4. We recommend you to use above cable for EtherNet/IP and RJ45 Connectors together.
--
RJ45
Connectors
Panduit Corporation
MPS588
*4

Omron fh series Specifications

General

Type	Machine Vision System
Series	FH Series
Power Supply	24 VDC
Storage Temperature	-20 to 60°C
Humidity	35 to 85% RH (non-condensing)
Image Sensor	CMOS
Processing Speed	High-speed processing
Connectivity	Ethernet
I/O	Digital I/O
Operating System	Embedded OS
I/O Ports	Ethernet, USB
