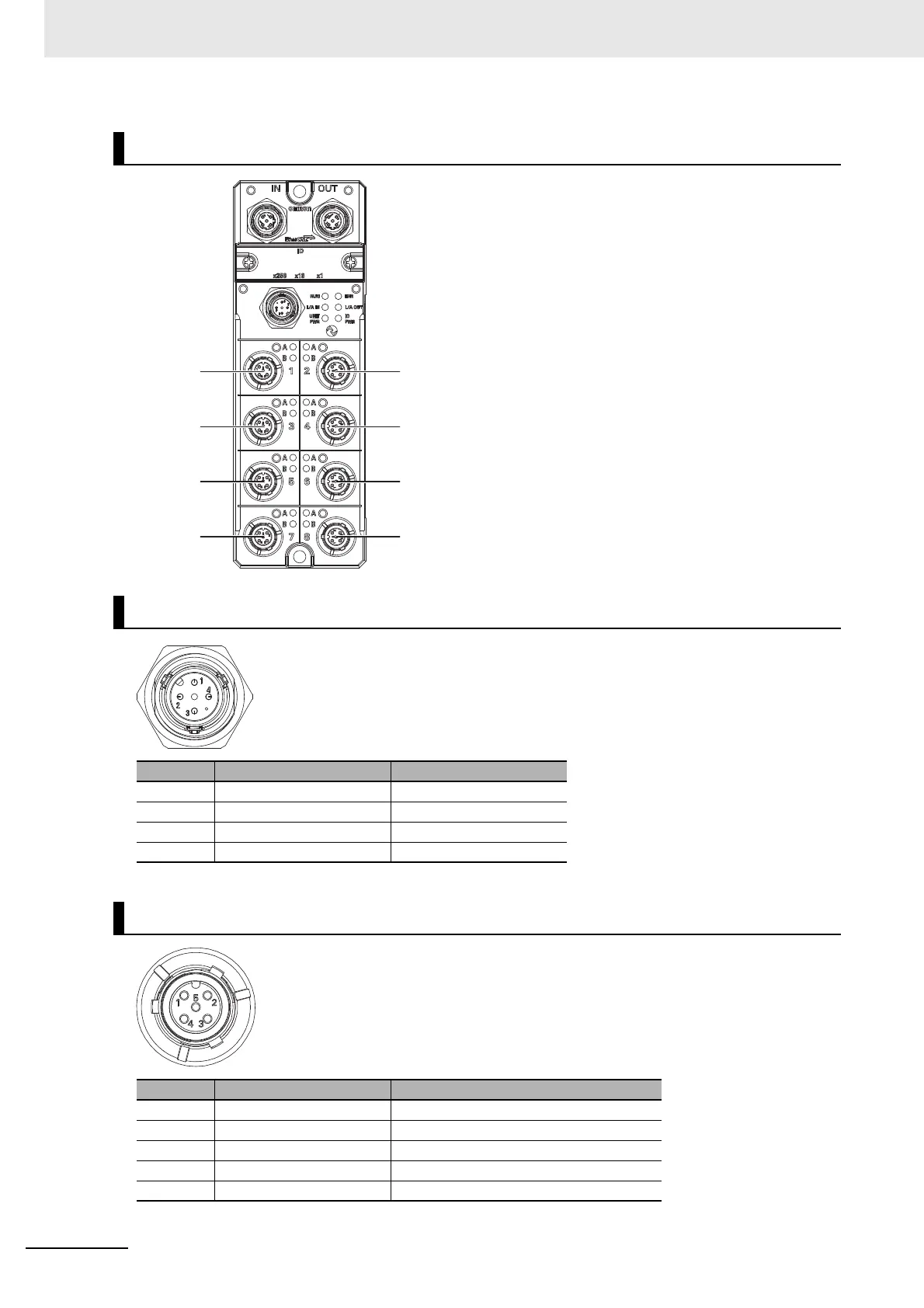

10 IO-Link Master Unit

10 - 16

GX-series EtherCAT Slave Unit User’s Manual

I/O Connectors

Power Supply Connector

Pin Signal Description

1 UNT_P+ Unit power supply +

2 UNT_P− Unit power supply −

3 I/O_P+ I/O power supply +

4 I/O_P− I/O power supply −

I/O Connectors

Pin Signal Description

1 L+ Device power supply +

2 DI Digital input

3L− Device power supply −

4 C/Q IO-Link communications/signal wires

5 n/a Not used.

Port 1

Port 3

Port 5

Port 7

Port 2

Port 4

Port 6

Port 8
