GX-series EtherCAT Slave Unit User’s Manual
 XWT-OD08 (NPN)
 XWT-OD08-1 (PNP)
Precautions for Correct Use
When using an inductive load, such as a solenoid valve, either use a built-in diode for absorbing
the counterelectromotive force or install an external diode. (Refer to "A-4 Wiring External Output
Signal Lines" in page A - 78.)

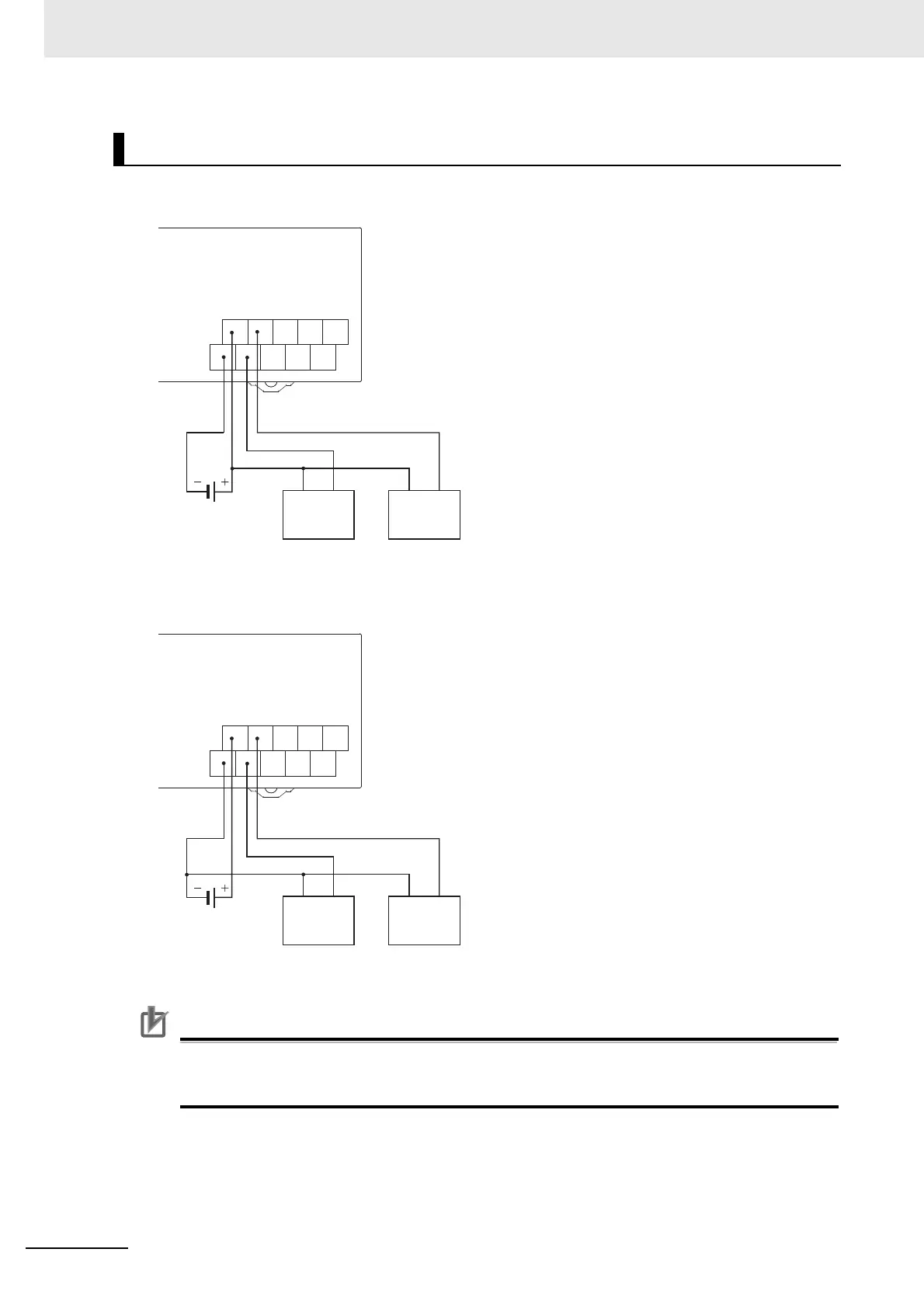

Wiring diagram
I/O power supply
(24 VDC)
Solenoid valve, etc. Solenoid valve, etc.
V1357
G0246
I/O power supply
(24 VDC)
Solenoid valve, etc. Solenoid valve, etc.
V1357
G0246
