6 - 9

6 Basic Specifications of Slave Units

GX-series EtherCAT Slave Unit User’s Manual

6-3 Specifications of Common Areas

6-3-3 Communications Connectors

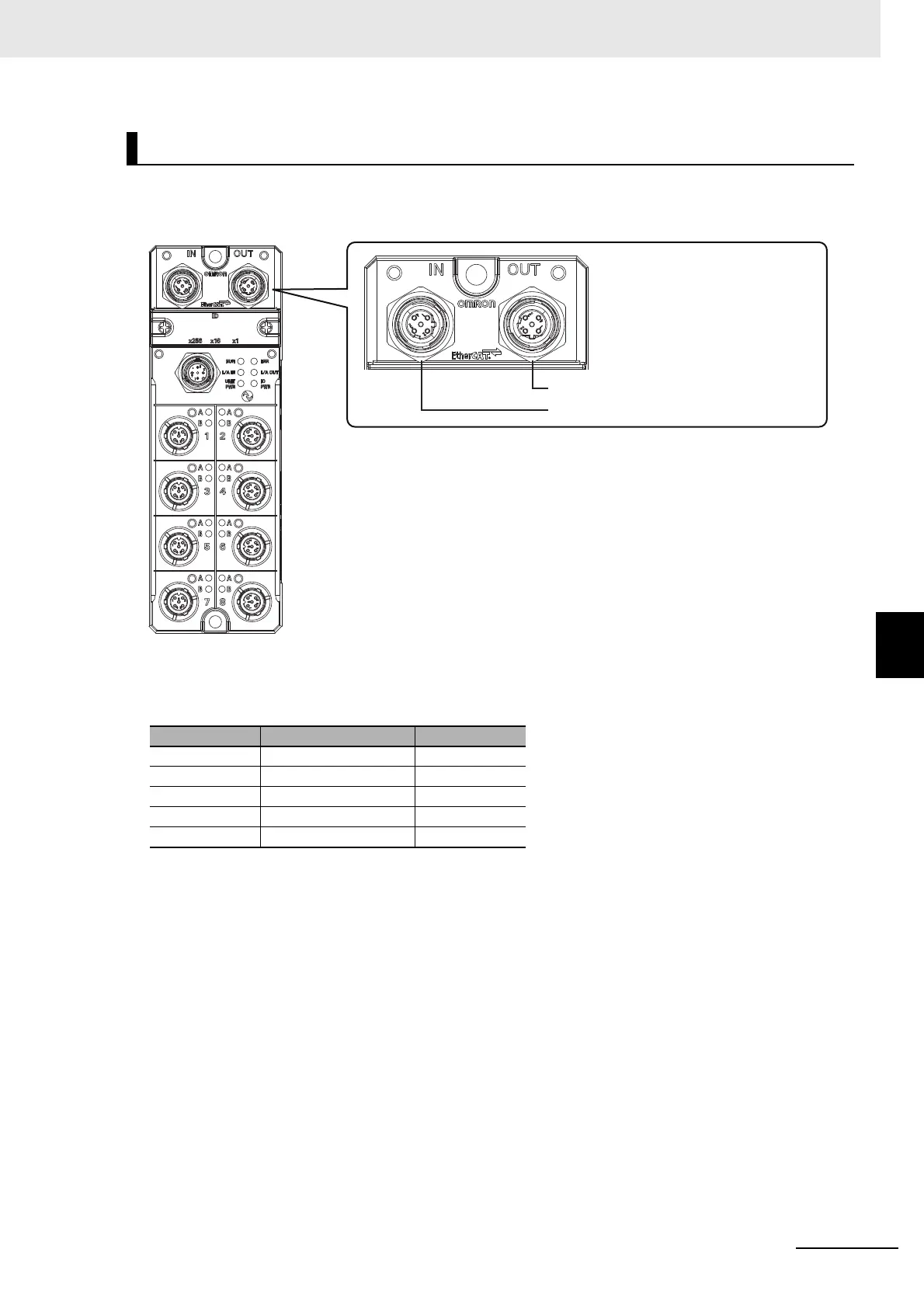

M12 connectors (D-coding, female) are used for the communications connectors as shown below.

The specifications are given below.

• Electrical specifications: Conform to IEEE 802.3 standards.

• Connector structure: M12 connectors (D-coding, female) x 2 (Both are shielded.)

• Terminal Arrangement

IO-Link Master Unit

Pin No. Signal Abbreviation

1 Transmission data + TD+

2 Reception data + RD+

3 Transmission data − TD−

4 Reception data − RD−

Shield --- FG

GX-ILM08C

EtherCAT communications connector, OUT

EtherCAT communications connector, IN
