3 Functions of NB-Designer
3-62
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
6

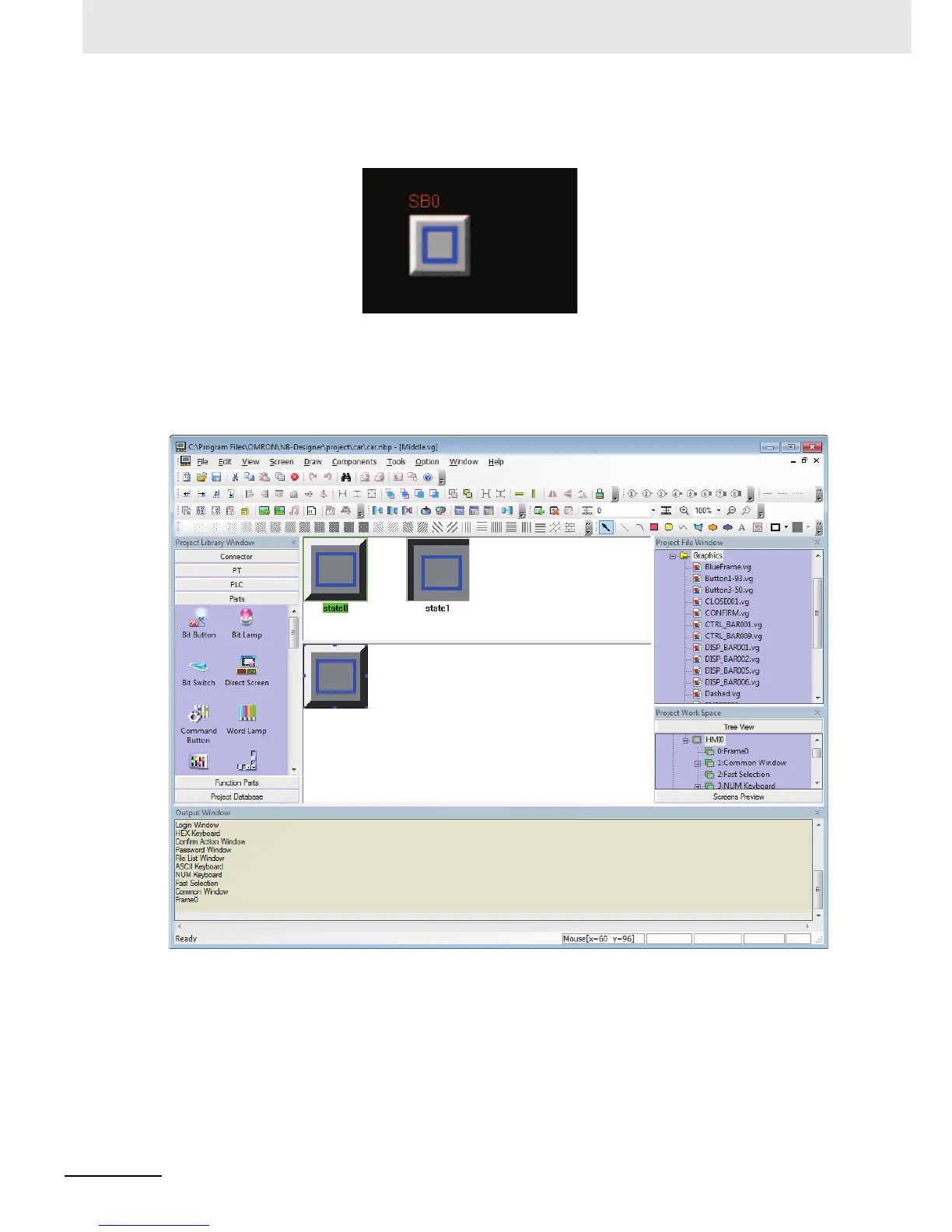

Click the [OK] button to exit from this dialog box, and this component will be displayed as the
selected Vector Graphics and placed in the screen.
All the Vector Graphics imported into the project will be displayed in the [Project File Window].
If you want to modify any Vector Graphics or bitmap, you just need to find the graphics to be modified in
the Vector Graphic in the Project File Window, and double-click it to open the Edit Window of this
graphics, where you can modify the graphics drawn by yourself.
Note 1 When the new graphics was created, the project should be saved to keep the contents. Otherwise the con-
tent will be lost.
2 No text can be added to the Vector Graphics.
