3-61
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-5 Basic Design Method
3
3-5-5 Vector Graphic
3

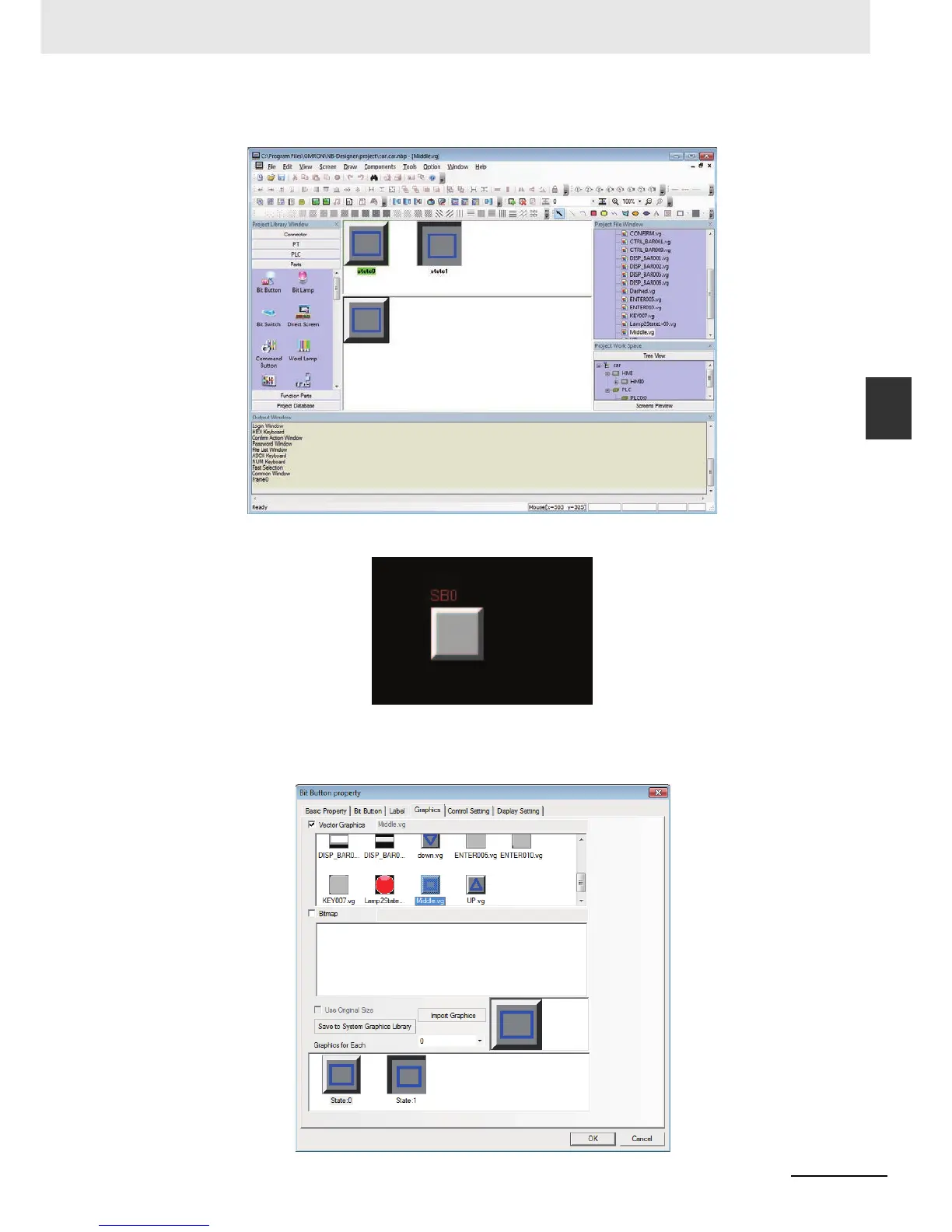

Create the graphics displayed in these two statuses, and then save the project.
4
Go back to the Edit Window, and select one component, as shown below:
5
Check [Vector Graphics] in the [Graphics] tab of Bit Button Property dialog box, and find the
name of the graphics created just now in the list, and then you can check the graphics at the
specific status each.
To Next Page
