3-77
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-5 Basic Design Method
3
3-5-11 Control Setting of Component

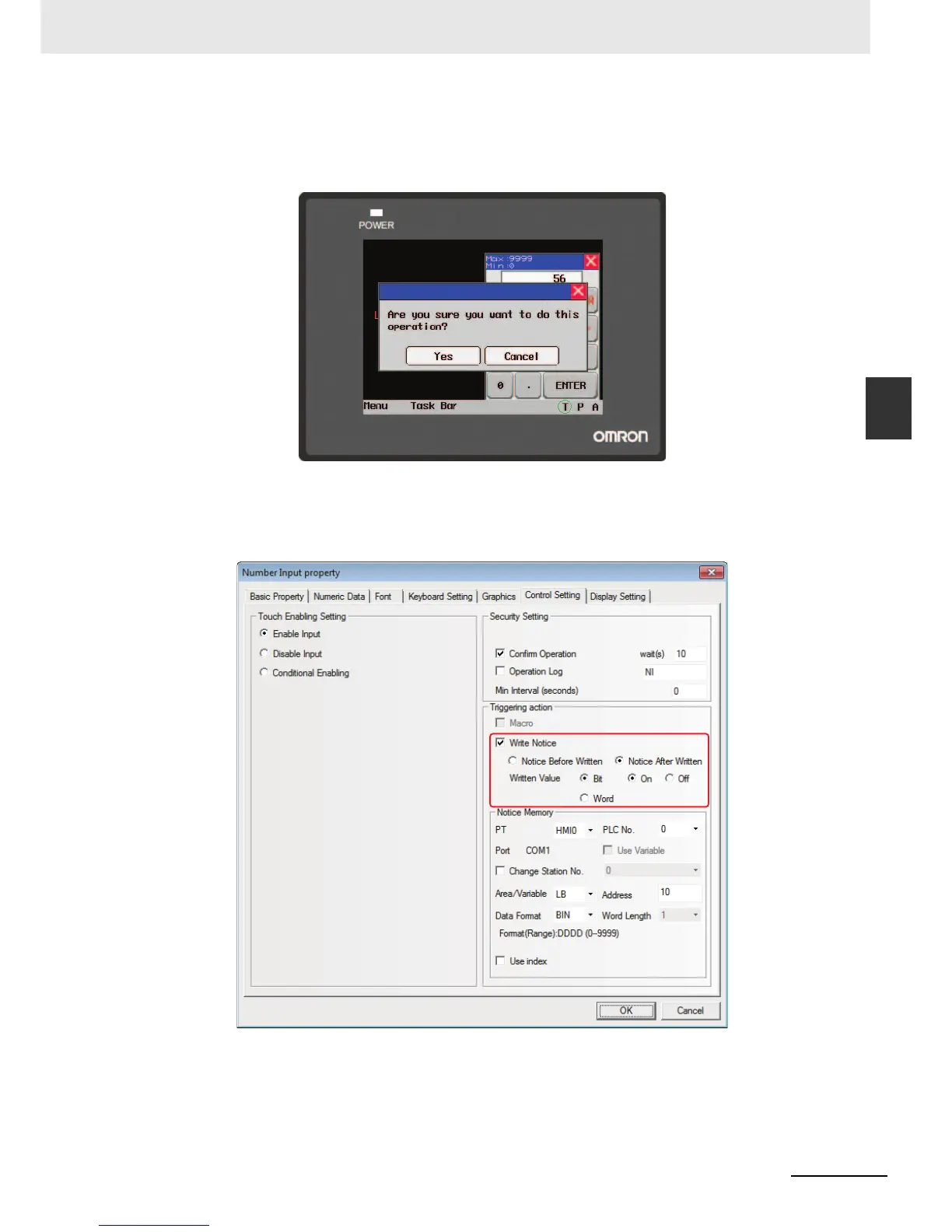

Perform the offline test. Operate the number input component, and the Confirm Screen will pop up
during the confirmation operation. In this case, press “Yes” to input the data successfully, press
“Cancel” to cancel the input. If 10 seconds pass without pressing “Yes” nor “Cancel”, the
Confirmation Screen will disappear automatically.
Example of Notifications
Example: Set LW0 to the address of number input component. Set After Written Notice as LB10 is
ON after writing the address.
To Next Page
