Omron NB-series User Manual

3 Functions of NB-Designer
3-110
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
When the Scaling is selected, the relation is as shown below.
When the reverse scaling is selected, the relation is as shown below.

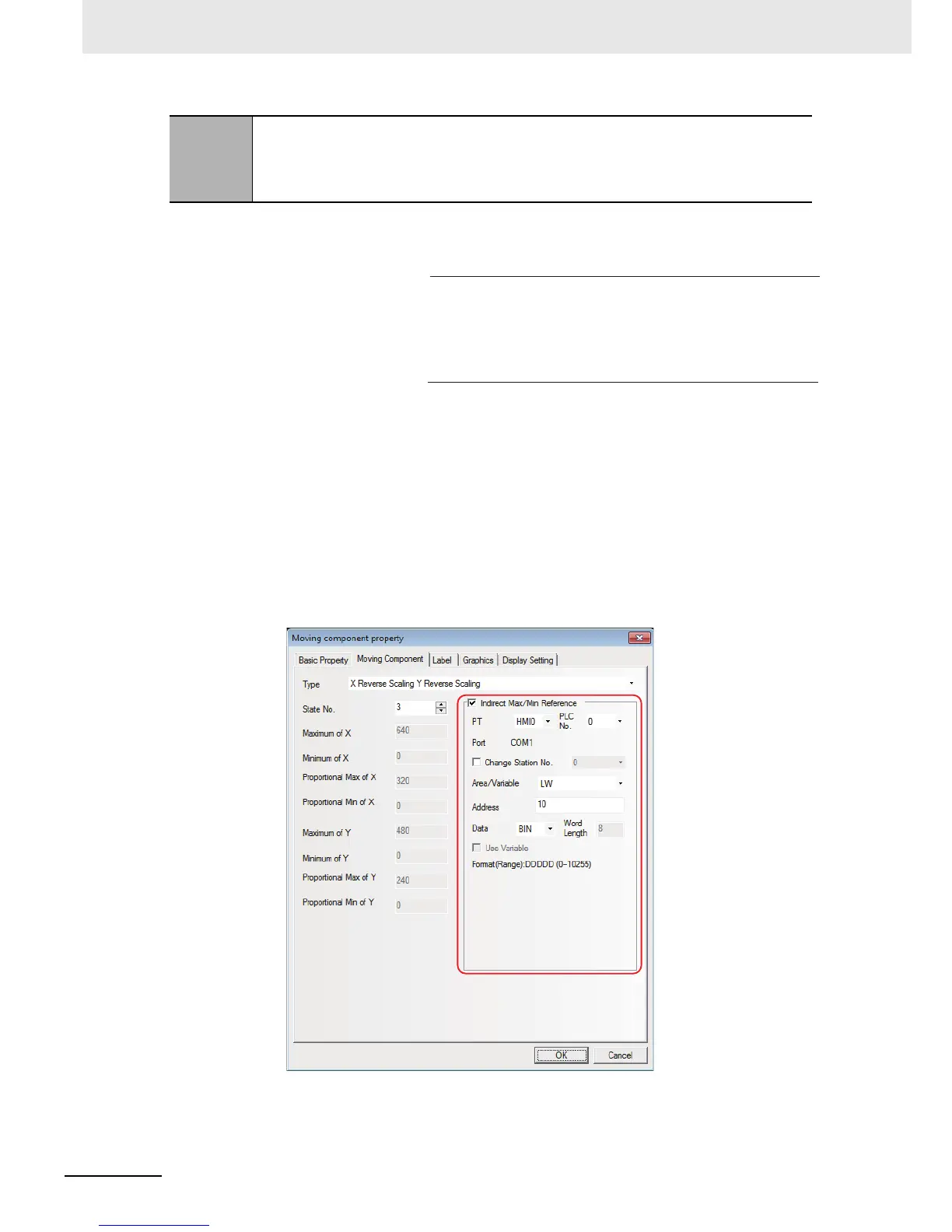

Indirect Max/Min Reference: The upper limits and lower limits of X-axis and Y-axis are directly
read from the memory address.
For example:
It is assumed that the type of the Moving Component is “X Reverse Scaling Y Reverse Scaling”
and the type of indirect address is LW10, then the Minimum of X and Maximum of X are the
values of LW10 and LW11 respectively, and Proportional Lower Limit of X and Proportional
Upper Limit of X are the values of LW12 and LW13 respectively, and the Minimum of Y and
Maximum of Y are the values of LW14 and LW15 respectively, and the Proportional Lower Limit
of Y and Proportional Upper Limit of Y are the values of LW16 and LW17 respectively.
as shown below.
3 Switch to the [label] tab and add the corresponding texts to be displayed.
X Reverse
Scaling Y
Reverse
Scaling
The Moving Component moves horizontally along X-axis and Y-axis, and the relative position to
be moved can be set, and the component can move along the opposite directions of X-axis and
Y-axis. When the value of X-axis is increased, the Moving Component moves leftward, and
when the value is decreased, it moves rightward. When the value of Y-axis is increased, it
moves upward and when the value is decreased, it moves downward.
Display Position=Current Position+
(Maximum Input Value-Minimum Input Value)
Read
Value
--×
Minimum
Input Value
Maximum
Proportianal Value
Minimum
Proportianal Value
(())
Display Position=Current Position+
(Maximum Input Value-Minimum Input Value)
Read
Value
--×
Minimum
Input Value
Maximum
Proportianal Value
Minimum
Proportianal Value
(())
