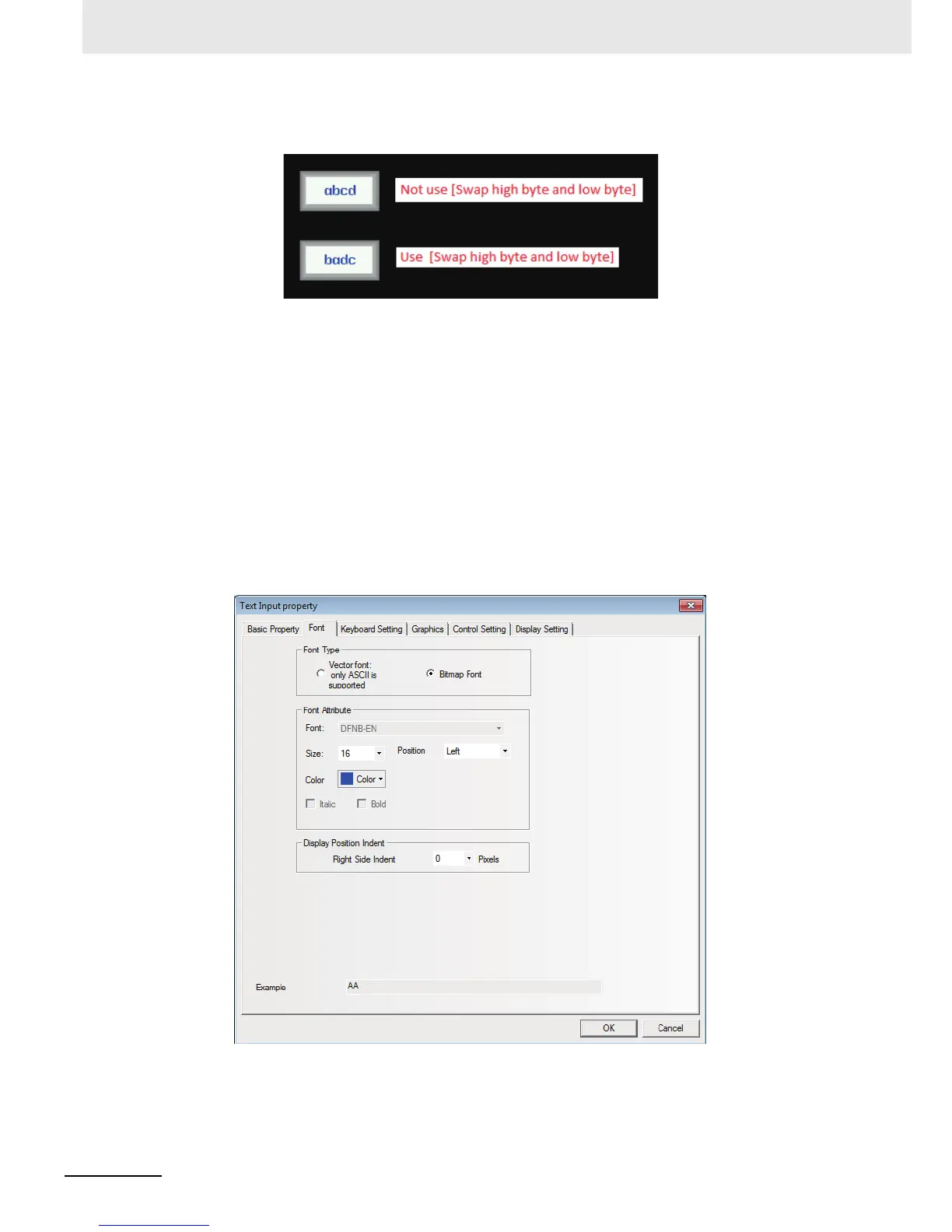

Swap high byte and low byte: Refers to the interchange of the high-byte and the low-byte for the
same byte, as shown below.
Unicode: If you check in the check box for this function, the specified data is dealt as Unicode.
Extended ASCII: Checking this option can display the extended ASCII characters between 0×80
and 0×ff in the ASCII codes. When it is checked, Chinese can’t be displayed in the
Text Input component, Text Display component and Note Book component. Only
one of [Unicode] or [ASCII] can be selected.
Read/Write Address: Refers to the word address (It contains up to 16 words, each of which
contains 2 ASCII characters) displayed and modified by Text Input
component in PLC.
Address: Refers to the first address of the word address corresponding to the Text Input
component.
Word Length: 1~16 are available for the Read/Write Address.
2
Switch to the [Font] tab and fill in the Properties of displayed data referring to that for the
Number Input component.
