Omron NB-series

3 Functions of NB-Designer
3-134
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

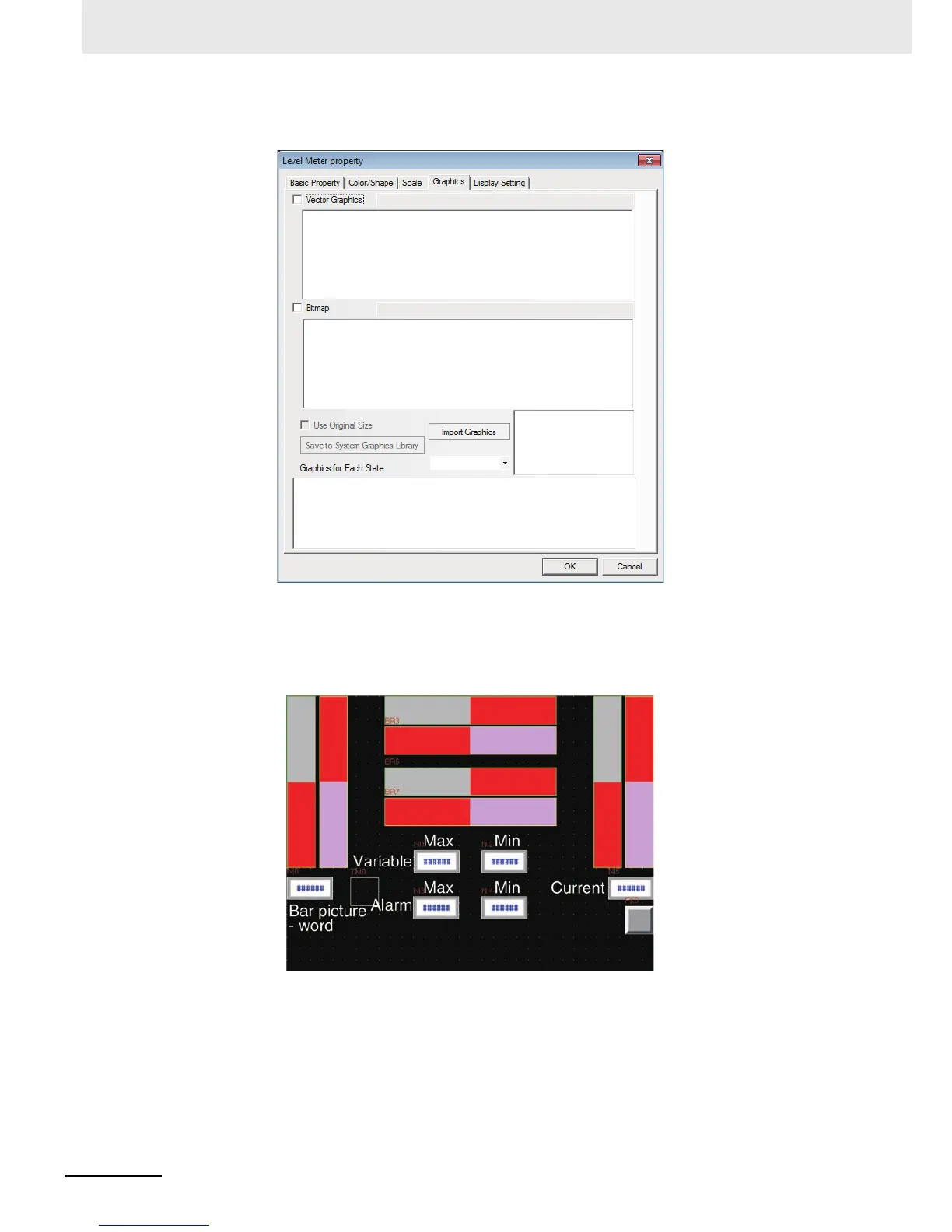

4 Switch to the [Graphics] tab and make settings as shown below.
Select proper graphics for the Bar Picture to improve the display effect.
5 Press the [OK] button to complete the setup of the Level Meter component.
• Level Meter - Word
