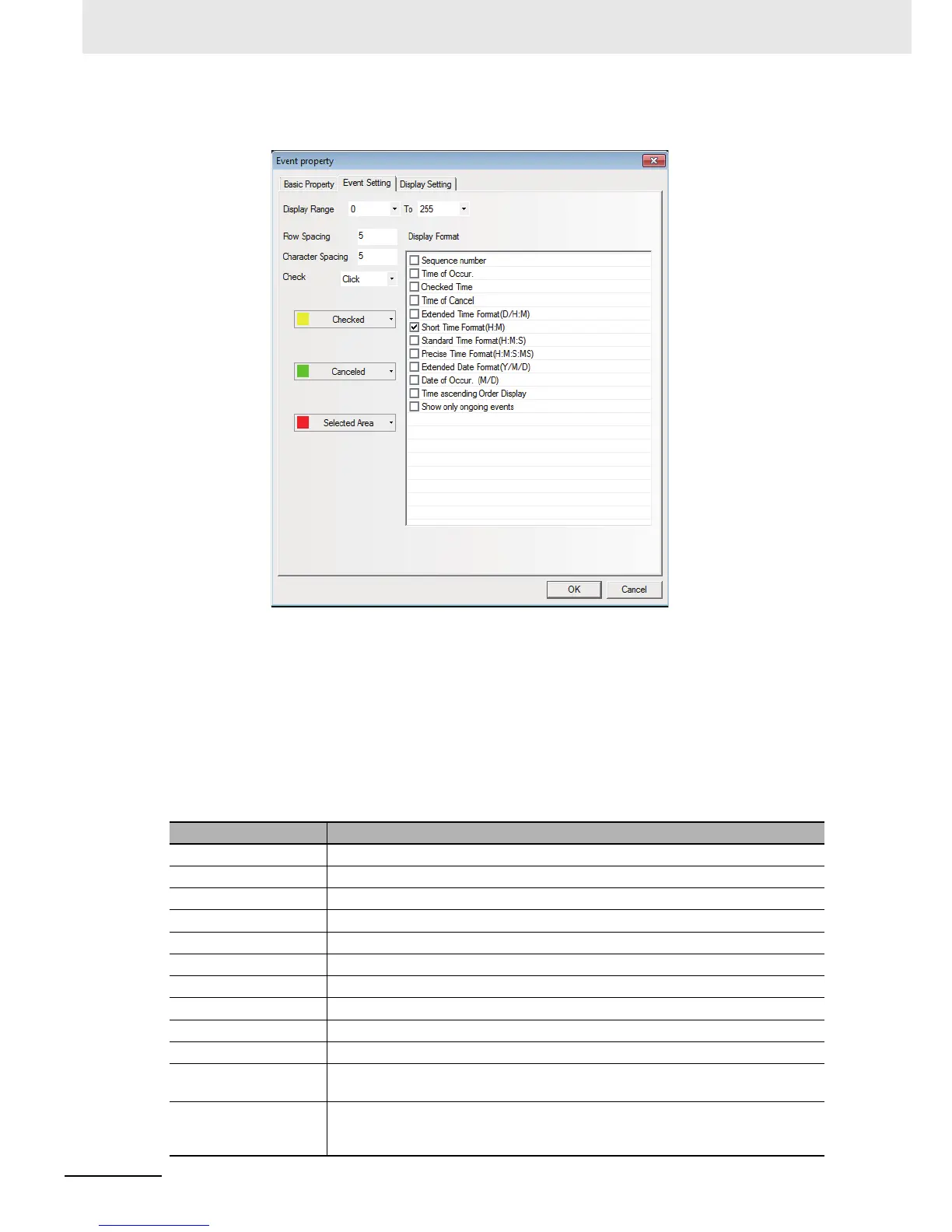

Go to the [Event Information] tab.
Row Spacing and Character Spacing: Refers to the distances between two neighboring lines
and characters. Graphic font ignores this setting.
Check: Includes the [Click] or [Double click].
Checked: Refers to the color after the event is confirmed.
Canceled: Refers to the color after the event is released.
Select Area: Indicates the color of the dotted line representing the selected area.
Display: Refers to the format of the Event Information Display. All the added contents (such as
Sequence No. and Event Trigger Time) are displayed in the front of the event
information.
Format Content Descriptions
Sequence Number Refers to the Event No. beginning from 0.
Time of Occur The time when the event is triggered.
Checked Time The time when the event is confirmed.
Time of Cancel The time when the event is released. (i.e. returns to normal).
Extended Time Format The time format is displayed as Day/Hour: Minute.
Short Time Format The time format is displayed as Hour: Minute.
Standard Time Format The time format is displayed as Hour: Minute: Second.
Precise Time Format The time format is displayed as Hour: Minute: Second: Millisecond.
Extended Date Format The data format is displayed as Year/Month/Date.
Date of Occur The data format is displayed as Month/Date.
Time ascending Order
Display
The event is displayed in the ascending order.
Show only ongoing
events
Only the event that is trigged is displayed here. And the released event will not be
displayed in the Event list. If this option isn’t checked, the events occurred before but
return to normal will still be displayed in the event list unless the event list is cleared.
