Omron NB-series

3 Functions of NB-Designer
3-238
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

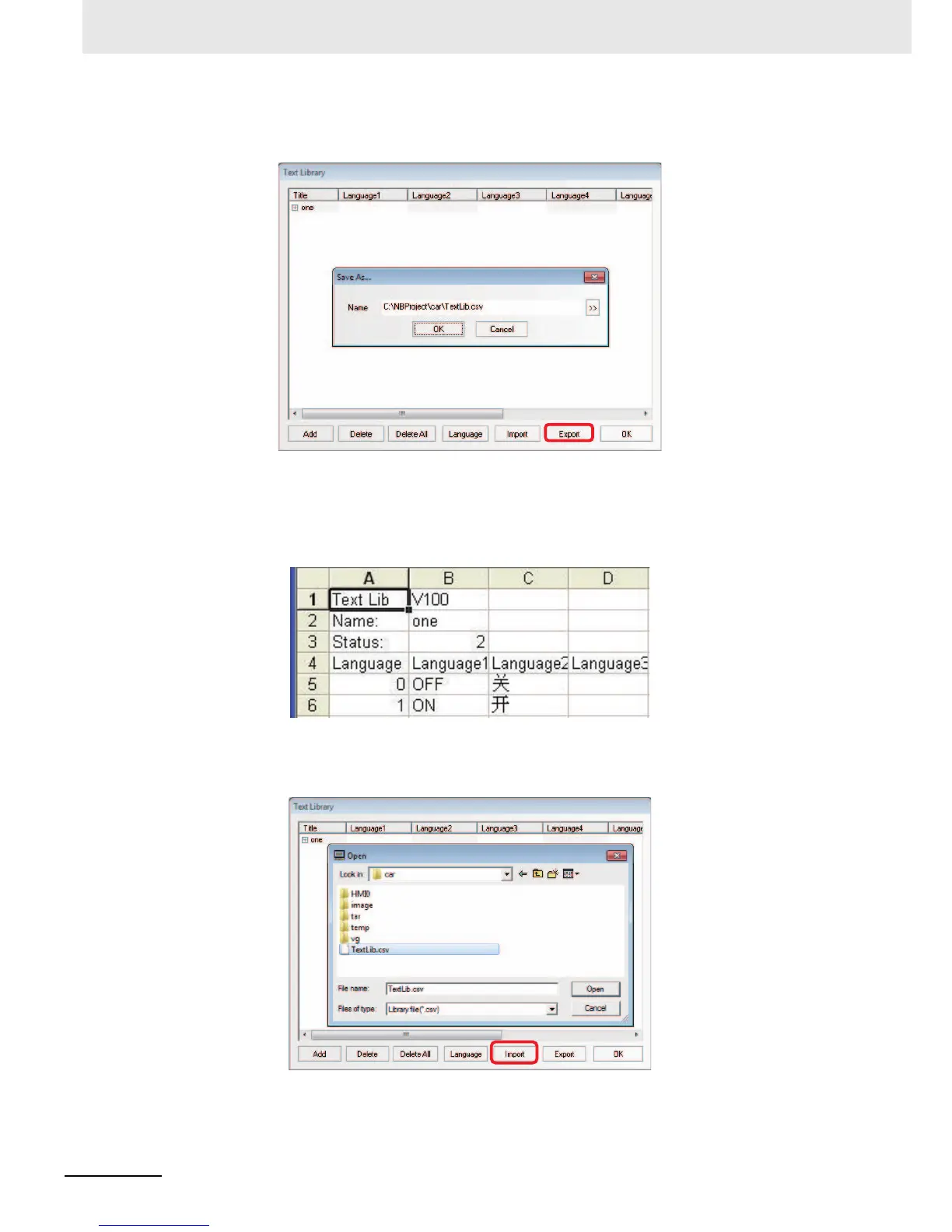

 Export Text Library
(1) The following dialog box will pop up after “Export” is clicked.
(2) Click [OK] to export the file. In order to change the destination to save the file and the
filename, click [>>] and specify the destination to save the file to and the filename.
(3) If the exporting is completed, the message saying “The file is exported successfully!
” will be
pop up.
The opened export file in .csv format is as shown below.
 Import Text Library
(1) The following dialog box will pop up after “Import” is clicked.
(2) After confirming the CSV file supposed to be imported is not opened by other software,
select the CSV file and click [Open].
(3) If “Import file successfully” pops up, it means the import is successful.
