3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-8 Project Database
3
3-8-2 Variable Table
2

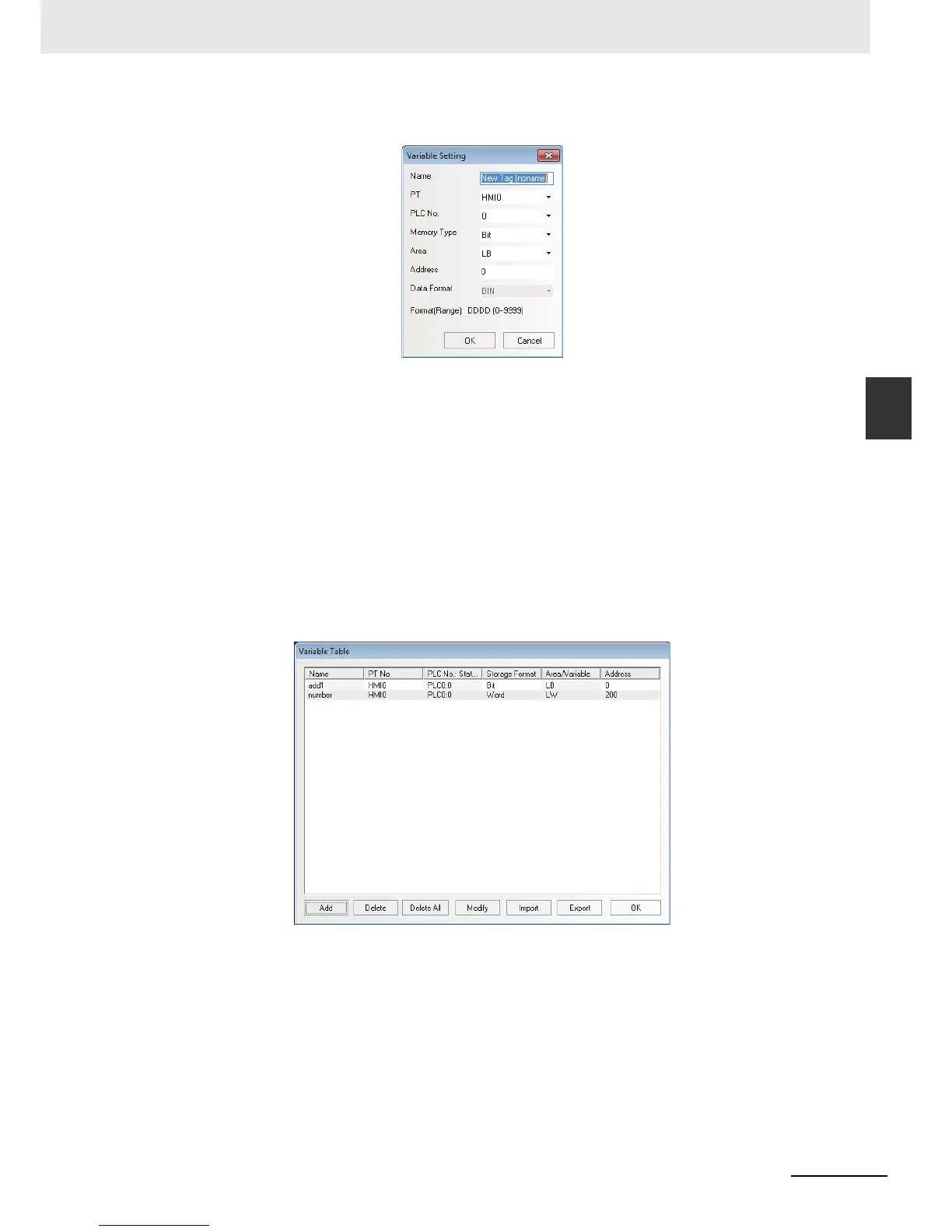

Click “Add” to make the following small dialog box pop up.
Name: Inputs the name of this variable.
PT: Selects the No. of PT corresponding to this variable.
PLC No. : Selects the No. of PLC corresponding to this variable.
Memory Type: Selects the memory type corresponding to this address from “Bit” or “Word”.
Area: Selects the area corresponding to this variable from “the internal memory of the PT” and
“the memory of the PLC”.
Address: Specify the address corresponding to the adding address.
Data Format: Select the data format of the adding address from “BIN” or “BCD”.
Format (Range): Displays the address format (the address range) of this variable.
3
Input the above-mentioned items respectively, and click “OK”, then the variable will appear in
the library.
