3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-8 Project Database
3
3-8-4 Event Setting
2

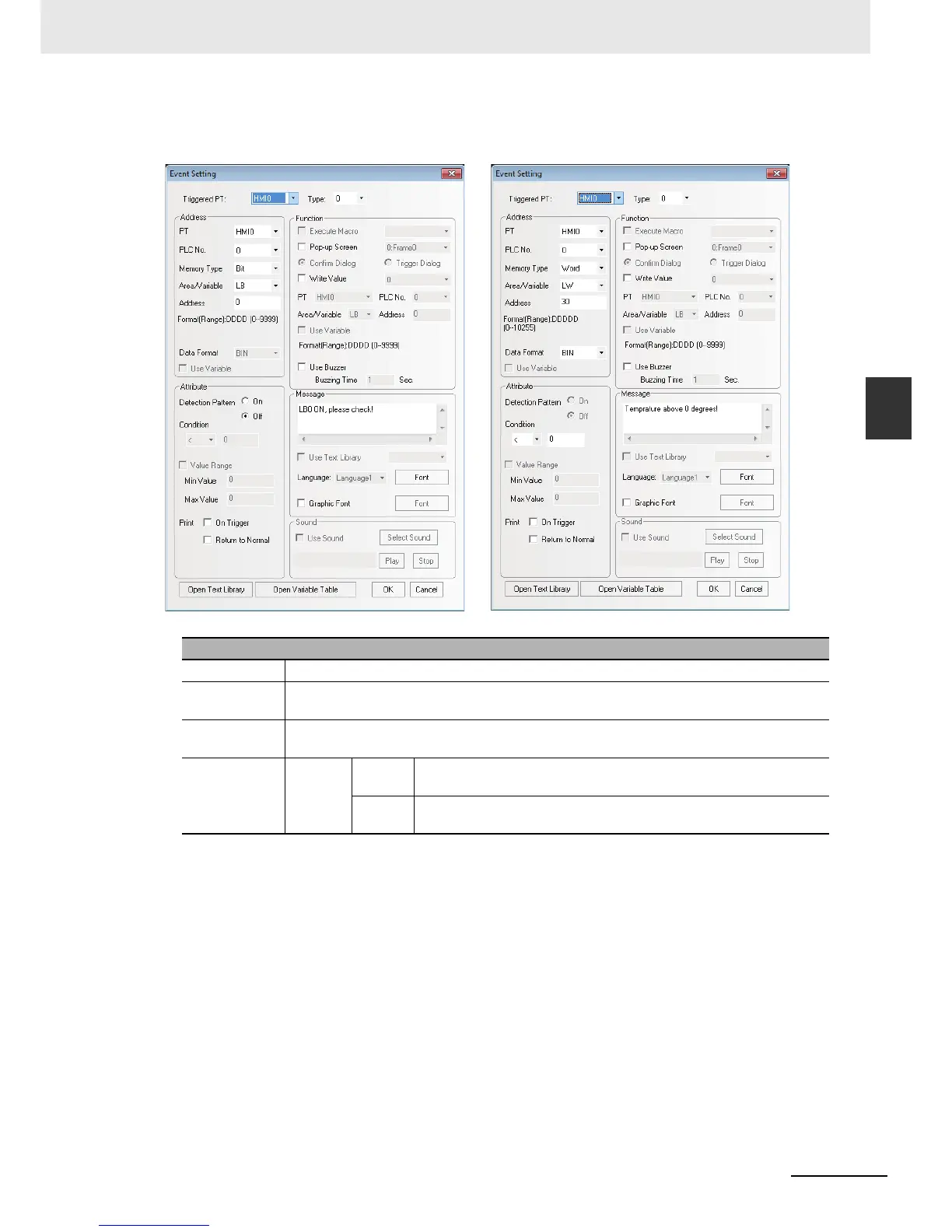

Select the [Add] button to add the information or select the [Modify] button to modify the
existing information.
Descriptions of Event Information Properties
Triggered PT Select one PT to specify the Event Setting when multiple PTs were registered to the project.
Type Classifies the events and the available type is from 0 to 255. [Event Display] tab of the Event
Display component can restrict the displayed event type.
Address Specify the register working as the trigger of the event. The type of memory can be changed
into “Bit” or “Word” through “Data Type”.
Attribute Bit ON When the state of the bit address is turn from OFF to ON, one
specified event record will be displayed.
OFF When the state of the bit address is turn from ON to OFF, one
specified event record will be displayed.
