3-9 Macro Function
3
3-9-4 Other Descriptions
“nRegs” refers to number of words. That’s to say, the program will read 2-word data beginning
from LW200 and then write 2 words to LW202. In order to confirm this code segment will be
executed successfully, you should place 4 Number Input components and 1 Function Key to

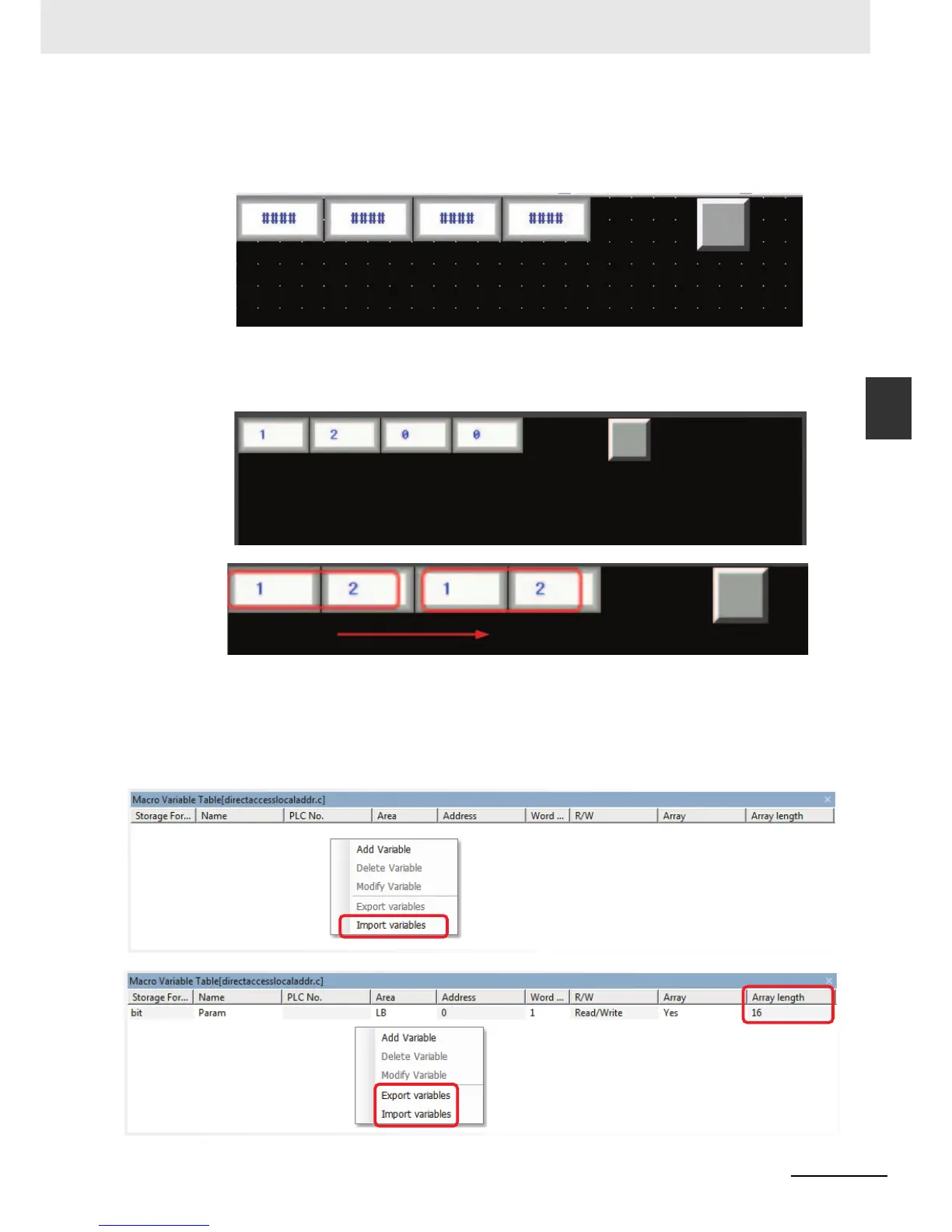

execute the Macro in the Edit window, as shown below:
Perform the offline test:
Make LW200=1 and LW201=2, then click the [Macro] button, and you will find LW202=1 and
LW203=2. The Macro is executed normally.
4
[Import variable/Export variable] functions are provided for user to copy Macro variables and
Macro.
Right-click “Macro Variable Table [directaccesslocaladdr.c]”, you will see the [Import variables]
option; and you will see the [Export variables] option is also valid after you have created a new
variable.
