3 Functions of NB-Designer
3-334
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

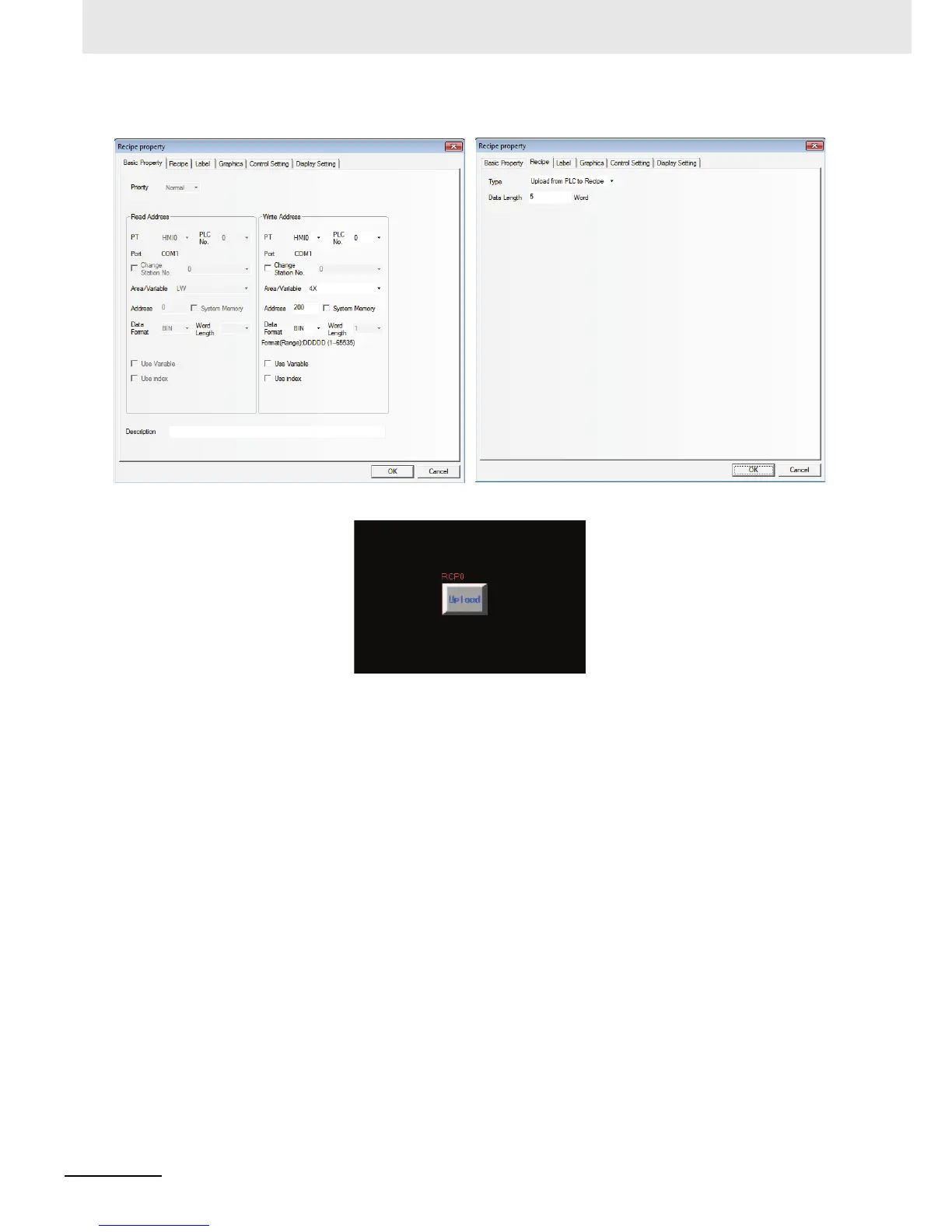

Then place the component in the screen.
Now the recipe data transmission component is created, but it can only specify to transfer the 5 words
beginning from address of 4X200 to the recipe memory instead of the specific position of the recipe
memory. Set the LW9000 to 300 and press “Upload” button, then the 5 words beginning from 4X200 will
be transferred to the 5-word addresses after the start address of RW300. If you want to transfer the 5
words beginning from the address of 4X200 to RW100 again, then you just need to set LW9000 to 100,
and then press “Upload” button to complete the data transmission.
Place 3 Text Input components to modify/display the data.
(1) 4X200: Area/Variable of 4X, Address of 200 and Word Length of 5.
(2) RWI0: Area/Variable of RWI, Address of 0 and Word Length of 5.
(3) RW300: Area/Variable of RW, Address of 300 and Word Length of 5.
Then create one Number Input component to modify the data of LW9000. Specify LW for
[Area/Variable] and 9000 for [Address].
