3-335
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-12 Recipe Data
3
3-12-2 Recipe Memory

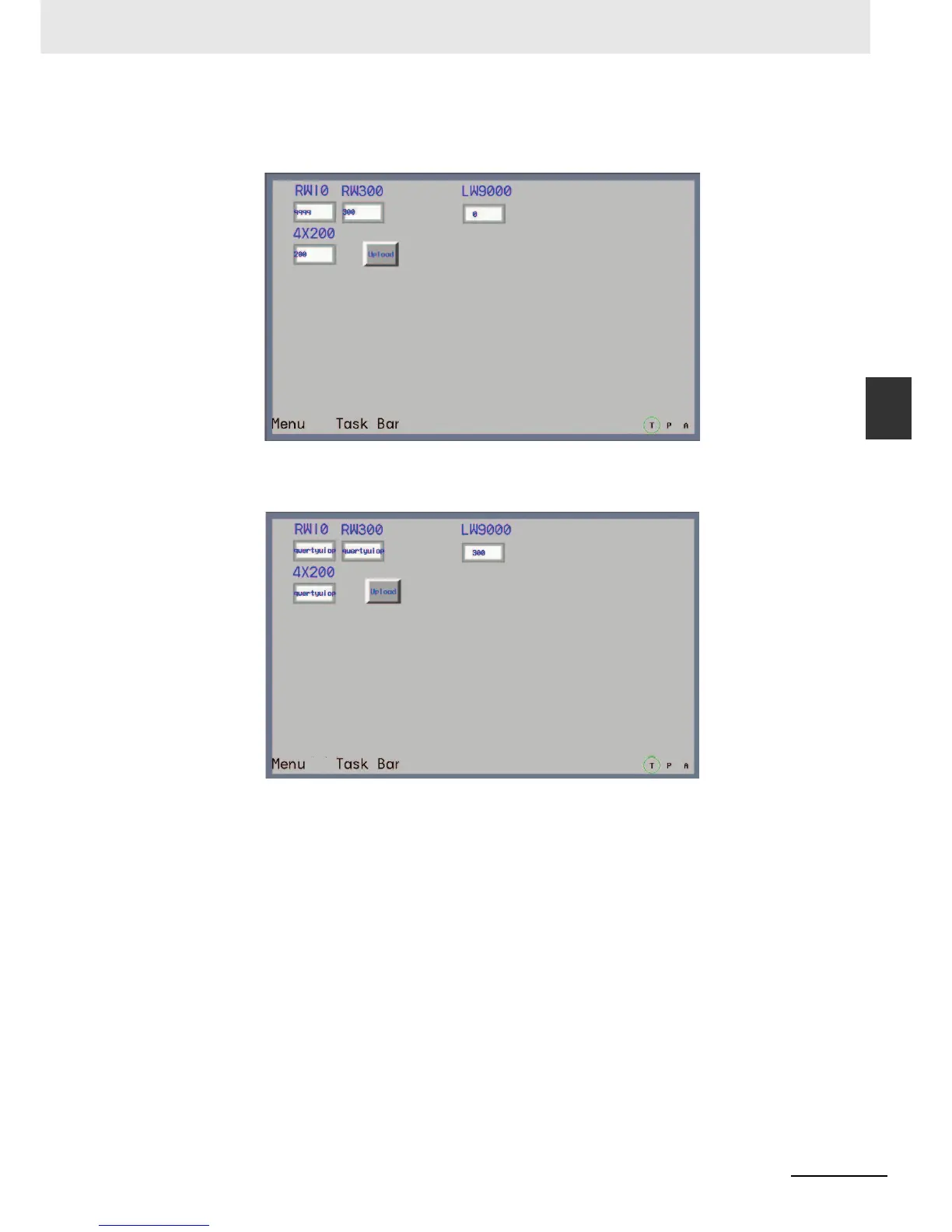

After Save, Compile operations, perform the offline test for the project. Firstly, change LW9000 to 300
(because LW9000 represents the offset of the index address, RWI0 will display the data in the address
of RW300), as shown below:
Input “QWERTYUIOP” to 4X200, and 300 to LW9000, then you will find the data displayed by RWI0,
RW300 and 4X200 is the same after the Upload button is pressed, as shown below, which means the
upload is successful.
How to download the 5 words with the start address of RW300 to the position with the start address of
4X200? The specific operation process is described as follows. Add one recipe data transmission
component in the project just mentioned above with the Area/Variable of 4X, Address of 200, Function
of Download from Recipe to PLC, Word Length of 5 and Label of “Download”.
To Next Page
