3-343
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-13 Security Level
3

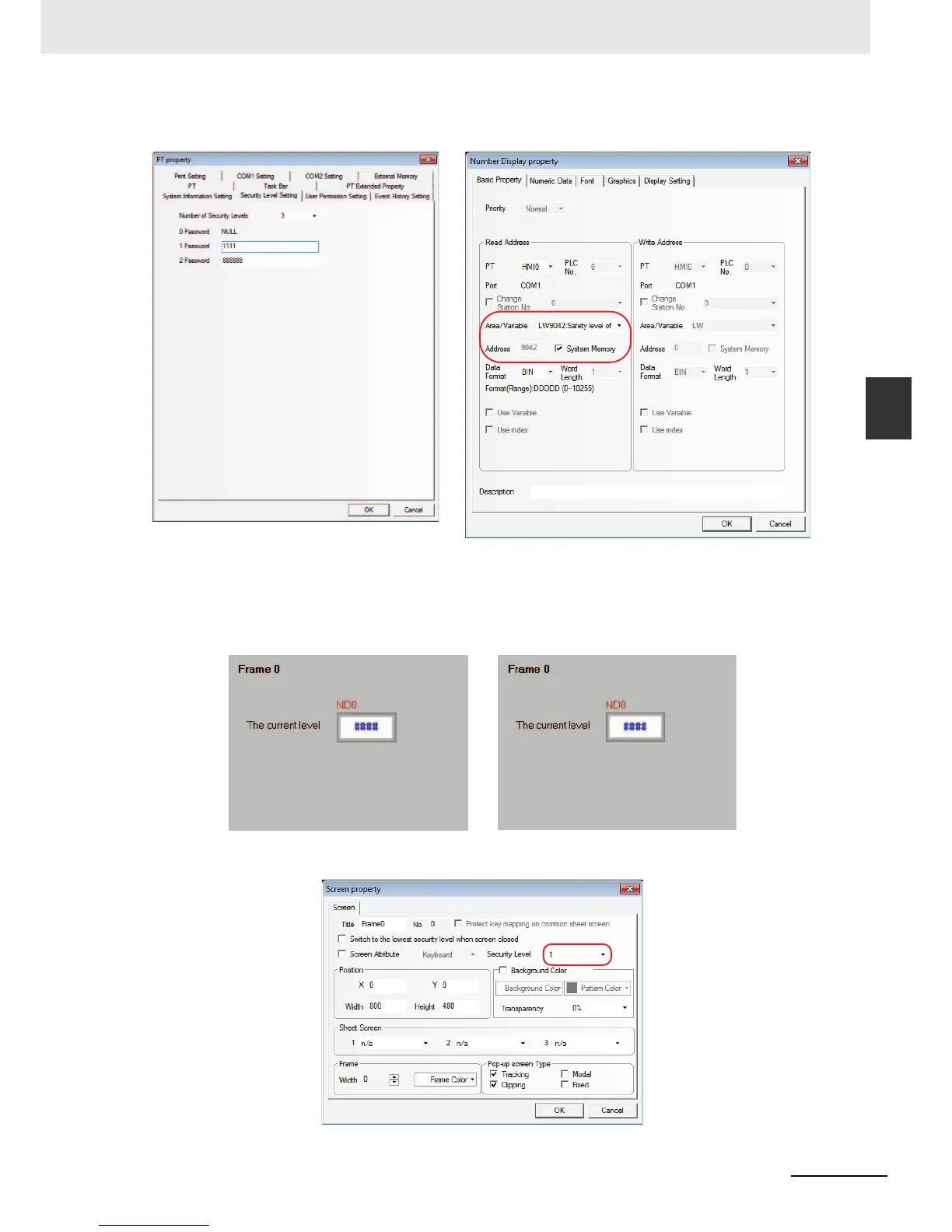

LW9042 reserved by the system is used to indicate the security level of the current Base Screen.
Create one Number Display component and place it into Frame 0 to display the current security level,
as shown below.
The project is shown as the lower left graphics and the effect is as shown in the lower right graphics
after Save, Compile and Offline test operations are done.
Because no password is input, the security level at initial state should be 0. Then specify the security
level to Common (1) in Screen Property of Frame 10 as below.
