3 Functions of NB-Designer
3-344
NB-series Programmable Terminals NB-Designer Operation Manual(V106)

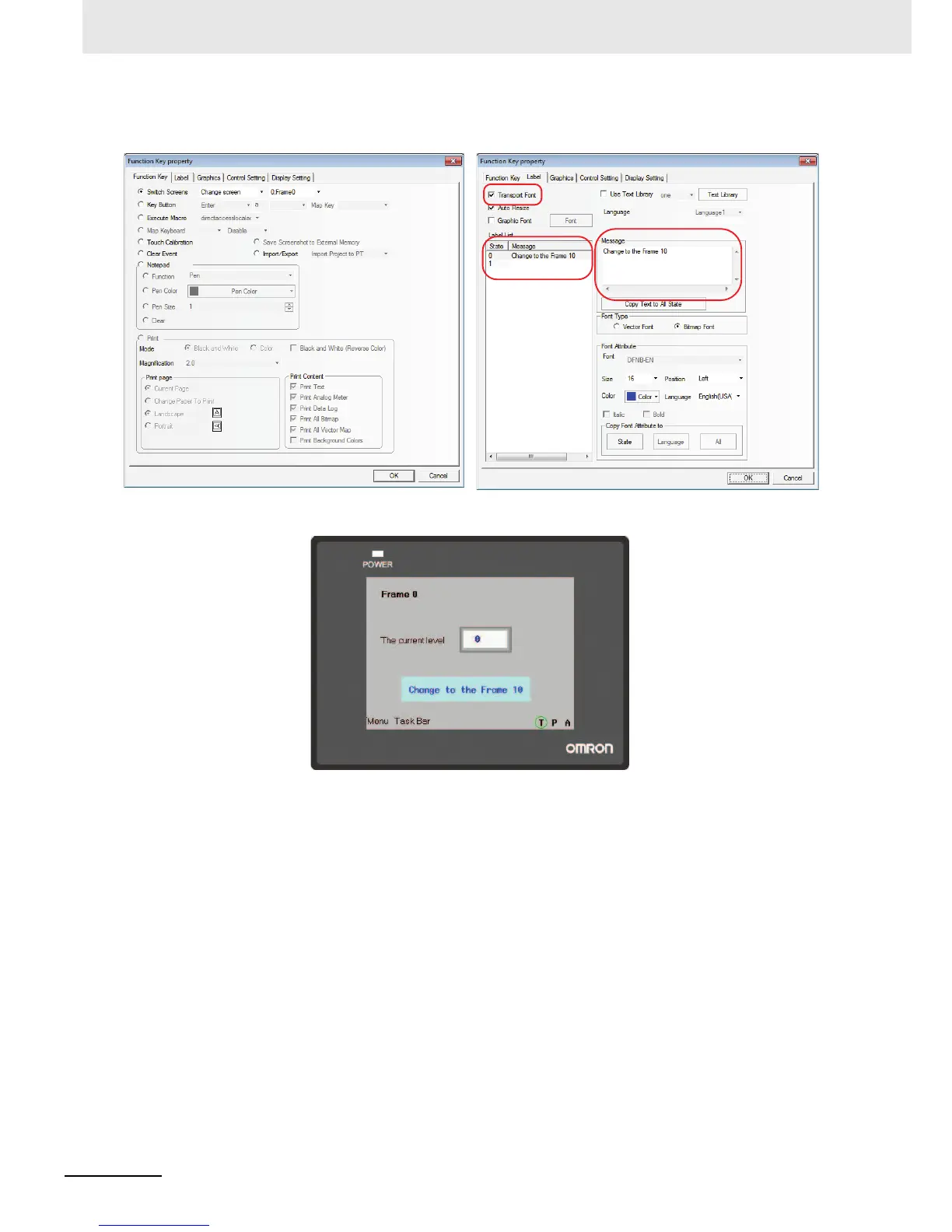

Create one Function Key in Frame 0 with the Properties as follows:
Perform Save, Compile and Offline test operations, and the effect is as shown below:
Pressing the Function Key button can’t switch to Frame 10. It is because the current security level is 0
while the security level of Frame 10 is 1, so the screen with the higher security level can’t be accessed
from the screen with the lower security level. We can access the higher security level screen only after
inputting the password corresponding to the higher security level. LW9040 to LW9041 reserved by the
system are used to input the security level passwords. Then place another Number Input
component with the Storage Format of “password” in Frame 0, as shown below:
