3 Functions of NB-Designer
3-376
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
18
Save as Vector Graphics
Storing the graphics created from multiple graphic components allows the diversion to the
other screens.
The operation is as follows:

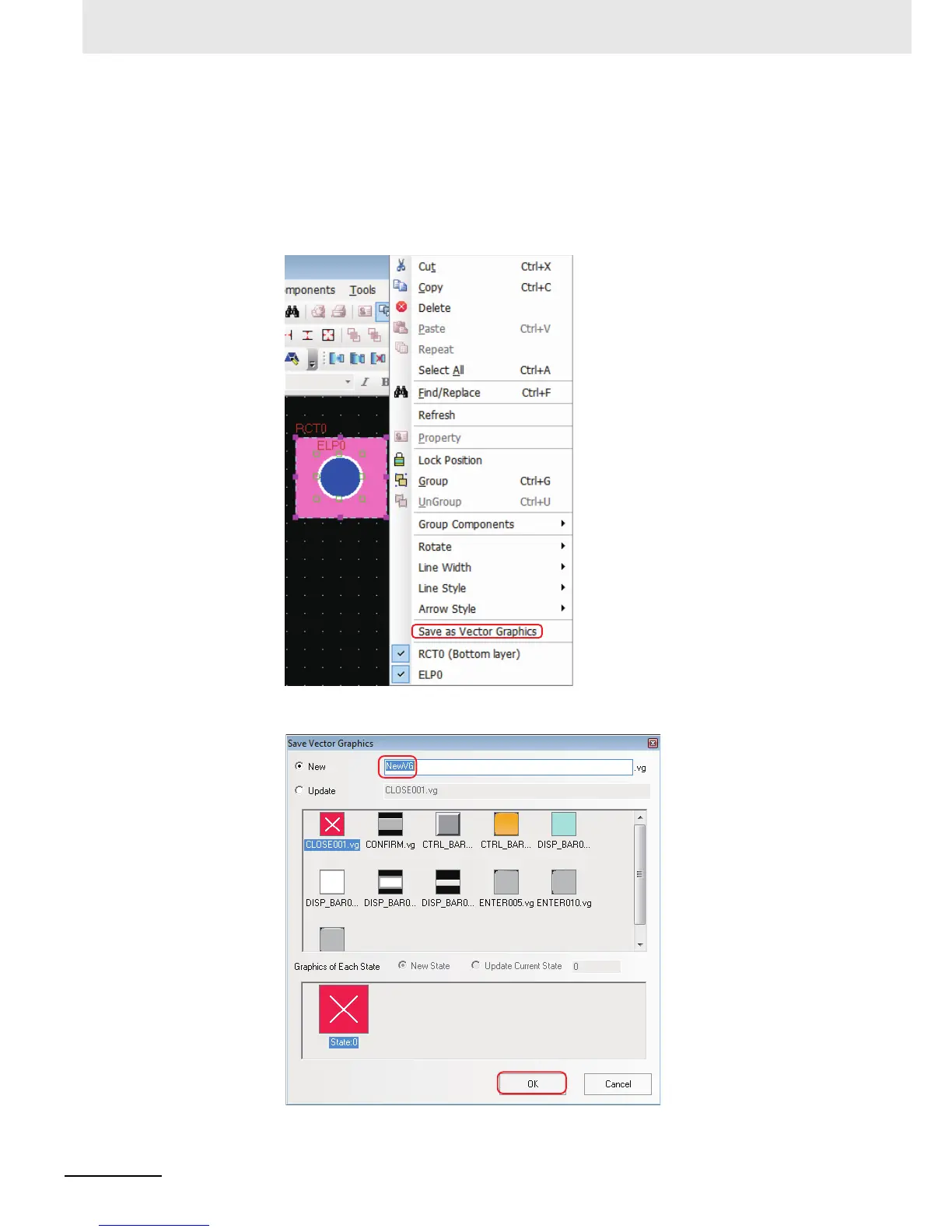

(1) Draw a rectangle and a circle, then select these two components and right-click the mouse
to select [Save as Vector Graphics].
(2) In the pop-up [Save Vector Graphics] dialog box, [New] is checked by default, and the
default name is NewVG. Click the [OK] button.
