Omron NB-series

3-387
3 Functions of NB-Designer
NB-series Programmable Terminals NB-Designer Operation Manual(V106)
3-16 Other Functions
3

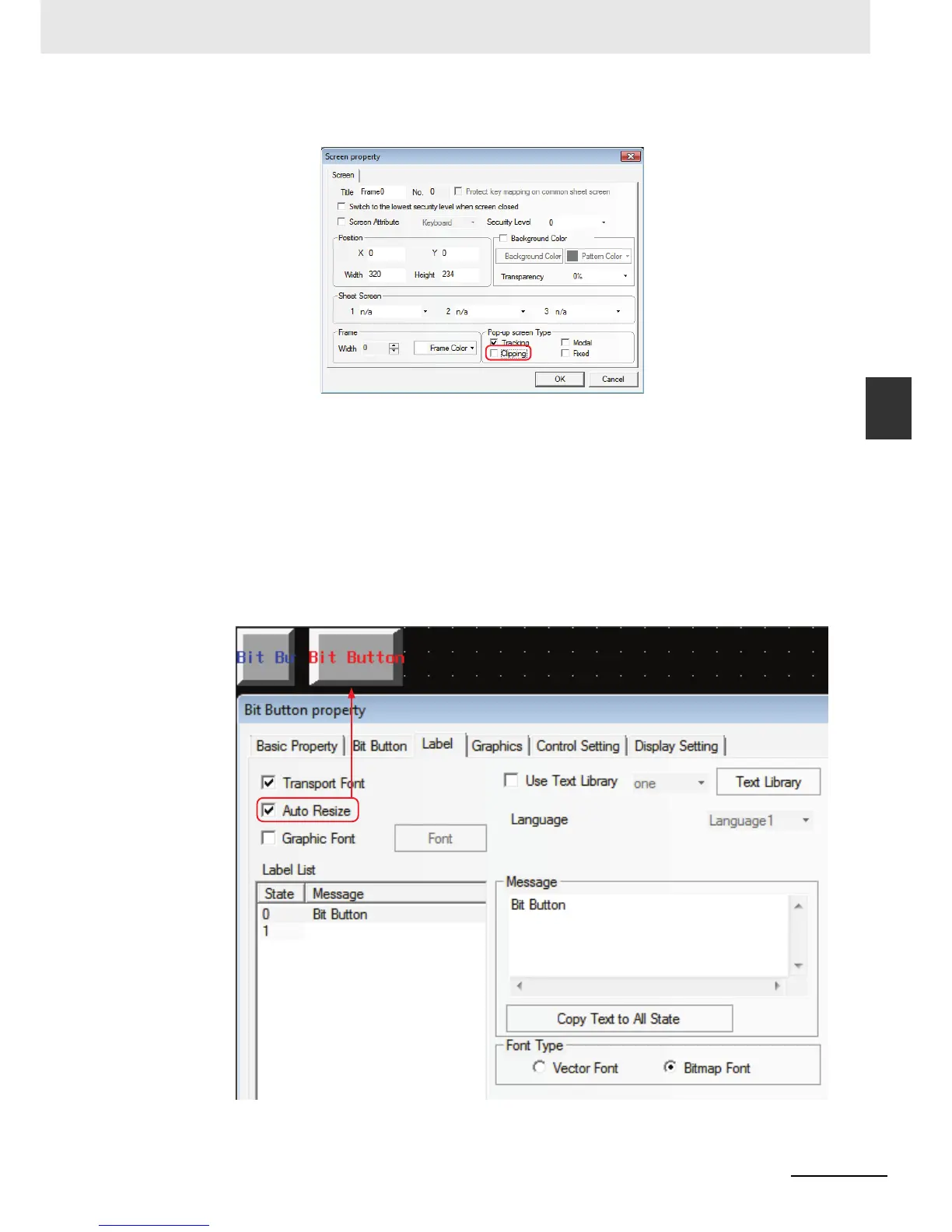

Note If the keyboard is called by the Pop-up Screen, [Clipping] in Pop-up Screen Type must not be checked, as
shown below:
21 Auto Size
Checking in the [Auto Size] check box in the [Label] tab, when the label is too long or the
multiple languages with different sizes, allows adjustment the size of the component. [Auto
Size] is checked by default.
After [Auto Size] is checked, when the length of label exceeds the width of the component, the
component will be extended automatically, thus making all the contents of the label displayed
completely.
If [Auto Size] is not checked, when the length of label exceeds the width of the component, the
component will not be extended automatically, thus making part of contents of the label
displayed. The effect is shown as below.
