3-2-3 View Menu
Repeat
With this function, one component can become multiple components through the copy operation,
thus saving a lot of time. You can make the multiple components available by clicking icon or
right-clicking [Repeat] in the corresponding menu after the component being selected, as shown
below.

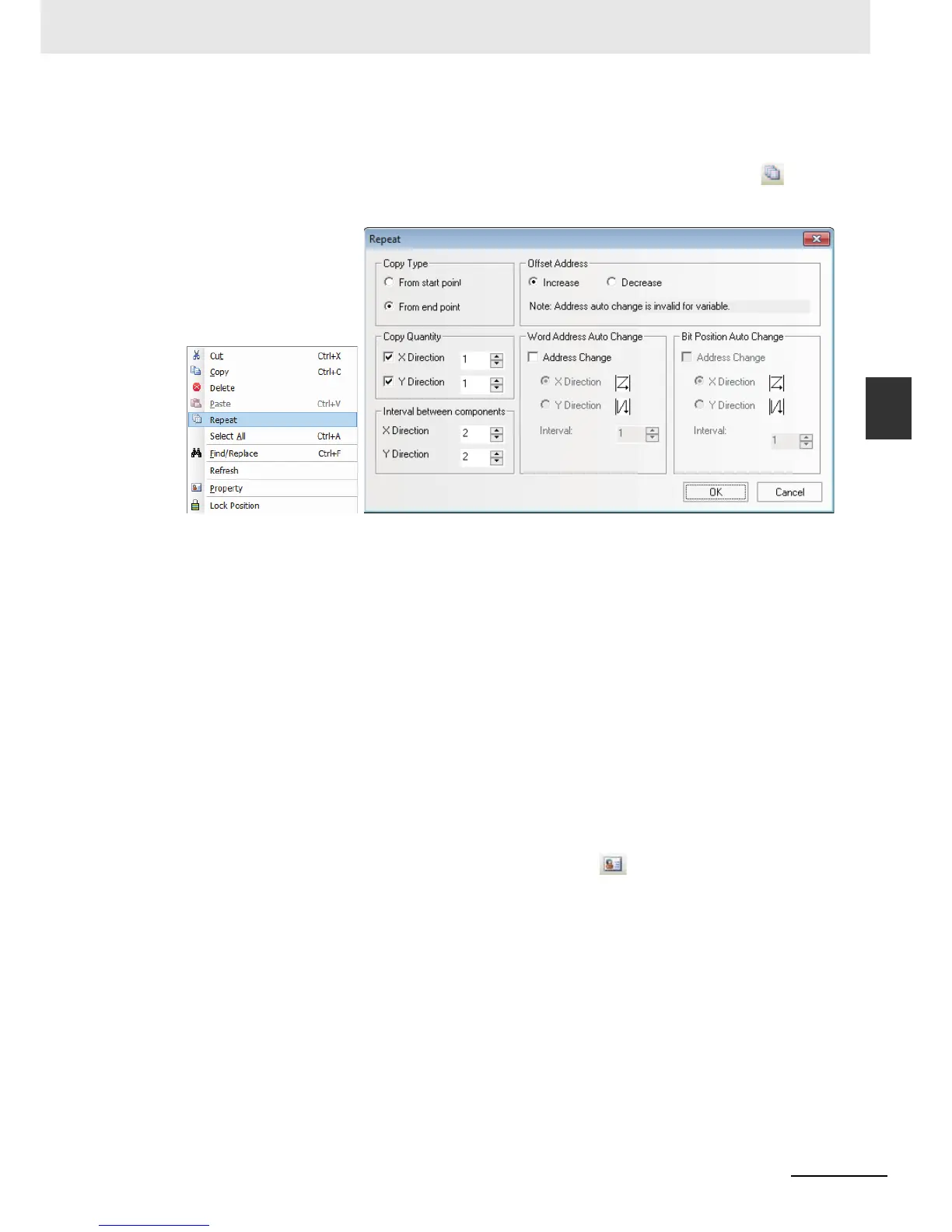

Copy Type: Selecting [From start point], the copied component to be arranged according to the
upper left top of the component as the reference point.
Selecting [From end point], the copied component to be arranged according to the lower right top of
the component as the reference point.
Copy Quantity: The number of the copied component in each line and each column.
Interval between components: Specifying the horizontal interval and vertical interval between the
two of the copied components.
Offset Address: The address of the copied component increases/decreases in X, Y directions.
Word Address Auto Change: The word address of the copied component increases/decreases in X,
Y directions.
Bit Position Auto Change: The bit address of the copied component increases/decreases in X, Y
directions.
Interval: To select the address increment among the copied components.
[Property]: When changing the property of the components, select and double-click the component
which is necessary to change the property. Also clicking the icon and displaying [Property]
dialog box allow the property of the component edited.
