266
Method for Making the Cable for Connection to the Host
Appendix G

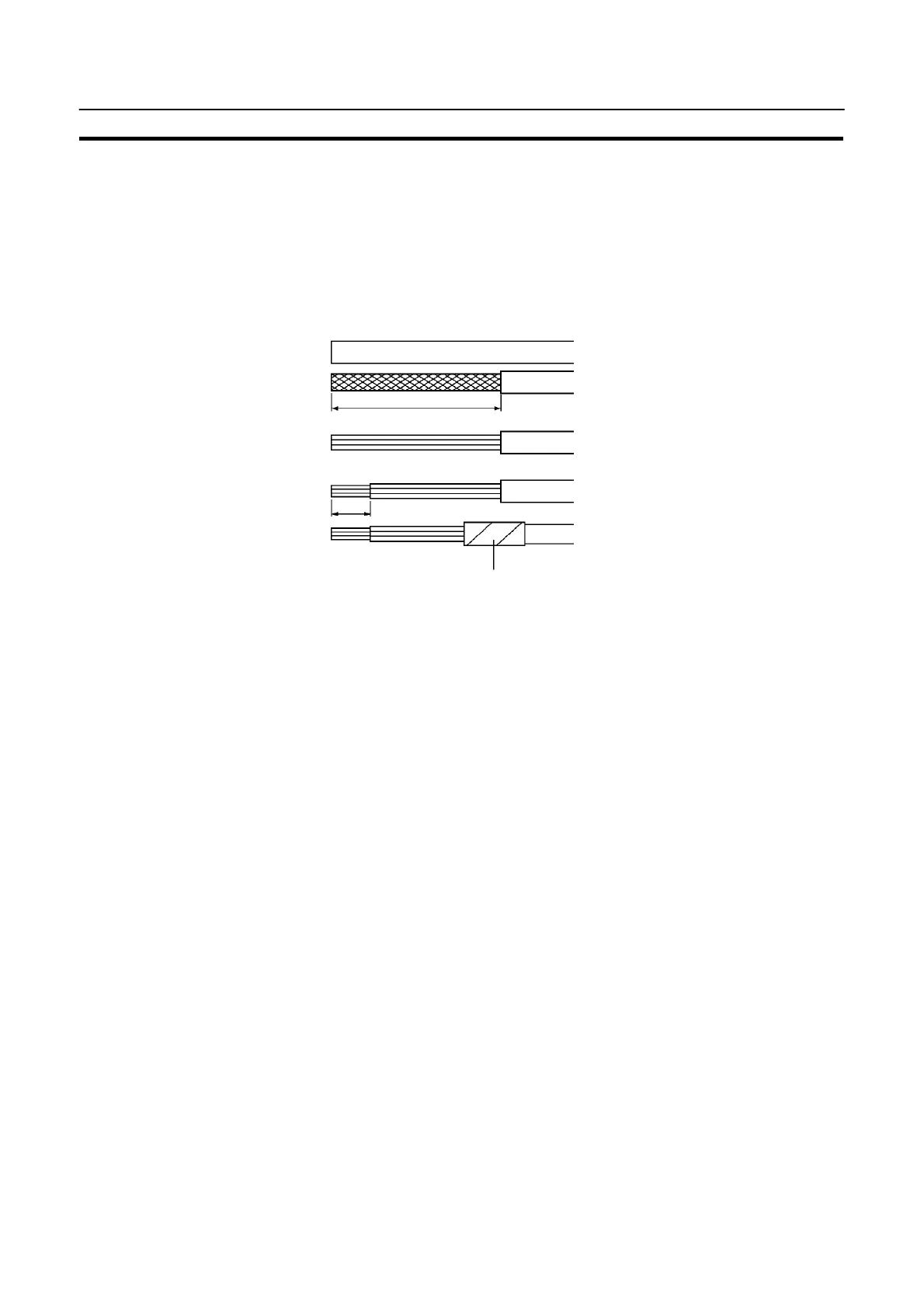

S Cable with Shielding Wire Not Connected to FG
(1) Cut the cable to the required length.
(2) Remove the external vinyl insulation from the cable with a razor blade. Take care not to damage the shielding
underneath.
(3) Cut back the shielding wire with scissors.
(4) Use wire strippers to strip the insulation from each wire.
(5) Wrap vinyl tape over the cut off end of the shielding wire.
Vinyl tape
(1)
(2)
(3)
(4)
(5)
[Units: mm (in.)]
5(0.19)
40(1.57)(RS-232C)
25(RS-422A)
To Next Page
