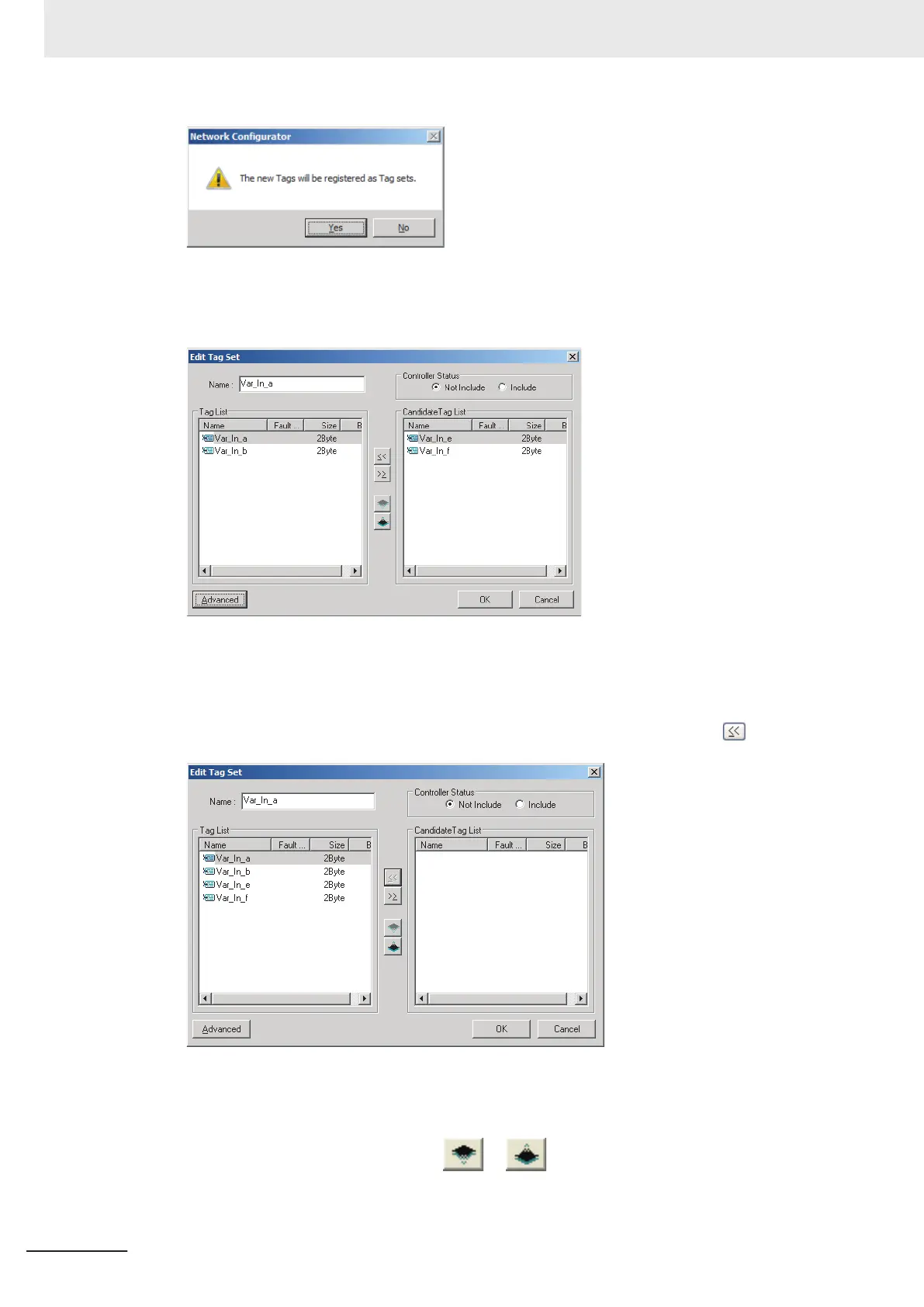

10 To register the newly added tags in an existing tag set, either double-click the desired tag set,
or select the tag set and click the Edit Button.
The Tag List on the left side of the dialog box shows tags that are already registered in the tag
set, and the Candidate T
ag List on the right side of the dialog box shows the other tags that are
not registered yet.
11 Select the tags that you want to add from the Candidate Tag List and click the
Button.
You can register up to eight tags in a tag set. (If you include the Controller status in the tag set,
you can register up to only seven tags, and two bytes are added to the size.)
Tag data is sent and received in the order of tags displayed in the tag list. To change the order
of tag data, select a tag and click the or Button.
12 To confirm the change, click the OK Button in the Edit T
ag Set Dialog Box.
