To add a tag, select it in the Candidate T
ag List and click the
Button.

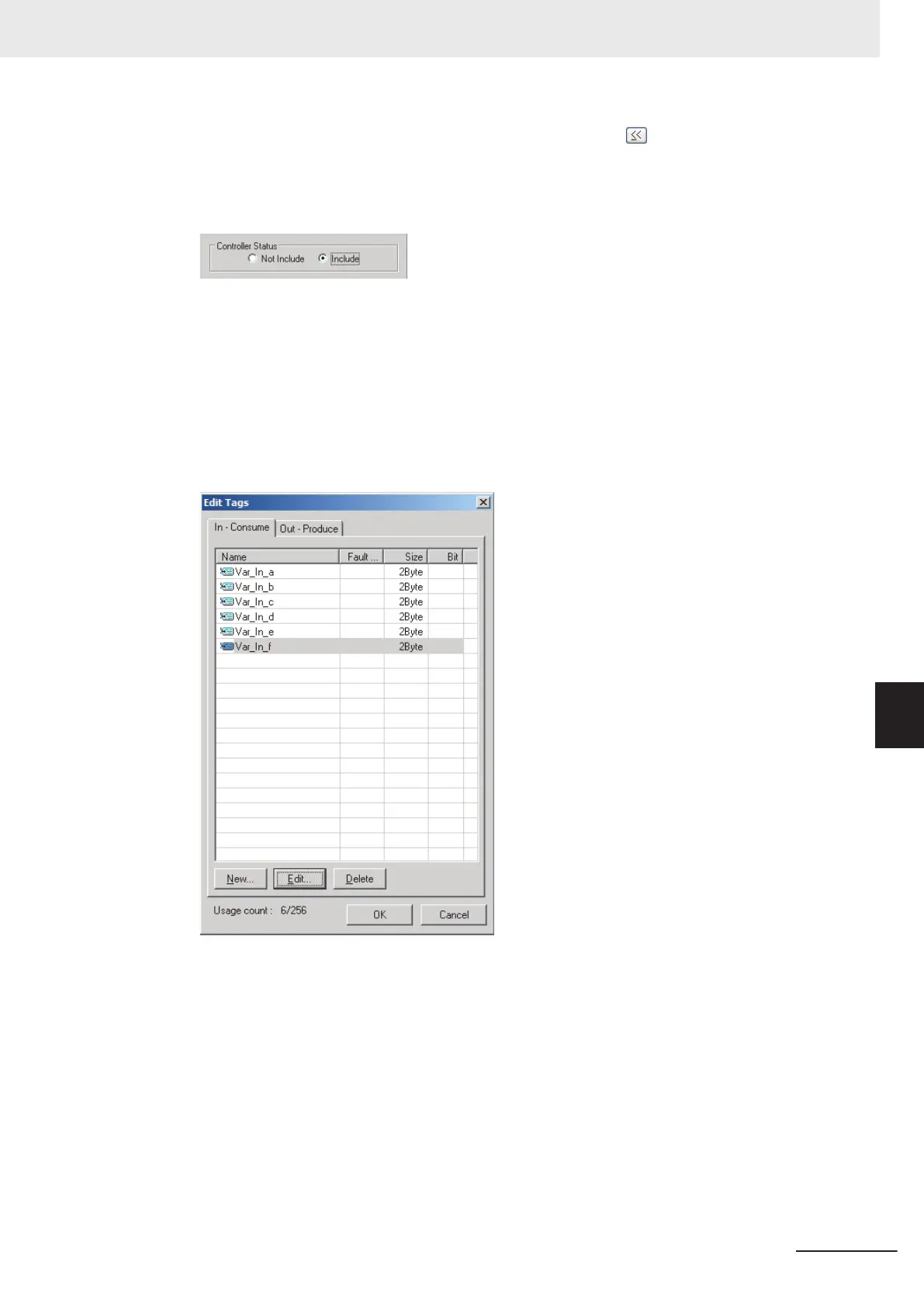

4 To include the Controller status in the tag set, select the Include Option for the Controller
Status at the upper-right corner of the Edit Tag Set Dialog Box.
5 To confirm the change, click the OK Button in the Edit T
ag Set Dialog Box.
6 Click the OK Button in the Edit Device Parameters Dialog Box.
7 If you want to just add a new tag and register it in an existing tag set, first register the new tag
by following steps 1 in Creating a Tag Set to 7 in Creating and Adding Tags. In this example,
input tags, Var_In_e and Var_In_f, are newly added.
8 After you register the tags, click the OK Button in the Edit T
ags Dialog Box.
9 At this point, a confirmation dialog box is displayed to check whether you want to use the regis-
tered tag names as tag set names. They are supposed to be added as tags in this case, so
click the No Button. Then, the tags are registered just as tags but not as tag sets.
7 Tag Data Link Functions
7-31
NJ/NX-series CPU Unit Built-in EtherNet/IP Port User’s Manual (W506)
7-2 Setting Tag Data Links
7
7-2-4 Creating Tags and Tag Sets
