Omron NX1P2 series Hardware User Manual

Process Description
Recording Power Turned ON and
Power Interrupted events
The Power Turned ON and Power Interrupted events are record-
ed.
*1. Refer to NJ/NX-series Troubleshooting Manual (Cat. No. W503) for information on the Power Supply Error
,
CPU Unit Error, Hardware Initialization Error, and System Initialization Error.

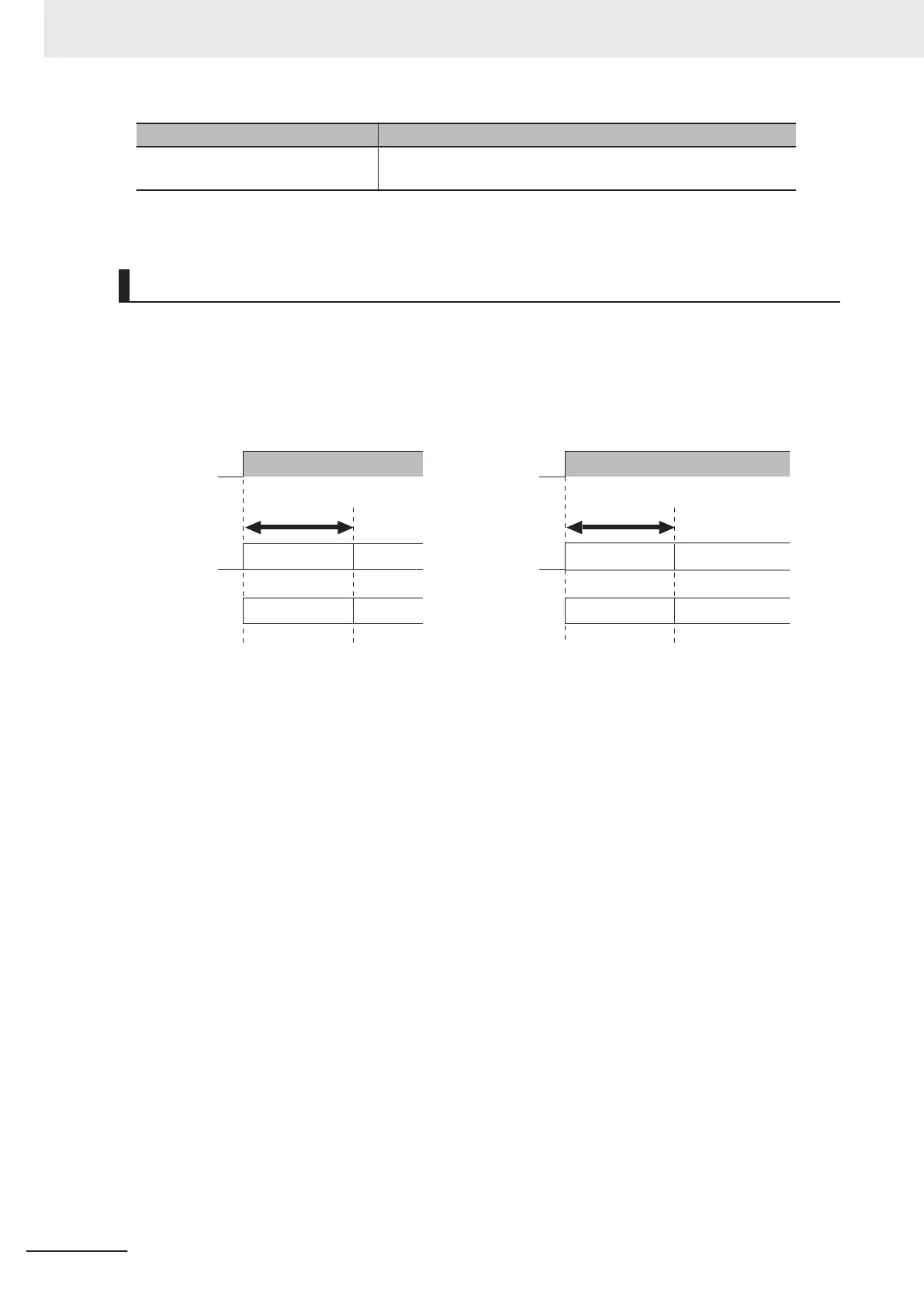

Operating Mode at Startup
The system will immediately enter RUN mode if RUN mode (default) is set as the startup operating
mode. The system will immediately enter PROGRAM mode if PROGRAM mode is set as the startup
operating mode.
• RUN Mode Set as Startup Mode • PROGRAM Mode Set as Startup Mode
CPU Unit Startup
Time at Power ON
CPU Unit Startup
Time at Power ON
Operating mode
Power supply
RUN mode
RUN indicator
Operating mode
Power supply
RUN indicatorFlashing Lit
Startup PROGRAM mode
Flashing Not lit
Startup
5 Installation and Wiring
5-4
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
