Omron NX1P2 series Hardware User Manual

2-1-1
EtherCAT Network Configuration

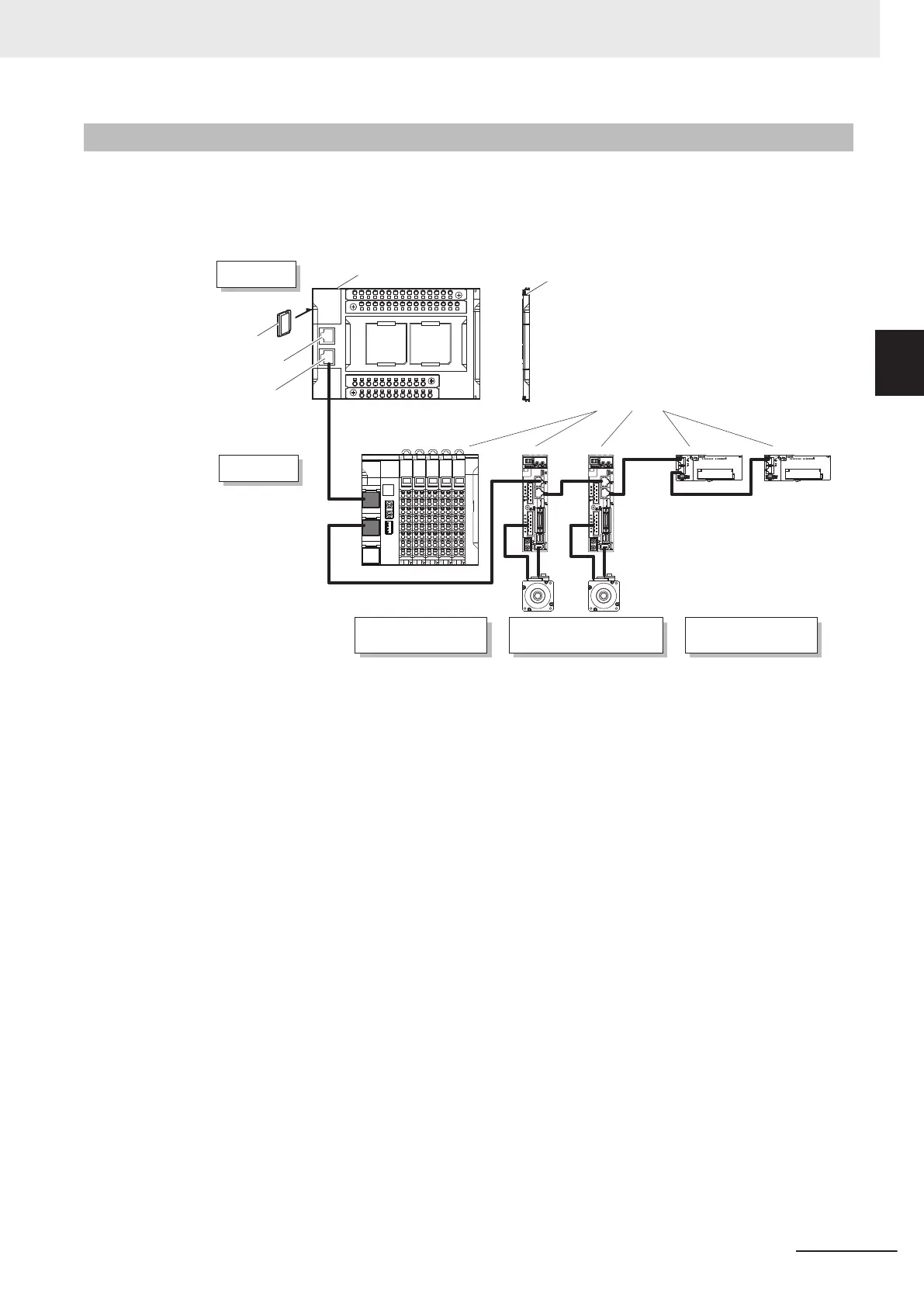

The EtherCAT network configuration consists of an NX-series NX1P2 CPU Unit, an End Cover, and
the EtherCA
T slaves.
Y
ou use the built-in EtherCAT port on the NX-series NX1P2 CPU Unit to connect EtherCAT slaves.
ADR ADR
NX-series NX1P2 CPU Unit
Built-in EtherNet/IP port
SD Memory Card
Built-in EtherCAT port
Slave Terminal
Servo Drives/
encoder input slaves
General-purpose
slaves
EtherCAT slaves
EtherCAT
CPU Rack
End Cover
For information on the system configuration of an EtherCAT network, refer to the NJ/NX-series CPU
Unit Built-in EtherCAT Port User
’s Manual (Cat. No. W505).
Refer to 2-1-2 NX Unit Configuration on page 2-4 for information on the CPU Unit and End Cover.
2 System Configuration
2-3
NX-series NX1P2 CPU Unit Hardware User’s Manual (W578)
2-1 Basic System Configuration
2
2-1-1 EtherCAT Network Configuration

Omron NX1P2 series Specifications

General

Model	NX1P2 Series
Manufacturer	Omron
Type	Controller
CPU Units	1
Program Capacity	5 MB
Data Memory Capacity	128 KB
Ethernet Ports	1
Serial Ports	1
Built-in EtherNet/IP Port	Yes
Built-in EtherCAT Port	Yes
Built-in USB Port	Yes
SD Memory Card Slot	Yes
USB Port	1
Power Supply Voltage	24 VDC
Programming Language	Ladder, Structured Text, Function Block Diagram
Communication Protocols	EtherNet/IP, EtherCAT, Serial (RS-232C)
